    1R12-090 Goodyear Rolling Lobe Air Spring ONTI 910-16P407 For INT’L/ NAVISTAR 1660581C1

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1R12-090
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    1R12-090 Goodyear Rolling Lobe Air Spring ONTI 910-16P407 For INT’L/ NAVISTAR 1660581C1

    1R12-090 Goodyear Rolling Lobe Air Spring ONTI 910-16P407 FIRESTONE W013589213 For INT’L/ NAVISTAR 1660581C1


    1R12-090 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

    1R12-090 Goodyear Air Spring-Rolling Air Bag 1R12-090 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-038, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.


    OEM Cross Number:


    Goodyear 1R12-090
    Goodyear Flexmember 566-24-3-038
    Goodyear Piston 566-20-7-079 STEEL


    AUTOMANN

    AB1DK23K-9213

    CONTI

    9 10-16 P 407 64262

    DAYTON

    352-9213

    FIRESTONE

    9213 W013589213

    FLEETRITE

    1R12-1060

    INT’L/ NAVISTAR1660581C1 1660581C1 501559C1 501559C2

    LOAD GUARD

    SC2048

    SPRINGRIDE

    1R12-1060

    TRIANGLE

    8407

    TRP

    AS92130

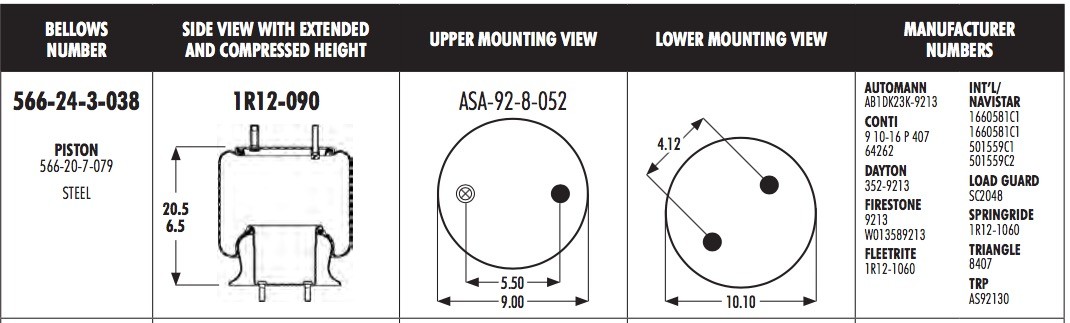

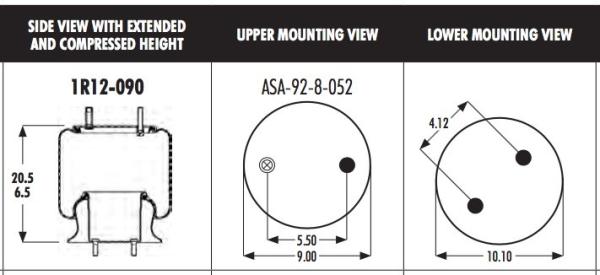

    Goodyear Number: 1R12-090

    Bellows type: rolling leaf

    Ultraman Bellow Number: 1DK23K

    Firestone bellows Number: 1T15M-6

    Goodyear Bellows Number: 566-24-3-008

    Contitech bellows Number: 9 10-16

    Triangle bellows Number: 6363

    Base plate/neutron type: steel

    Number of top plate holes/studs: 2

    Top plate diameter: 9

    Top plate C to C diameter: 5.5

    Base plate hole bolt Qyt: 2

    Diameter of bottom plate: 10.1

    Diameter of base plate C to C: 4.12

    Base plate part number: 566-20-7-079

    Bottom plate alignment: 45 degrees

    Bumper: No

    Bracket: Not applicable

    Minimum height: 6.5

    Maximum height: 20.5


    1R12-090 Goodyear Rolling Lobe Air Spring ONTI 910-16P407 For INT’L/ NAVISTAR 1660581C1


    5662420900000020092690Y1R12-0901R12-090
    1R12-09020035867N1R12-090 Rolling Lobe Air Spring1R12-090 Rolling Lobe Air Spring
    5662420920000020054290Y1R12-0921R12-092
    1R12-09220035868N1R12-092 Rolling Lobe Air Spring1R12-092 Rolling Lobe Air Spring
    5662420920001920092705YENIDINE YI 1R12-092ENIDINE YI 1R12-092
    1R12-09320035869N1R12-093 Rolling Lobe Air Spring1R12-093 Rolling Lobe Air Spring
    5662420950000020054292NSPR 1R12-095SPR 1R12-095
    1R12-09520035870N1R12-095 Rolling Lobe Air Spring1R12-095 Rolling Lobe Air Spring
    5662420950001920092721YENIDINE YI-1R12-095ENIDINE YI-1R12-095
    5662420970000020092731Y1R12-097 SERVICE ASSY FOR 1R12-0951R12-097 SERVICE ASSY FOR 1R12-095
    1R12-09720035871N1R12-097 Rolling Lobe Air Spring1R12-097 Rolling Lobe Air Spring
    5662421005500020470556Y1R12-1005 NABI1R12-1005 NABI
    5662421008500020524693Y1R12-10081R12-1008
    5662421017500420583677Y1R12-1017AN1R12-1017AN
    5662421025500420583678Y1R12-1025AN1R12-1025AN
    5662421028500020549486N1R12-10281R12-1028
    5662421029500420583718Y1R12-1029AN1R12-1029AN
    5662421030000020054293Y1R12-1031R12-103
    1R12-10320035872N1R12-103 Rolling Lobe Air Spring1R12-103 Rolling Lobe Air Spring
    5662421030001920092750YENIDINE YI-1R12-103ENIDINE YI-1R12-103
    5662421030500420583717Y1R12-1030AN1R12-1030AN
    5662421031500420583711Y1R12-1031AN1R12-1031AN
    5662421038000020682766Y1R12-1038 Oshkosh 39491441R12-1038 Oshkosh 3949144
    5662421039500020590055Y1R12-1039 VOL-VO 216270741R12-1039 VOL-VO 21627074
