2B9-240 Goodyear Air Spring IRESTONE W013587119 MCI 12C-1-36 PREVOST 63-0166

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-240

Air spring 63-0166 12C-1-36

Goodyear Number: 2B9-240

Bellows type: double

Ultraman Bellow Number:

Firestone bellows Number:

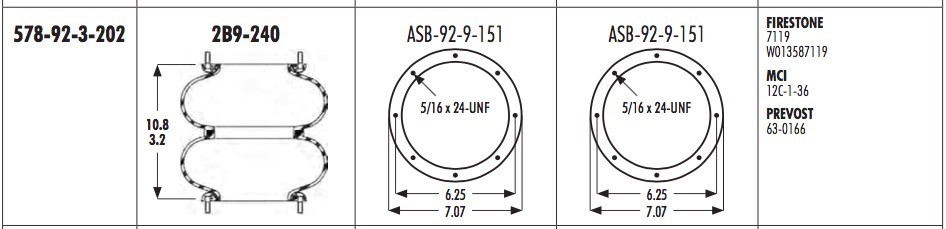

Goodyear Bellows Number: 578-92-3-202

Contitech bellows Number:

Triangle bellows Number:

Base plate/neutron type:

Number of top plate holes/studs: 8

Top plate diameter: 7.07

Top plate C to C diameter: 6.25

Base plate hole bolt Qyt: 8

Diameter of base plate: 7.07

Diameter of base plate C to C: 6.25

Base plate part number:

Bottom plate alignment: parallel

Bumper: No

bracket:

Minimum height: 3.2

Maximum height: 10.8

2B9-240 Goodyear Air Spring Technical parameters

❶Nut / Blind Nut

Top plate screw (nut) teeth: 1/2-13 or 1/2-20
The screw center distance of the top cover plate: 159 mm
Screw (nut) teeth of the bottom cover plate: 1/2-13 or 1/2-20
Screw center distance of bottom cover plate: 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 180 mm

Bottom Cover Plate Diameter: 180 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop
