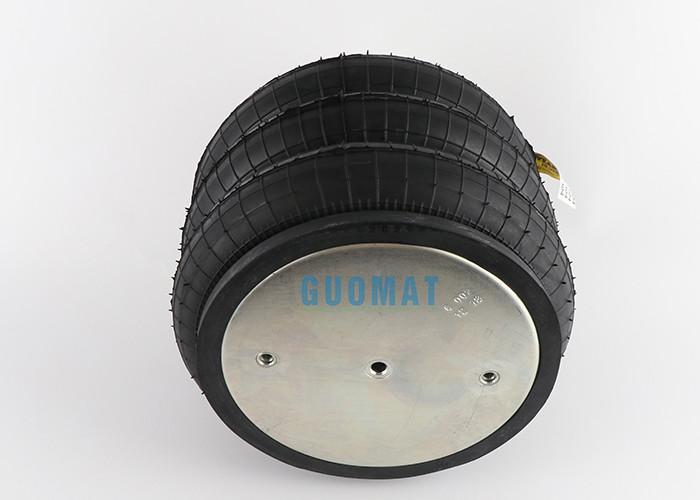

Contitech Air Spring FT 330-29 503 Triple Convoluted Air Springs For LOAD GUARD SC2132

Contitech Air Spring FT 330-29 503 refer to 3B12-304 Cross others OEM

Goodyear 3B12-304

Goodyear 3B12 304

Goodyear 3B12304

Goodyear Flexmember 578-93-3-100

Goodyear Flexmember 578 93 3 100

Goodyear Flexmember 578933100

Contitech FT 330-29 503

Contitech FT 330-29503

Contitech FT330-29 503

Conti tech FT 330-29 503

Conti tech FT 330-29503

Conti tech FT330-29 503

Contitech 64568

Conti tech 64568

Firestone: 8006；

Firestone:W01-358-8006

Firestone:W01 358 8006

Firestone:W013588006
Firestone: 8013；

Firestone:W01-358-8013

Firestone:W01 358 8013

Firestone:W013588013

Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132

Another similar kind 3B12-305, only Air Fitting Size (in) 3/4 is not the same.

Contitech Air Spring FT 330-29 503 refer to 3B12-304 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

The drawing of Goodyear Air Spring 3B12-304:

Goodyear® Goodyear air spring features

Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.

Modern road transportation places high demands on the comfort and efficiency of automobiles. STEMCO (Stemco) company's mission is to "make our roads safer", knowing user satisfaction, easy and comfortable user experience, is the foundation of the product, and fully consider commercial vehicles in product design The demanding requirements of trucks and customers, such as its super-buffered air springs, use the materials and design of the load to provide industry-leading vibration damping, light weight and long service life. In addition, the unparalleled comfort performance design makes the super-buffer air spring reduce driving fatigue, reduce parts wear and tear, shorten the failure time, and thus improve safety performance.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
