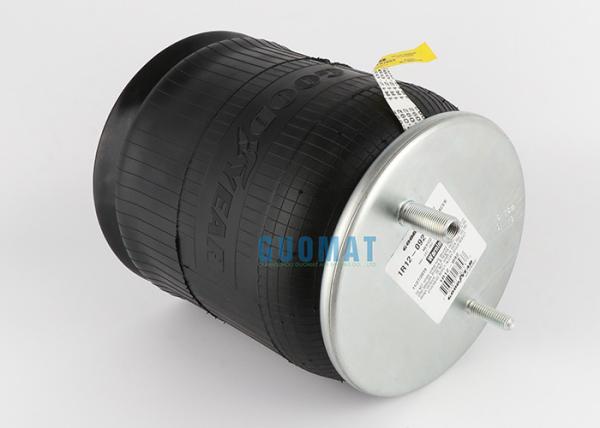

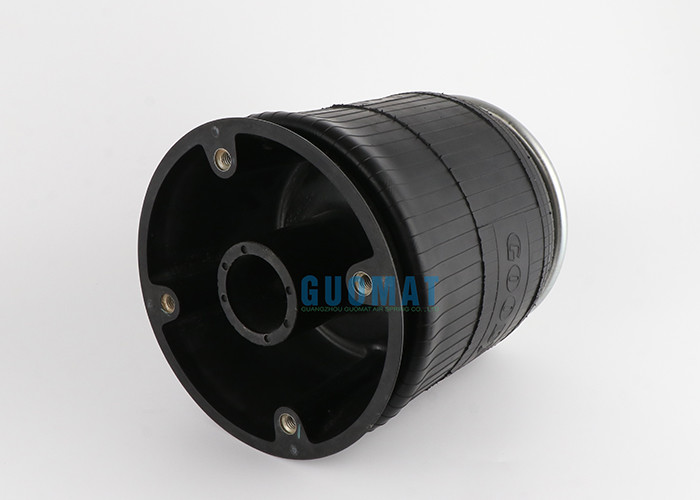

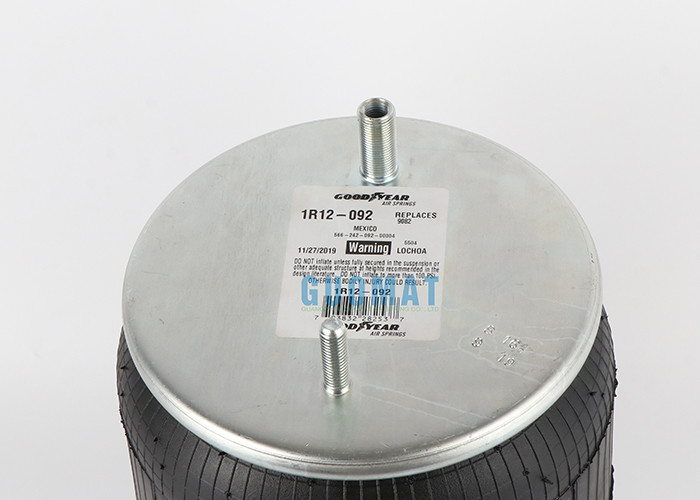

    Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1R12-092
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082

    Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082 For Ganning 15610

    Goodyear 1R12-092 OEM Cross Number:

    Goodyear 1R12-092;

    Goodyear 1R12 092;

    Goodyear 1R12092

    Goodyear BELLOWS NUMBER:566243163;

    Goodyear BELLOWS NUMBER:566-24-3-163;

    Goodyear BELLOWS NUMBER:566 24 3 163

    Firestone : W01-358-9082;

    Firestone :W01 358 9082;

    Firestone : W013589082
    Contitech:910-16P 310;

    Contitech 910 16P 310;

    Contitech 91016P310
    Taurus: KR 506-9082
    Airtech: 132302

    Airtech:341 56-05KPP

    Goodyear 1R12-092 OEM Suspension Supplier Number:

    SCHMITZ-ANHANGER 750999

    Neway . 905 570 06127137/54175
    Dayton:352-9082
    Ganning:15610
    HDA
    PMABG9082B
    R&S Truck
    : 1090217
    Loadguard
    : Sc2035
    Hutchens
    : H-9630-01
    Iriangle
    L 8310
    Watson&Chalin
    : AS-0011
    Ridewell
    : 10035890820
    RORIMeritor
    : MLF7114
    Hendrickson
    : 36514-7/S11651
    B 2066/B-12514-007

    Goodyear 1R12-092 Technical data

    Weight : 7,5 kg
    K009
    M10: max. 35 Nm
    M12: max. 70 Nm
    M22x1.5: max. 20 Nm

    GOODYEAR 1R12-092 Contitech 64269, Hendrickson S11651 S2066, FS W01-358-9082,: Warranty: 1 year: Manufacturer Part Number: RML 79082: UPC: 714119424380: Item description. The BlackTech Airbag 9082 is designed to provide years and thousands of miles of trouble-free service and is backed by the best warranty in the industry.

    The drawing of Goodyear 1R12-092

    Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082

    1R12 12" DIAMETER ROLLING LOBE
    Goodyear 12" Diameter Rolling Lobe Air Springs
    Part Number

    Top Plate

    Qty

    Bottom Piston

    Qty

    Top Plate

    Dia

    Bottom Plate

    Dia.

    Collapsed

    Height

    Flexmember Piston

    Piston

    Type

    1R12-014 2 1 7.7 10.1 7.8 566-24-3-019 566-20-7-011 A
    1R12-028 2 2 7.5 10.12 7.1 566-24-3-024 566-20-7-079 S
    1R12-047 2 1 7.7 10.1 7.8 566-24-3-019 566-20-7-011 A
    1R12-066 2 4 9 10.1 6.5 566-24-3-038 566-20-7-080 C
    1R12-069 3 1 9 9.8 7.5 566-24-3-038 566-20-7-235 C
    1R12-090 2 2 9 10.1 6.5 566-24-3-038 566-20-7-079 S
    1R12-092 2 4 9 10.1 7.7 566-24-3-038 566-20-7-080 C
    1R12-093 2 2 9 7.7 566-24-3-038
    1R12-095 2 1 9 9.25 4.4 566-24-3-067 566-20-7-014 S
    1R12-097 2 1 9 4.4 566-24-3-067
    1R12-103 2 4 9 10.13 9.4 566-24-3-066 566-20-7-006 A

    Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082

    56624210495004 1R12-1049 20672740 N 1R12-1049 Rolling Lobe Air Spring 1R12-1049 Rolling Lobe Air Spring
    56624210500000 56624210500000 20682658 Y 1R12-1050 PREVOST 630285 1R12-1050 PREVOST 630285
    56624210515000 56624210515000 20689480 Y VOL-VO 22039026 1R12-1051 VOL-VO 22039026 1R12-1051
    56624210515035 56624210515035 20689483 Y VOL-VO 22039026 1R12-1051 VOL-VO 22039026 1R12-1051
    56624210600000 56624210600000 20466778 Y 1R12-106 NOVABUS PROTOTYPE 1R12-106 NOVABUS PROTOTYPE
    56624210600083 1R12-1060 20682283 N 1R12-1060 FLT1R12090 1R12-1060 FLT1R12090
    56624210610083 1R12-1061 20682286 N 1R12-1061 FLT1R12095 1R12-1061 FLT1R12095
    56624210655004 1R12-1065 20713600 N 1R12-1065 1R12-1065
    56624210655084 1R12-1065 BULK 20713089 N 1R12-1065 BULK 1R12-1065 BULK
    56624210660000 56624210660000 20733971 Y 1R12-1066 PREVST 630286 Tag Blk Pck 1R12-1066 PREVST 630286 Tag Blk Pck
    56624210660004 56624210660004 20697200 Y 1R12-1066 Prevost Tag Axle 1R12-1066 Prevost Tag Axle
    56624210670000 56624210670000 20744274 Y 1R12-1067 1R12-1067
    56624210695083 56624210695083 20682230 Y 1R12-1069 FLT1R12069 1R12-1069 FLT1R12069
    56624210695085 1R12-1069 20746469 N 1R12-1069 SPRINGRIDE 1R12-069 1R12-1069 SPRINGRIDE 1R12-069
    56624210705083 56624210705083 20682232 Y 1R12-1070 FLT1R12092 1R12-1070 FLT1R12092
    56624210705085 1R12-1070 20746480 N 1R12-1070 SPRINGRIDE 1R12-092 1R12-1070 SPRINGRIDE 1R12-092
    56624210715083 56624210715083 20768122 Y 1R12-1071 FLT1R12256 1R12-1071 FLT1R12256
    56624210715085 1R12-1071 20746481 N 1R12-1071 SPRINGRIDE 1R12-256 1R12-1071 SPRINGRIDE 1R12-256
    56624210725083 56624210725083 20682235 Y 1R12-1072 FLT1R12303 1R12-1072 FLT1R12303
    56624210725085 1R12-1072 20746482 N 1R12-1072 SPRINGRIDE REPL 1R12-303 1R12-1072 SPRINGRIDE REPL 1R12-303
    56624210735083 56624210735083 20682236 Y 1R12-1073 FLT1R12375 1R12-1073 FLT1R12375
    56624210735085 1R12-1073 20746483 N 1R12-1073 SPRINGRIDE 1R12-375 1R12-1073 SPRINGRIDE 1R12-375
    56624210745083 56624210745083 20682288 Y 1R12-1074 FLT1R12401 1R12-1074 FLT1R12401
    56624210745085 1R12-1074 20746484 N 1R12-1074 SPRINGRIDE 1R12-401 1R12-1074 SPRINGRIDE 1R12-401
    56624210755083 56624210755083 20682237 Y 1R12-1075 FLT1R12403 1R12-1075 FLT1R12403
    56624210755085 1R12-1075 20746485 N 1R12-1075 SPRINGRIDE 1R12-403 1R12-1075 SPRINGRIDE 1R12-403
    56624210765083 56624210765083 20682289 Y 1R12-1076 FLT1R12404 1R12-1076 FLT1R12404
    56624210765085 1R12-1076 20746486 N 1R12-1076 SPRINGRIDE 1R12-404 1R12-1076 SPRINGRIDE 1R12-404
    56624210775083 56624210775083 20768121 Y 1R12-1077 FLT1R12432 1R12-1077 FLT1R12432
    56624210775085 1R12-1077 20746488 N 1R12-1077 SPRINGRIDE 1R12-432 1R12-1077 SPRINGRIDE 1R12-432
    56624210785083 56624210785083 20768123 Y 1R12-1078 FLT1R12508 1R12-1078 FLT1R12508
    56624210785085 1R12-1078 20746489 N 1R12-1078 SPRINGRIDE 1R12-508 1R12-1078 SPRINGRIDE 1R12-508
