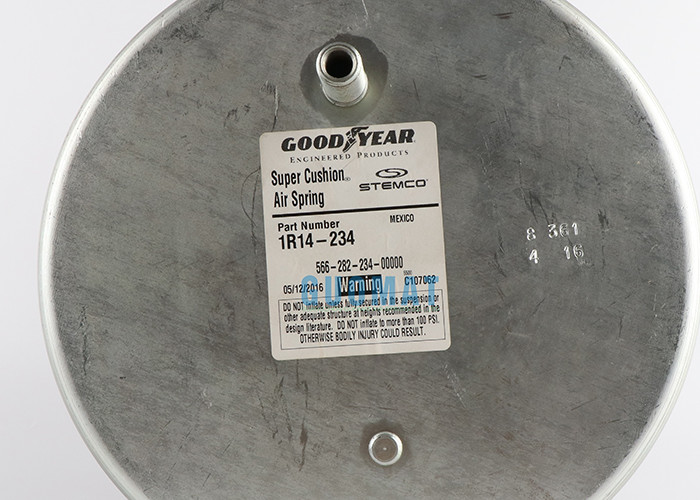

1R14-234 Goodyear Rolling Lobe Truck Air Suspension Springs Flexmember 566282234

OEM Cross Number:

GOODYEAR 1R14-234 / 1R14 234 / 1R14234
Flexmember Part number: 566-28-2-234

1R14-198 this kind of air spring is produced by Goodyear.

We imported this kind of air spring from Amercia.

1R14-234 Goodyear Technical parameters

❶Nut / Blind Nut

Combination Stud Air Fitting
Stud .3/4-16; Air Fitting- 1/4 NPTF

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/4-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : Air itting- 1/4 NPTF

❸ Cover Plate

Top Cover Plate Diameter: 287 mm

Bottom Piston Diameter:261 mm

❹Rubber Bellows

The Working Stroke : MIN 208 mm to MAX 673 mm

Maximum Height : 673 mm

Minimum Height :208 mm

Stroke Height : 465 mm

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
