1B9-215 Goodyear Industrial Air Spring Flex NO. 578912215 ENIDINE YI-1B9-215

OEM Original Equipment Manufacturer:

Goodyear 1B9-215

Goodyear 1B9215

Goodyear 1B9 215

Goodyear 578912215

Goodyear 578-91-2-215

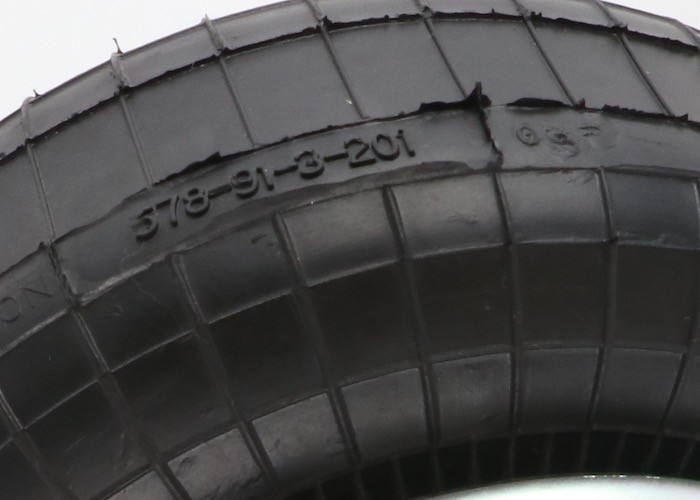

Goodyear 578 91 3 201

ENIDINE YI-1B9-215

ENIDINE YI1B9215

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT

Center Distance Between Nut and Air inlet: 44.5 mm

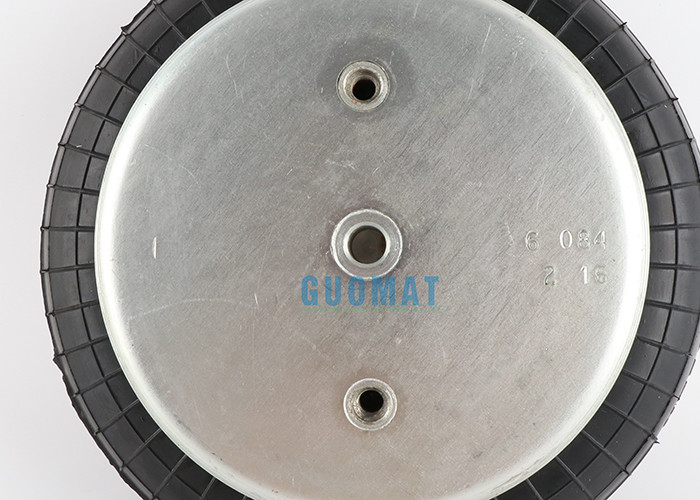

❸ Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm

❹Rubber Bellows

Rubber Bellows Diameter : 222 mm

Compressed Height: 100 mm / 4.1 inches

Maximum Height: 160 mm

Working Stroke : 60 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop

SPRING FEATURES

LOAD RANGE(ISOLATOR)........

.640-3900|b

DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

ASSEMBLY WE I GHT

FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in

1B9-215 Goodyear Cross OEM

Firestone:W01-M58-6374

Firestone:W01 M58 6374

Firestone:W01M586374

Conti Tech:FS 200-10 CI G 3/4

Conti Tech:FS200-10 CI G 3/4

Goodyear 1B9-215;1B9 215;1B9215

1B5-801 -Metric 2B9-251 R041B5-805 -Metric 2B8-850 -Metric

1B5-810 -Metric 2B9-273 -Metric 1B6-530 2B9-269 -Metric

1B6-531 2B12-344 -Metric 1B6-532 2B9-602 -Metric

1B6-535 2B14-362 1B7-540 2B14-354

1B7-544 2B14-465 -Metric 1B8-550 2B14-383

1B8-560 2B14-481 -Metric 1B9-202 2B14-468 -Metric

1B14-350 2B15-377 1B14-364 2B15-375

1B14-371 -Metric 3B12-320 -Metric 1B14-372 -Metric 3B12-300

1B15-375 3B14-374 2B6-530 3B12-345 -Metric

2B6-535 3B15-375 2B6-833 -Metric 3B14-409 -Metric

2B7-540 2B9-251R04 2B7-840 -Metric 2B8-850 -Metric

2B8-550
