    Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098

    Ask Lasest Price
    Brand Name : GOODYEAR
    Model Number : 1R13-239
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098

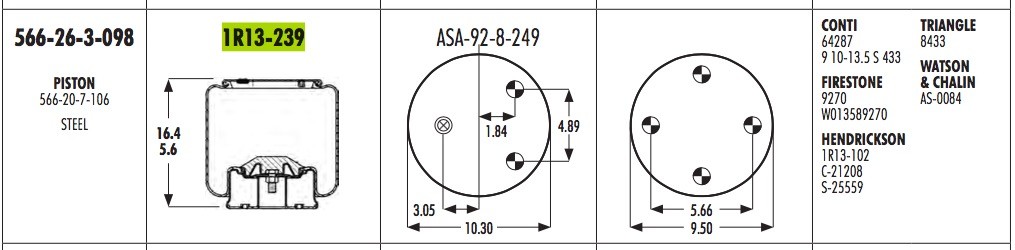

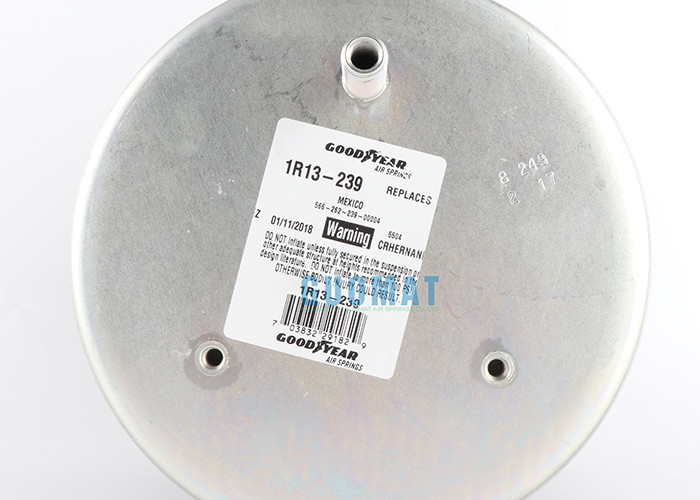

    Suspension Air Spring GOODYEAR 1R13-239 Rolling Lobe Bellows NO. 566263098

    1R13-239 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

    1R13-239 Goodyear Air Spring-Rolling Air Bag 1R13-239 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-26-3-098, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.

    OEM Cross Number:

    GOODYEAR 1R13-239; 1R13 239; 1R13239

    Bellows NO. 566262239; 566 26 2 239; 566-26-2-239

    Bellows NO. 566-26-3-098 ;566 26 3 098;566263098

    PISTON 566-20-7-106 STEEL

    Manufacturer GOODYEAR
    Brand GOODYEAR
    GOODYEAR Part NO. 1R13-239;
    GOODYEAR Part NO. 1R13 239;
    GOODYEAR Part NO. 1R13239

    GOODYEAR Bellows NO. 566262239;
    GOODYEAR Bellows NO. 566 26 2 239;
    GOODYEAR Bellows NO. 566-26-2-239

    GOODYEAR Bellows NO. 566-26-3-098 ;
    GOODYEAR Bellows NO. 566 26 3 098;
    GOODYEAR Bellows NO. 566263098

    GOODYEAR PISTON 566-20-7-106 STEEL

    OEM Suspension Supplier Number:

    Flexmember NO. 566262239

    GOODYEAR 1R13-239

    566-26-3-098 PISTON
    566-20-7-106 STEEL

    CONTI 64287
    CONTI 9 10-13 5 S 433
    FIRESTONE 9270
    FIRESTONE W013589270
    HENDRICKSON 1R13-102 C-21208 S-25559
    TRIANGLE 8433
    WATSON & CHALIN AS-0084

    Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098Goodyear 1R13-239 Suspension Air Spring Rolling Lobe Bellows 566263098

    Part Number

    Top Plate

    Qty

    Bottom Piston

    Qty

    Top Plate

    Dia

    Bottom Plate

    Dia.

    Collapsed

    Height

    Flexmember Piston

    Piston

    Type

    1R13-038 2 4 261.62 259.08 226.06 566-26-3-072 566-20-7-097 S
    1R13-039 2 4 261.62 259.08 195.58 566-26-3-051 566-20-7-096 S
    1R13-047 2 4 261.62 259.08 195.58 566-26-3-051 566-20-7-096 S
    1R13-048 2 4 203.2 226.06 566-26-3-072
    1R13-049 2 4 254 195.58 566-26-3-051
    1R13-053 2 4 261.62 256.54 152.4 566-26-3-051 566-20-7-036 A
    1R13-070 2 1 195.58 234.95 193.04 566-26-3-015 566-20-7-084 A
    1R13-075 2 4 261.62 256.54 152.4 566-26-3-051 566-20-7-036 A
    1R13-097 2 4 261.62 241.3 142.24 566-26-3-081 566-20-7-124 S
    1R13-109 2 4 261.62 241.3 142.24 566-26-3-081 566-20-7-124 S
    1R13-115 2 4 228.6 257.302 238.76 566-26-3-044 566-20-7-006 A
    1R13-116 2 4 228.6 257.302 226.06 566-26-3-044 566-20-7-006 A
    1R13-117 2 4 228.6 259.08 195.58 566-26-3-043 566-20-7-080 C
    1R13-118 1 4 254 259.08 182.88 566-26-3-068 566-20-7-127 S
    1R13-119 3 4 228.6 241.3 142.24 566-26-3-053 566-20-7-106 S
    1R13-120 2 4 287.02 299.72 144.78 566-26-3-054 566-20-7-076 A
    1R13-124 2 4 261.62 259.08 185.42 566-26-3-050 566-20-7-127 S
    1R13-130 2 1 261.62 241.3 116.84 566-26-3-055 566-20-7-210 C
    1R13-133 2 2 261.62 205.74 116.84 566-26-3-056 566-20-7-210 S
    1R13-152 2 1 261.62 248.92 190.5 566-26-3-071 566-20-7-235 C
    1R13-153 2 1 261.62 248.92 228.6 566-26-3-071 566-20-7-237 C
    1R13-155 2 1 261.62 248.92 228.6 566-26-3-071 566-20-7-106 S
    1R13-159 2 1 261.62 223.52 154.94 566-26-3-073 566-20-7-154 C
    1R13-176 2 1 264.16 223.52 231.14 566-26-3-078 566-20-7-154 C
    1R13-177 2 1 264.16 223.52 231.14 566-26-3-080 566-20-7-154 C
    1R13-181 2 4 261.62 241.3 142.24 566-26-3-051 566-20-7-124 S
    1R13-182 2 4 261.62 241.3 142.24 566-26-3-051 566-20-7-152 S
    1R13-188 2 1 264.16 251.46 198.12 566-26-3-078 566-20-7-152 C

    56626223900004 1R13-239 20618122 N 1R13-239 Rolling Lobe Air Spring 1R13-239 Rolling Lobe Air Spring
    56626224000038 56626224000038 20650635 Y 1R13-240 HENDRICKSON C-20127 1R13-240 HENDRICKSON C-20127
    56626224000041 56626224000041 20650636 Y 1R13-240 HENDRICKSON S-20127-24 1R13-240 HENDRICKSON S-20127-24
    56626224100000 56626224100000 20697587 Y VOLVO 21799881 1R13-241 VOLVO 21799881 1R13-241
    56626224100035 56626224100035 20697912 Y VOLVO 21799881 1R13-241 VOLVO 21799881 1R13-241
    56626224200000 56626224200000 20697655 Y 1R13-242 Mac-k truck 21799879 1R13-242 Mac-k truck 21799879
    56626224200049 56626224200049 20697914 N 1R13-242 Mac-k truck 21799879 1R13-242 Mac-k truck 21799879-ind part for A/M
    56626224400081 56626224400081 20668819 Y 1R13-244 JOHN DEERE AN401077 1R13-244 JOHN DEERE AN401077
    56626225400038 56626225400038 20696439 Y 1R13-254 HENDRICKSON C-20414 1R13-254 HENDRICKSON C-20414
    56626225600000 1R13-256 20712933 N 1R13-256 1R13-256
    56626225700083 56626225700083 20682253 Y 1R13-257 FLT1R13038 1R13-257 FLT1R13038
    56626225700085 1R13-257 20746495 N 1R13-257 SPRINGRIDE 1R13-038 1R13-257 SPRINGRIDE 1R13-038
    56626225800083 56626225800083 20682256 Y 1R13-258 FLT1R13118 1R13-258 FLT1R13118
    56626225800085 1R13-258 20746496 N 1R13-258 SPRINGRIDE 1R13-118 1R13-258 SPRINGRIDE 1R13-118
    56626225900083 56626225900083 20682257 Y 1R13-259 FLT1R13119 1R13-259 FLT1R13119
    56626225900085 1R13-259 20746497 N 1R13-259 SPRINGRIDE 1R13-119 1R13-259 SPRINGRIDE 1R13-119
    56626226000083 56626226000083 20768125 Y 1R13-260 FLT1R13124 1R13-260 FLT1R13124
    56626226000085 1R13-260 20746498 N 1R13-260 SPRINGRIDE 1R13-124 1R13-260 SPRINGRIDE 1R13-124
    56626226100083 56626226100083 20768126 Y 1R13-261 FLT1R13130 1R13-261 FLT1R13130
    56626226100085 1R13-261 20746500 N 1R13-261 SPRINGRIDE 1R13-130 1R13-261 SPRINGRIDE 1R13-130
    56626226200083 56626226200083 20682258 Y 1R13-262 FLT1R13159 1R13-262 FLT1R13159
    56626226200085 1R13-262 20746501 N 1R13-262 SPRINGRIDE 1R13-159 1R13-262 SPRINGRIDE 1R13-159
    56626226300083 56626226300083 20768127 Y 1R13-263 FLT1R13176 1R13-263 FLT1R13176
    56626226300085 1R13-263 20746502 N 1R13-263 SPRINGRIDE 1R13-176 1R13-263 SPRINGRIDE 1R13-176
    56626226400083 56626226400083 20682259 Y 1R13-264 FLT1R13177 1R13-264 FLT1R13177
    56626226400085 1R13-264 20746503 N 1R13-264 SPRINGRIDE 1R13-177 1R13-264 SPRINGRIDE 1R13-177
    56626226500000 56626226500000 20793036 Y 1R13-265 1R13-265
    56626226800090 56626226800090 20811213 Y C 1R13-039 C 1R13-039
    56626226800094 56626226800094 20806142 Y C 1R13-039 C 1R13-039
    56626226900094 56626226900094 20806144 Y C 1R13-239 C 1R13-239
    56626227000091 56626227000091 20806418 Y P 1R13-097 P 1R13-097
    56626227100091 56626227100091 20806474 Y P 1R13-181 P 1R13-181
    56626227200094 56626227200094 20811202 Y C 1R13-038 C 1R13-038
    56626227300090 56626227300090 20811203 Y C 1R13-109 C 1R13-109
    56626227400094 56626227400094 20811204 Y C 1R13-118 C 1R13-118
    56626227500090 56626227500090 20811205 Y C 1R13-119 C 1R13-119
    56626227500094 56626227500094 20811206 Y C 1R13-119 C 1R13-119
