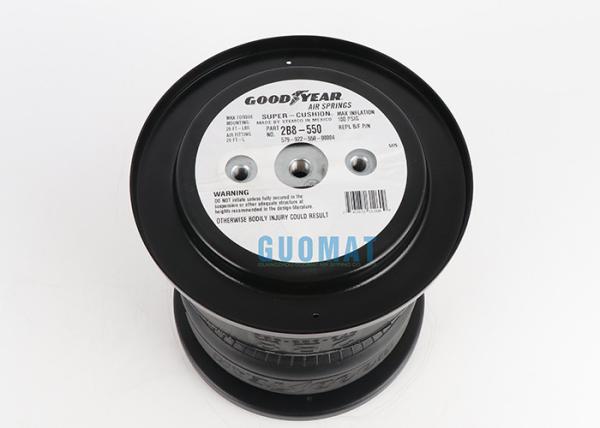

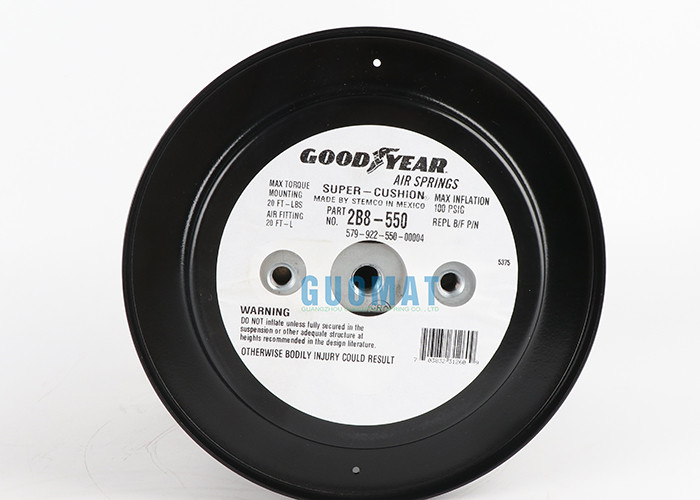

    2B8-550 Goodyear Air Spring Bellows 579922550 For Mac-k truck 57QK113

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B8-550
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    2B8-550 Goodyear Air Spring Bellows 579922550 For Mac-k truck 57QK113

    2B8-550 Goodyear Industrial Air Spring Bellows No. 579922550 For Mac-k truck 57QK113


    2B8-550 Goodyear OEM Original Equipment Manufacturer:


    Goodyear part number: 2B8-550 / 2B8553 / 2B8 550
    Goodyear Bellows No .: 579-92-3-550;579 92 2 550;579922550


    ❶Nuts/Blind Nuts
    Top plate screw (nut) teeth: 2 X M8X1.25
    Screw center distance of top cover plate: 52 mm
    Bottom cover screw (nut) teeth: 2 X M8X1.25
    Screw center distance of bottom cover: 52 mm
    ❷Blowhole/Air inlet/Air accessories
    Blowhole/air inlet: M12X1.5
    ❸Cover
    Top cover plate diameter (width): 135 mm / 5.31 inches
    Bottom cover diameter (width): 135 mm / 5.31 inches
    Top plate number: 3450
    Bottom cover plate number: 3436
    Bell rubber bellows
    Natural diameter of rubber bellows: 189 mm
    Natural height of rubber bellows: 177 mm
    Compression height: 79 mm/3.12 inches
    Design height: 178mm-203mm/7-8 inches
    Maximum diameter: 218 mm / 8.6 inches
    Bellows number: 26
    ❺Bumper block/buffer block
    Without bumper block
    ❻Belt ring/belt ring
    Has a belt hoop: a belt hoop


    Roof hole/stud: 3 pcs
    Floor hole/stud: 2 pcs
    Top plate diameter: 5.03 inch
    Base plate diameter: 5.03 inch
    Folding height: 2.9 inch
    Flexible members: 579-92-3-550
    Goodyear Trim: 2B8550
    Crossover
    Triangle spring: 4509
    Firestone: 7325
    Kangdi Technology: 64601
    US carrier: 8003006
    Neway: 57007325
    batco: 10-97325
    Mike: 227QS-32
    Mike: 57QK113
    American Airlines: 8003-006
    UCF / Impex: AB-2B8-550
    Midland / Haldex: CS208550
    Euclid / Meritor Aftermarket: E-FS7325
    ContiTech: FD120-17509
    Euclid / Meritor Aftermarket: FS7325
    BWP: M-3557
    American Airlines Number: 8003-006
    Hendrickson Trailer ID: S-14395
    Mark Number: 227QS-32
    Triangle part number: 4509
    Triangle bellows number: 6392
    Watson & Charin ID: AS-0030
    Sauer Code: P10-754


    2B8-550 Goodyear Cross OEM


    BELLOW NO.COMPLETE NO.COMPLETE NO.
    AIRKRAFT 114050AIRKRAFT 113067AIRKRAFT 113068
    CONTITECH 603 NCONTITECH FD 120-20 509FIRESTONE W01-358-7327
    FIRESTONE FLEX 26FIRESTONE W01-358-7325GOODYEAR 2B8-552
    FIRESTONE W01 358 0142GOODYEAR 2B8-550
    PIRELLI 26

    2B8-550 Goodyear Description


    2B8-550 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your trucks, trailers and buses. Bellows air springs provide a constant level of traction and provide trouble-free service.

    Goodyear airbags can protect cargo and provide horizontal transportation and long-term service. Bellows air springs provide quiet, cushioned driving and have a longer life than steel springs due to less vibration. The driver feels more comfortable while riding, reduces fatigue, and stays alert. In addition, the cargo has better shock and vibration resistance.
