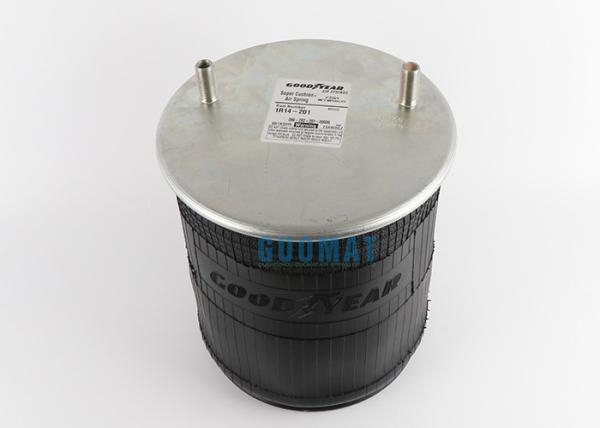

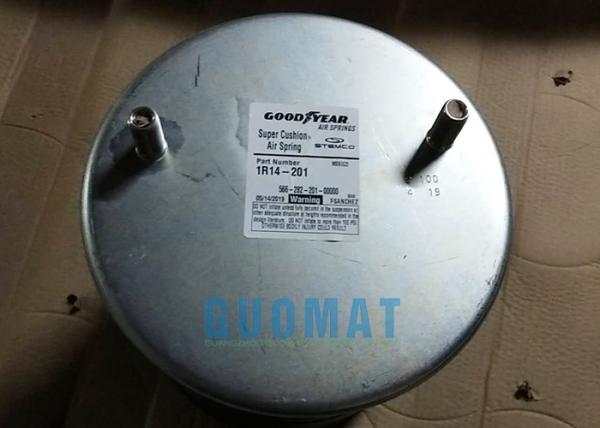

    1R14-201 CONTITECH 67625 Goodyear Air Spring 566282201

    Ask Lasest Price
    Brand Name : GOODYEAR
    Model Number : 1R14-201
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    1R14-201 CONTITECH 67625 Goodyear Air Spring 566282201

    1R14-201 GOODYEAR Air Spring Flexi Member 566282201 Suspension Air Spring​

    OEM Cross Number:

    GOODYEAR 1R14-201

    Flexi Member 566282201

    CONTITECH 11 10.5-21 A
    965
    67625

    OEM Suspension Supplier Number:

    The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

    screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

    Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

    Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

    Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

    Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

    Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

    Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.

    1R14-201 CONTITECH 67625 Goodyear Air Spring 5662822011R14-201 CONTITECH 67625 Goodyear Air Spring 566282201

    1R14-201 CONTITECH 67625 Goodyear Air Spring 5662822011R14-201 CONTITECH 67625 Goodyear Air Spring 566282201

    Goodyear 14" 1R14 Diameter Rolling Lobe Air Springs
    Part Number

    Top Plate

    Qty

    Bottom Piston

    Qty

    Top Plate

    Dia

    Bottom Plate

    Dia.

    Collapsed

    Height

    Flexmember Piston

    Piston

    Type

    1R14-018 5 4 11.3 10.2 7.7 566-28-3-021 566-20-7-096 S
    1R14-019 5 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-024 5 4 11.3 7.7 566-28-3-021
    1R14-025 5 4 11.3 10.2 8.9 566-28-3-020
    1R14-026 5 4 11.3 10.2 7.3 566-28-3-021 566-20-7-096 S
    1R14-027 5 4 11.3 7.3 566-28-3-021
    1R14-028 5 4 11.3 10.2 7.7 566-28-3-021 566-20-7-096 S
    1R14-029 5 4 11.3 7.7 566-28-3-021
    1R14-030 5 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-031 5 4 11.3 8.9 566-28-3-020
    1R14-037 5 4 11.3 11.8 5.7 566-28-3-015 566-20-7-076 A
    1R14-038 5 4 11.3 11.8 5.7 566-28-3-015 566-20-7-076 A
    1R14-039 2 4 11.3 11.8 5.7 566-28-3-015 566-20-7-076 A
    1R14-042 2 4 11.3 11.8 5.7 566-28-3-015 566-20-7-076 A
    1R14-045 2 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-052 2 4 11.3 11.8 5.7 566-28-3-015 566-20-7-076 A
    1R14-060 2 4 11.3 8.9 566-28-3-020
    1R14-101 5 4 11.3 10.1 8.8 566-28-3-021 566-20-7-080 C
    1R14-106 3 4 11.3 9.5 5.5 566-28-3-021 566-20-7-188 S
    1R14-112 2 1 11.3 10 4.9 566-28-3-024 566-20-7-050 A
    1R14-113 2 4 11.3 10.1 9.5 566-28-3-030 566-20-7-181 S
    1R14-115 5 4 11.3 10.2 8.9 566-28-3-021 566-20-7-097 S
    1R14-124 5 4 11.3 10.1 8.8 566-28-3-021 566-20-7-217 C
    1R14-127 2 4 11.3 10.1 10.1 566-28-3-031 566-20-7-181 S
    1R14-130 2 4 11.3 10.2 7.2 566-28-3-021 566-20-7-096 S
    1R14-137 2 4 11.3 10.2 7.2 566-28-3-021 566-20-7-096 S
    1R14-141 3 4 11.3 9.5 9.7 566-28-3-021 566-20-7-189 S
    1R14-147 2 4 11.3 11.8 5.6 566-28-3-015 566-20-7-076 A
    1R14-154 2 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-159 2 4 11.3 10.2 7.7 566-28-3-021 566-20-7-096 S
    1R14-160 2 4 11.3 10.2 8.4 566-28-3-021 566-20-7-097 S
    1R14-170 2 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-172 2 1 11.4 9.9 5.9 566-28-3-042 566-20-7-152 C
    1R14-174 2 4 11.3 10.2 8.9 566-28-3-020 566-20-7-097 S
    1R14-175 2 4 11.3 11.8 5.1 566-28-3-042 566-20-7-076 A
