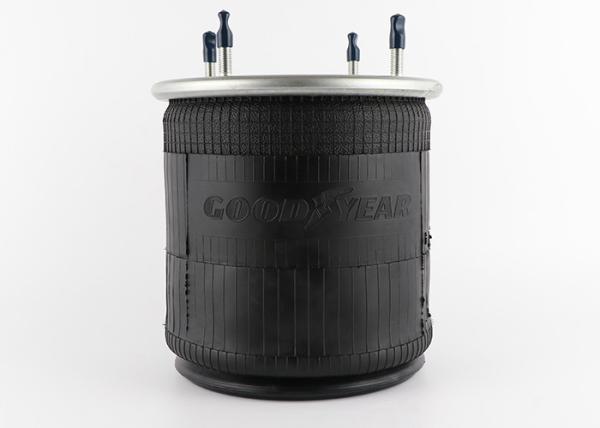

1R14-028 Goodyear Air Spring Rolling Lobe Airbag Ridewell S2573C Truck Air Springs

Goodyear 1R14-028 Specifications:

Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 10.2
Folding height: 7.7
Flexible members: 566-28-3-021
Piston: 566-20-7-096
Piston type: S
Goodyear Trim: 1R14028

Columbia TLR
Dayton
352-9177
Firestone
9177
9179
HDA PMABG9177B

Hendrickson B-2065
Load Guard
SC2046
Navistar
554779C1
Neway
AR-1115-1-F
90557003
R&S Truck
1090216
Ridewell
S-2573C S-4695C S-4797C 1003589177C Taurus AS621-9177 AS621-9179 Triangle 8316
8366
Watson &Chalin AS-0010

OEM Suspension Supplier Number:

Triangle spring: 8316
Triangle spring: 8366
Firestone: 9177
Firestone: 9179
Kangdi Technology: 64342
Kangdi Technology: 64345
R & D truck: 1090216
Neway: 90557003
Goodyear Airlines: 566283011
Reedwell: 1003589177C
Batman: 10-99177
Kangdi Technology: 1110.5-17A316
Navistar / IHC: 554779C1
UCF / Impex: AB-1R14-028
T.W. Distribution: AB9177
Neway: AR-1115-1-F
Watson & Chalin: AS0010
Taurus: AS621-9177
Taurus: AS621-9179
Dallas Spring: AS9177
Midland / Haldex: CS114028
Euclid / Meritor Aftermarket: E-FS9177
Euclid / Meritor Aftermarket: E-FS9179
Euclid / Meritor Aftermarket: FS9177
Euclid / Meritor Aftermarket: FS9179
BWP: M-3521
HD USA: PMABG-9177B
Reedwell: S2573C
Reedwell: S4695C
Reedwell: S4797C
Leland: SC2046

Air spring supplier: ContiTech

Reference: 4810N04

Competitor Or supplier number: 1110517A316

Air spring supplier: Goodyear

Reference: 566283021

Competitor Or supplier number: 1R14028

Air spring supplier: Triangle

Reference number: 6365

Competitor Or supplier Number: 4317

Air spring supplier: Triangle

Competitor Or supplier ID: 8316

Air Suspension supplier: brakes and wheels

Competitor Or supplier number: M3521

Air Spring Supplier: Dayton Parts

Competitor Or supplier ID: 3529177

Air Suspension supplier: Hendrickson

FSIP OEM: W014559177

Air Suspension supplier: Hendrickson Trailer

Competitor Or supplier number: S2065

Air Suspension supplier: SAF Netherlands

Competitor Or supplier ID: 90557003

Air Suspension supplier: Leland

Competitor Or supplier Number: SC2046

Air Suspension supplier: Navistar

Competitor Or supplier ID: 554779C1

Air Suspension supplier: SAF Netherlands

Competitor Or supplier ID: 90557003

Firestone Airspring style: 1T19L7

Air Suspension supplier: SAF Netherlands

Competitor Or supplier ID: AR11151F

Air Suspension supplier: SAF Netherlands

FSIP OEM: W016759130

Air Suspension supplier: R&S truck and body

Competitor Or supplier number: 1090216

Air Suspension supplier: Ridewell

Competitor Or supplier ID: 1003589177C

Air Suspension supplier: Tuthill Technology

Competitor Or supplier ID: 6426

Air Suspension supplier: VOL-VO

Competitor Or supplier ID: 3130494

Firestone trim: w013589177

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
