1R13-118 Goodyear Air Spring Rolling Lobe Airbag Truck Air Springs For HENDRICKSON C20127
Description of 1R13-118 Goodyear Air Spring:
Goodyear's sleeve type air spring will use a flexible member without internal molded beads. By pinching the rubber bladder material between the end and the external crimping ring, and then adjusting it to an appropriate diameter, connect the flexible part to the end of the cover plate of the holder and the bottom of the piston. When inflating and damping, The 1R13-118 Goodyear air spring will move up and down along the bottom piston, which has a good shock absorption effect. The vibration isolation rate is over 95%.
Product Information
Manufacturer: Goodyear
Brand name: Goodyear
Product weight:11 kilograms
Package size: 29 x 29 x 38 cm
Model: 1R13-118
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
OEM REFERENCES
CONTITECH 10 10-21 P 434**SA / 1010-21P434**SA / 1010-21 P434
CONTITECH 101021P434 / 1010-21P434
GOODYEAR 566-26-3-039 / 566 26 3 039 / 566263039
GOODYEAR 1R13-081 / 1R13 081 / 1R13081
GOODYEAR 1R13-144 / 1R13 144 / 1R13144
GOODYEAR 566-26-2-039 / 566 26 2 039 / 566262039
Conti Tech: 64394
FIRESTONE 9580；
FIRESTONE 9262；
Firestone 8625；
Firestone 8626；
Firestone 8627；
FIRESTONE W01-358-9580；
FIRESTONE W01-358-9262；
Firestone W01-358-8625；
Firestone W01-358-8626；
Firestone W01-358-8627；
FIRESTONE 1T15VLT105 / 1T15VLT105 / 1T15VLT105
FIRESTONE W013589580 / W013589580 / W013589580
AIRTECH 3008101K
VEHICLE OEM REFERENCES
MERITOR MLF9025
HENDRICKSON C20127
ERF 1398550
GRANNING LYNX 15993
HENDRICKSON S20127
Triangle Spring 8434
Westar Industries 87-79580
AUTOMANN AB1DK25C-9580
UCF/IMPEX AB-1R13-118
Dallas Spring AS9580
SIRCO AS-9580
The Air Spring For SIRCO AS-9580 Fits to
Midland/Haldex CS113118
Euclid/Meritor Aftermarket E-FS9262
Euclid/Meritor Aftermarket E-FS9580
Euclid/Meritor Aftermarket FS9262
Euclid/Meritor Aftermarket FS9580
Notes:
1. Unless otherwise stated, all dimensions are included.
2. The components are designed to work between -67" F and +158" F (-55C & +70®C)
And store after -65" F.
3. The assembly leak test was carried out according to GMS XII-301.
4. The air spring must be limited to the maximum by the equipment provided by the customer
Extension height
5. The minimum pressure under the maximum expansion pressure shall not be less than 5 PSIG.
6. Warning: Do not inflate completely
Suspension or other adequate structure. Don't inflate
Over 100 PSIG at any height.
Otherwise, it may cause personal injury.
The Goodyear's of Air Spring
Goodyear's sleeve-type air springs will use a flexible component without internal molded beads. Connect the flexure to the end of the holder by pinching the material between the end and the outer crimp ring and then adjusting it to the appropriate diameter. Goodyear sleeve airbag springs have many applications. The most common uses are passenger springs for cars and trucks, isolators and springs for truck cab suspensions and seat springs, and many common industrial applications. 1R13-118 Goodyear Super Air Cushion® Air Spring will provide your truck, trailer or bus with long-term durability and air suspension productivity, and provide years of maintenance-free service
ABOUT US...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
Other kinds of goodyear:
| Goodyear 13" 1R13 Diameter Rolling Lobe Air Springs |
| | | | | | | | | |
| Part Number | Top Plate Qty | Bottom Piston Qty | Top Plate Dia | Bottom Plate Dia. | Collapsed Height | Flexmember | Piston | Piston Type |
| 1R13-038 | 2 | 4 | 10.3 | 10.2 | 8.9 | 566-26-3-072 | 566-20-7-097 | S |
| 1R13-039 | 2 | 4 | 10.3 | 10.2 | 7.7 | 566-26-3-051 | 566-20-7-096 | S |
| 1R13-047 | 2 | 4 | 10.3 | 10.2 | 7.7 | 566-26-3-051 | 566-20-7-096 | S |
| 1R13-048 | 2 | 4 | 8 | — | 8.9 | 566-26-3-072 | — | — |
| 1R13-049 | 2 | 4 | 10 | — | 7.7 | 566-26-3-051 | — | — |
| 1R13-053 | 2 | 4 | 10.3 | 10.1 | 6 | 566-26-3-051 | 566-20-7-036 | A |
| 1R13-070 | 2 | 1 | 7.7 | 9.25 | 7.6 | 566-26-3-015 | 566-20-7-084 | A |
| 1R13-075 | 2 | 4 | 10.3 | 10.1 | 6 | 566-26-3-051 | 566-20-7-036 | A |
| 1R13-097 | 2 | 4 | 10.3 | 9.5 | 5.6 | 566-26-3-081 | 566-20-7-124 | S |
| 1R13-109 | 2 | 4 | 10.3 | 9.5 | 5.6 | 566-26-3-081 | 566-20-7-124 | S |
| 1R13-115 | 2 | 4 | 9 | 10.13 | 9.4 | 566-26-3-044 | 566-20-7-006 | A |
| 1R13-116 | 2 | 4 | 9 | 10.13 | 8.9 | 566-26-3-044 | 566-20-7-006 | A |
| 1R13-117 | 2 | 4 | 9 | 10.2 | 7.7 | 566-26-3-043 | 566-20-7-080 | C |

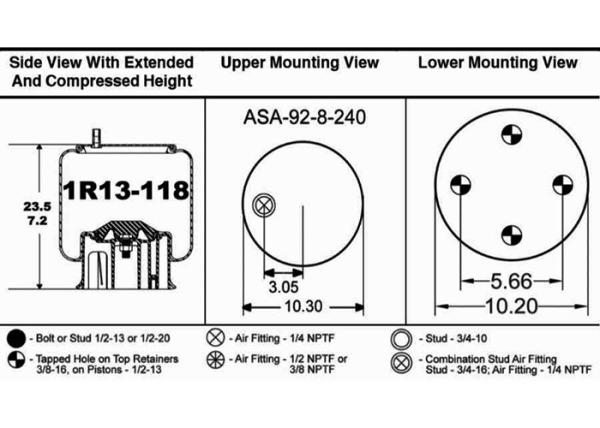

| 1R13-118 | 1 | 4 | 10 | 10.2 | 7.2 | 566-26-3-068 | 566-20-7-127 | S |
| 1R13-119 | 3 | 4 | 9 | 9.5 | 5.6 | 566-26-3-053 | 566-20-7-106 | S |
| 1R13-120 | 2 | 4 | 11.3 | 11.8 | 5.7 | 566-26-3-054 | 566-20-7-076 | A |
| 1R13-124 | 2 | 4 | 10.3 | 10.2 | 7.3 | 566-26-3-050 | 566-20-7-127 | S |
| 1R13-130 | 2 | 1 | 10.3 | 9.5 | 4.6 | 566-26-3-055 | 566-20-7-210 | C |
| 1R13-133 | 2 | 2 | 10.3 | 8.1 | 4.6 | 566-26-3-056 | 566-20-7-210 | S |
| 1R13-152 | 2 | 1 | 10.3 | 9.8 | 7.5 | 566-26-3-071 | 566-20-7-235 | C |
| 1R13-153 | 2 | 1 | 10.3 | 9.8 | 9 | 566-26-3-071 | 566-20-7-237 | C |
| 1R13-155 | 2 | 1 | 10.3 | 9.8 | 9 | 566-26-3-071 | 566-20-7-106 | S |
| 1R13-159 | 2 | 1 | 10.3 | 8.8 | 6.1 | 566-26-3-073 | 566-20-7-154 | C |
| 1R13-176 | 2 | 1 | 10.4 | 8.8 | 9.1 | 566-26-3-078 | 566-20-7-154 | C |
| 1R13-177 | 2 | 1 | 10.4 | 8.8 | 9.1 | 566-26-3-080 | 566-20-7-154 | C |
| 1R13-181 | 2 | 4 | 10.3 | 9.5 | 5.6 | 566-26-3-051 | 566-20-7-124 | S |
| 1R13-182 | 2 | 4 | 10.3 | 9.5 | 5.6 | 566-26-3-051 | 566-20-7-152 | S |
| 1R13-188 | 2 | 1 | 10.4 | 9.9 | 7.8 | 566-26-3-078 | 566-20-7-152 | C |
