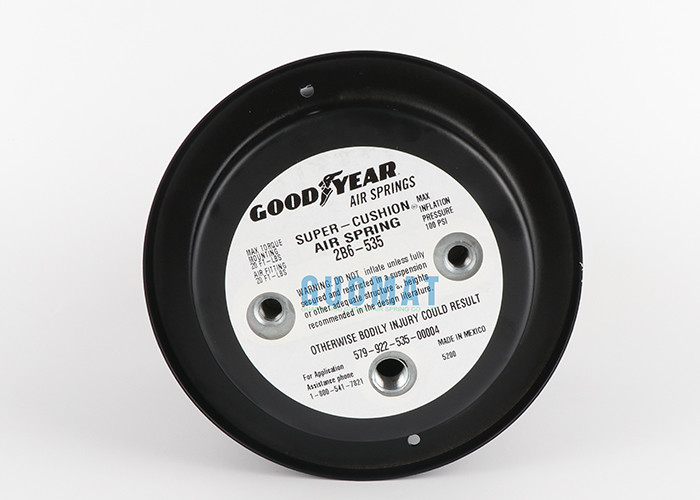

2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size: 24*24*24 CM
Roof hole / stud: 3
Floor hole / stud: 2
Top plate diameter: 4.15=105 mm
Base plate diameter: 4.15=105 mm
Folding height: 2.8
Flexible members: 579-92-3-515
piston:
Piston type:-
Goodyear Trim: 2B6535

Refer to

CONTITECH FD110-15766 /

CONTITECH FD110-15 766

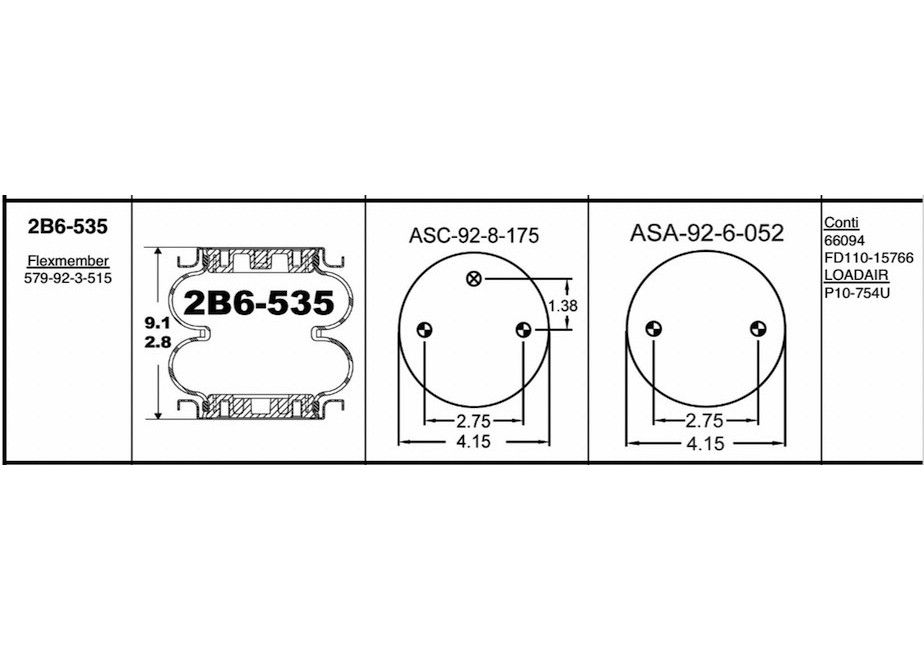

2B6-535 Goodyear Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm /2.75 inch

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 70 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 105 mm

Bottom Cover Plate Diameter: 105 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 178 mm

Rubber Bellows Natural Diameter :150 mm

The Working Stroke : MIN 71 mm to MAX 231 mm

Maximum Height : 231 mm

Minimum Height :71mm

Stroke Height : 160mm

Max OD @ 100 psi (Inches):178mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Application of GOODYEAR 2B6-535
