Air Suspension with Two Spring Guide Arms for Gap-free Design for Single-, Dual- and Multi-axle Semi-trailers

Specifications and Detail Technical Parameters

1,suspension Model:GSL220-GSL390

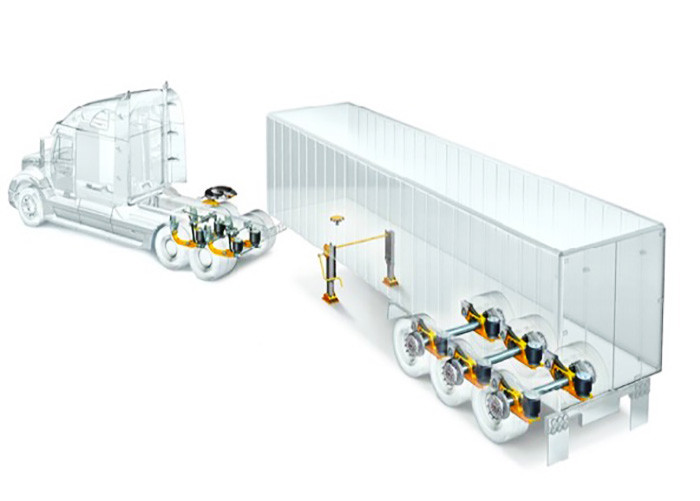

Clearance design of two spring guide arms, double air spring compound single arm mechanism, air spring and leaf spring bearings, installation of tilt shock absorbers reduces wear and tear and prolongs service life. Vertically designed elastic elements can be matched with a variety of hook shafts , Suitable for single axle, double axle and multi axle semi-trailer. (The first or third axle of a three-axle trailer can enhance the function.) High load, high rigidity, low frequency, more anti-roll, more comfortable ride, and lower cost.

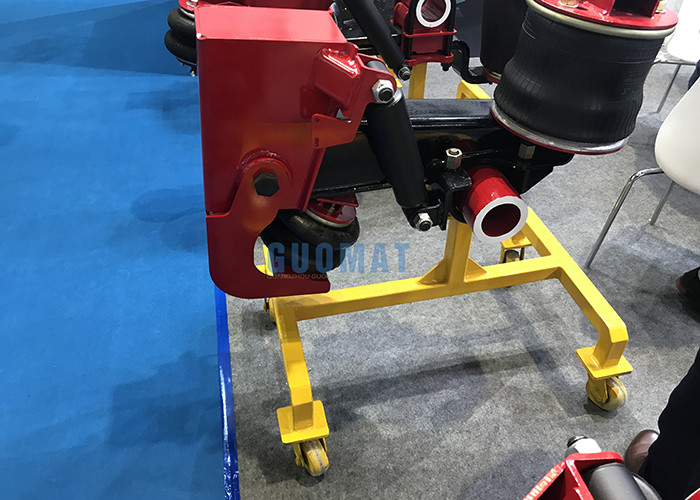

2,suspension Model: GSL350-GSL550
Z-arm structure design, double air spring composite single arm mechanism, air spring and leaf spring are installed together to install tilt shock absorbers, the rolling mill reduces the extended service life of the police, and the vertically designed elastic element can be used with a variety of suspension methods. Axles, twin axles and multi axle semi-trailers. The first axle or the third axle of the three-axle trailer can be used for lifting. The whole set of air suspension has light weight, high load, high rigidity, low frequency, stronger anti-rolling ability, higher ride comfort and lower cost.

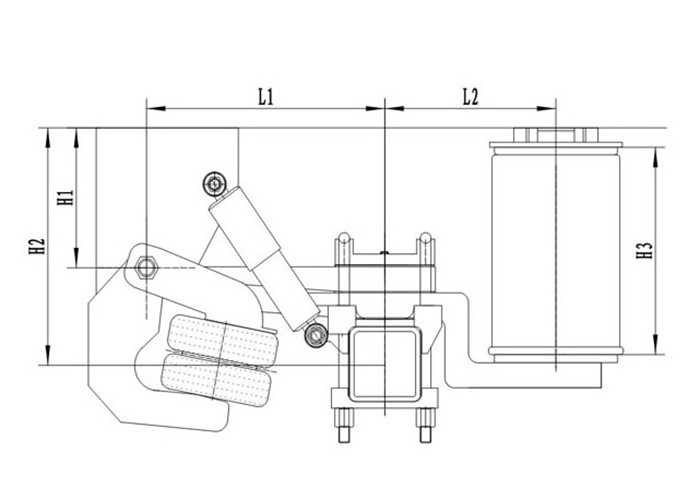

Technical parameters Model FH(mm) Uniaxial maximum load Air Spring specifications Air Spring the total stroke Recommended wheelbase Applicable axle specifications GTSG1013 220-330 13t 1T9039 100 1050-1250mm Circular shaftφ127mm Square shaft150×150 GTSG1013A 350-550 13t 1T941 180mm 1150-1250mm Circular shaftφ127mm Square shaft150×150 GTSG1013A 350-550 13t 1T941 180mm 1250-1350mm Circular shaftφ127mm Square shaft150×150

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
