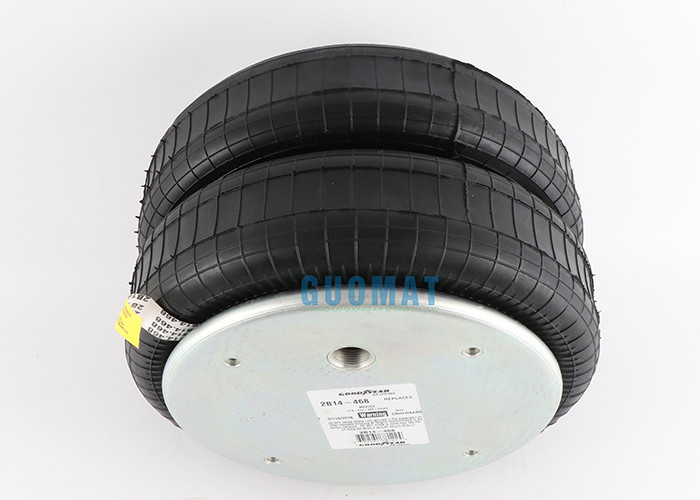

W01-M58-6377 Industrial Air Spring Air Bag Kits 578923356 Goodyear Part 2B14-468

Goodyear Part 2B14-468 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth :4pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate :159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm

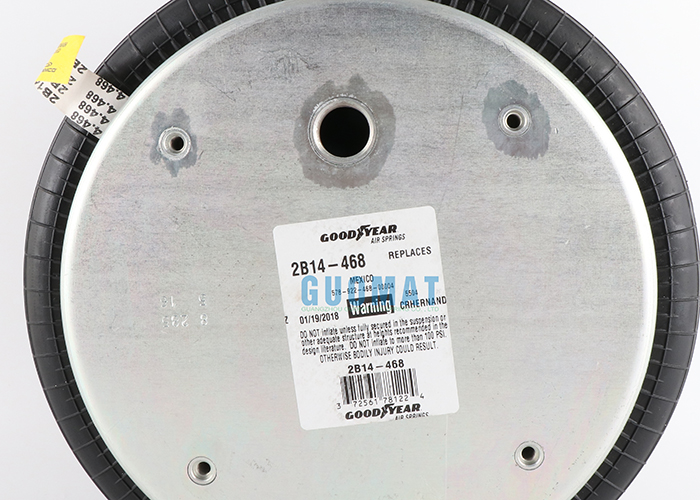

❸ Cover Plate

Top Cover Plate Diameter: 287mm

Bottom Cover Plate Diameter: 287mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 406 mm

Rubber Bellows Natural Diameter : 320 mm

The Working Stroke : MIN 77 mm to MAX 355 mm

Maximum Height : 355mm

Minimum Height :77mm

Stroke Height : 278 mm

❺ Bumper block / Buffer block

Without or With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

Firestone 22-1,
Goodyear Part # 2B14-468;2B14 468;2B14468

Goodyear bellows # 578-92-3-356;578 92 3 356;578923356
Firestone W01-M58-6377;W01 M58 6377;W01M586377

The usal kinds of Double Convolution Air Springs

Style 21-2 Two Ply

Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.
