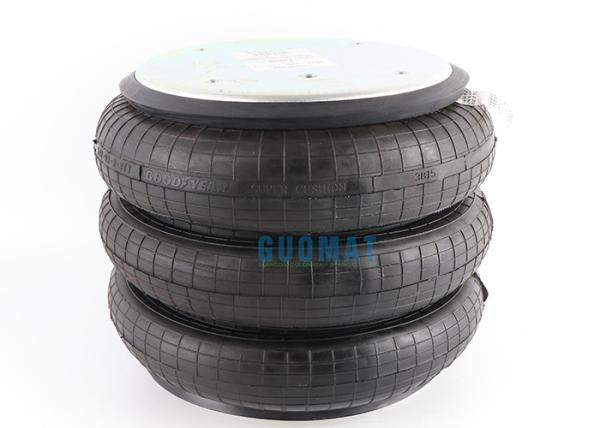

3B15-375 Goodyear 1 /4"-18 NPTF Air Fitting Durable Triple Convoluted Air Bag

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no Piece of Girdle Hoop

GUOMAT air springs are extremely durable and precise
Engineering design and cost-effectiveness for a variety of actuation and vibration isolation applications.
GUOMAT air springs have a time-tested design that combines
Fabric-reinforced or natural rubber flexible member structure
And corrosion-resistant end fixtures for superior quality and performance
can. As an actuator, GUOMAT air springs are available in linear or angular
motion.
Compared to cylinders, these air springs (air shock absorbers) provide
Desired stroke compression height ratio, and they can accept multiple actuation media
Quality, such as air, water, nitrogen, or antifreeze. As an isolator,

GUOMAT air springs effectively reduce the harmful effects of vibration. They can
To simultaneously isolate vibration and adjust the load height, and allow
Keep-induced vibration isolation under load.
GUOMAT offers a variety of air springs and air alkaline shakers
Type to meet your actuation or isolation needs. Single, double and trilogy
Face, film and sleeve types are available in a variety of sizes
Your specific installation requires an end retainer style.
In addition to our range of air springs, we also offer a variety of industrial shock absorbers
, Wire rope isolators, and many other energy and vibration absorption solutions
Solution.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
