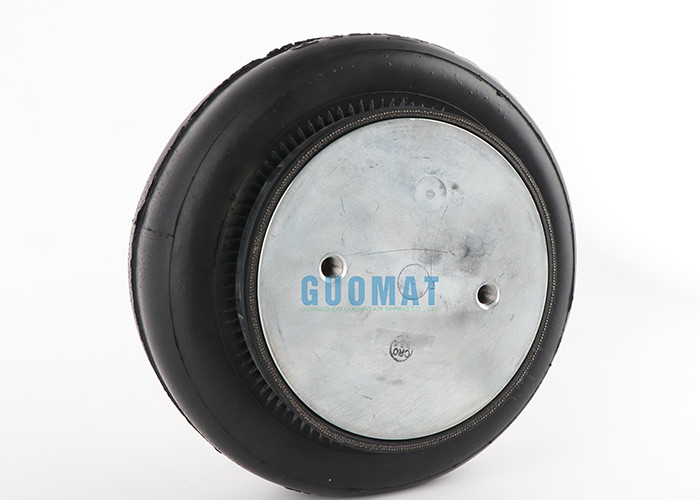

    1B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-532

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1B8-560
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    1B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-532

    1B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-532


    Goodyear 1B8-560 Specifications and Technical Data

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
    Screw Center Distance of Top Cover Plate : 70 mm
    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 70 mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4-18NPTF
    Screw Center Distance Between Gas Hole and Nut : 35 mm

    Cover Plate
    Top Cover Plate Diameter: 135 mm
    Bottom Cover Plate Diameter: 135 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: 240 mm
    Rubber Bellows Natural Diameter : 225 mm
    The Working Stroke : MIN 60 mm to MAX 180 mm
    Maximum Height : 180 mm
    Minimum Height :50 mm
    Stroke Height : 120mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :no One Pieces of Girdle Hoop

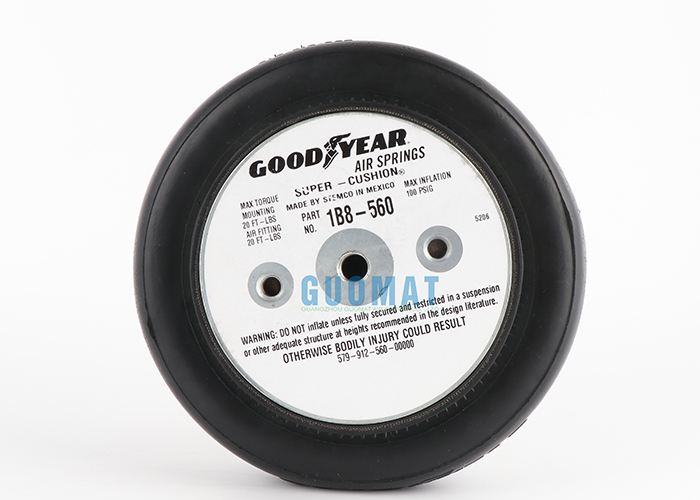

    Goodyear 1B8-560

    Goodyear 579-91-3-532
    SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560


    Goodyear 1B8-157,

    Goodyear 1B8-159,

    Goodyear 1B8-560,

    Goodyear 1B8-563

    Goodyear 1B8-562

    Goodyear 1B8-564


    refet to Firestone Wo1-358-7598; 116B1116B-1
    refet to Firestone W01-358-7598, W013587598, W01-358-7598,

    refet to Contitech FS 120-12 CI 1/4 NPT


    Airmount / Airstroke
    (2) 2.75 center distance
    3 / 8-16UNC, 1/4 "NPT AIR INLET
    Air Springs from ITT Enidine Inc.
    Single Convolute Bellow Air Spring YI-1B8-560

    Maximum stroke: 3.20 inches
    System natural frequency: 2.33 Hz
    Height range: 4 to 6-1 / 2 inches
    100 psi diameter: 9.4 inches
    Spring style: single-turn curved surface type
    End plate diameter: 5 inches
    Force at 100 psi maximum stroke: 1600 lbs
    Center distance between tapped holes: 2-3 / 4 inches
    Load range at 100 psi: 1900 to 3300 pounds
    Air port thread standard: UNC
    Bumper Type: No
    Air port thread diameter: 1/4 inch
    Air port thread type: 1/4 UNC


    1B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-5321B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-532Go


    Part NumberUsable StrokeMax Dia @ 100 psi InMin Ext Height InchesMax Ext Height InchesBumper100 psi80 psi60 psi40 psiAir Fitting Size (in)
    1B5-5002.05.71.83.8NO5704252901751/4
    1B5-5022.05.71.83.8NO5704252901753/4
    1B5-5032.05.71.83.8NO5704252901751/4 TV
    IB5-5103.06.01.84.8NO5303902601451/4
    IB5-5123.06.01.84.8NO5303902601453/4
    1B5-5204.06.51.85.8NO445305180801/4
    1B5-5214.06.51.85.8NO445305180803/4
    1B6-5303.06.51.84.8NO8806354402351/4
    1B6-5313.06.51.84.8NO8806354402351/4 OS
    1B6-5322.56.52.34.8YES8806354402351/4 OS
    1B6-5355.37.01.87.1NO7805103201651/4
    1B6-5365.37.01.87.1NO7805103201651/4OS
    1B6-5384.87.02.37.1YES7805103201651/4 OS
    1B7-5403.87.71.85.6NO445290130301/4
    1B7-5413.87.71.85.6NO445290130301/4 OS
    1B7-5423.37.72.35.6YES445290130301/4 OS
    1B8-5503.88.71.85.6NO8155253151101/4
    1B8-5513.88.71.85.6NO8155253151101/2
    1B8-5523.88.71.85.6NO8155253151103/4
    1B8-5533.88.71.85.6NO8155253151101/4 OS
    1B8-5543.38.72.35.6YES8155253151101/4 OS
    1B8-5605.59.41.87.3NO11057507501301/4
    1B8-5625.59.41.87.3NO11057507501303/4
    1B8-5635.59.41.87.3NO11057507501301/4 OS
    1B8-5645.09.42.37.3YES11057507501301/4 OS
    1B9-2012.711.03.25.9YES157512158755601/4 OS
    1B9-2023.611.02.35.9N0157512158755601/4 OS
    1B9-2043.611.02.35.9N0157512158755601/2 OS
    1B9-2052.711.03.25.9YES157512158755601/2 OS
    1B9-2073.611.02.35.9N0157512158755603/4 OS
    1B9-2082.711.03.25.9YES157512158755603/4 OS
    1B12-30113.24.62.67.2YES36402710184010951/4 OS
    1B12-3013.24.92.37.2NO36402710184010953/4 OS
