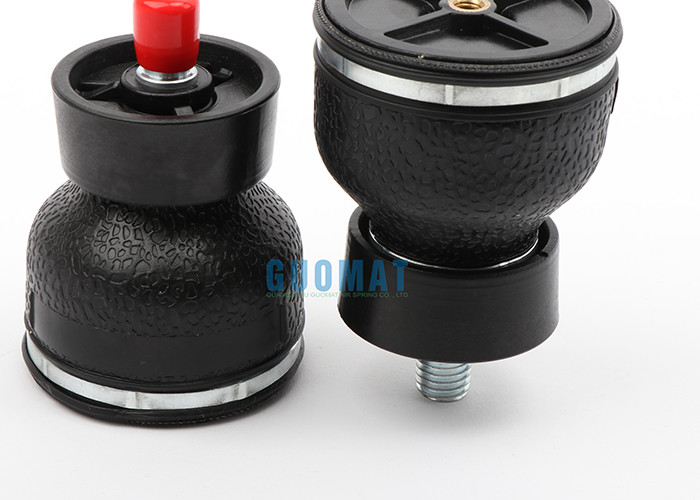

W02-M58-3001 Cabin Seat Automotive Air Suspension With Brass Blind Stud MAX O.D. 86 mm

Cross OEM Of this item:

GUOMAT:G3001

Firestone Rubber bellows NO.:1M1A-0
Firestone NO.:W02-M58-3001
Firestone NO.:W02M583001
Firestone NO.: W02 M58 3001

Style 1M1A-0

Two Ply Rubber Bellows

Description Assembly Order No.
Blind nut, 1/8 NPT,
plastic stud W02-M58-3000
Blind nut, 1/8 NPT,
brass stud W02-M58-3001
Blind nut, 1/8 NPT, brass
stud, stainless steel ring W02-M58-3005

Descripition and Specifications Of G3001:

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pc X 1 pcXM8 x 1.25

Screw Center Distance of Top Cover Plate :0 mm

Bottom Cover Plate Screw (Nut) Tooth : 1 pcXM16 x 2

Screw Center Distance of Bottom Cover Plate :together mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/8 BSP

Screw Center Distance Between Gas Hole and Nut : together mm

❸ Cover Plate

Top Cover Plate Diameter: 73 mm

Bottom Cover Plate Diameter: 61 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 86 mm

Rubber Bellows Natural Diameter : 63.5 mm

The Working Stroke : MIN 40 mm to MAX 89 mm

Maximum Height : 89 mm

Minimum Height :40mm

Stroke Height : 49mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop
