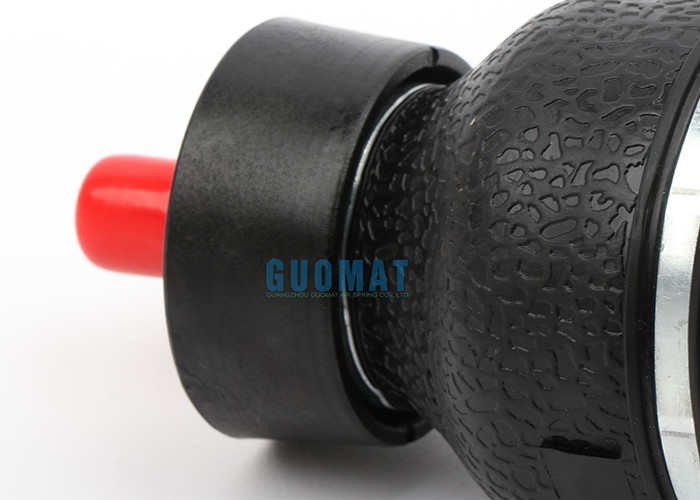

    1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : G3013
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal and Others
    Supply Ability : 10000 pcs / week
    Delivery Time : 2 - 8 Work Days
    • Product Details
    • Company Profile

    1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine

    1S3013 Goodyear Rear Suspension Air Bags Air Spring For Motorcycle or Machine


    Cross OEM:


    GUOMAT Part Number:G3014

    Goodyear Part Number.:1S3-013

    Goodyear Part Number:1S3013

    Goodyear Part Number:1S3 013

    Contitech Part Number:SZ37-6

    Contitech Part NumberSZ37 6

    Contitech Part Number:SZ376

    Firestone Part Number.:W02-358-3000

    Firestone Part Number:W023583000

    Firestone Part Number:W02 358 3000



    Descripition and Specifications:


    G.Weight: 0.6 KG

    N.Weight: 0.265 KG

    Goodyear#:1S3-013

    PISTON NUMBER: ASC-06-7-017 / ASC067017 /ASC 06 7 017
    Ripple type: sleeve
    Automann Bellow#:
    Firestone Part Number.:W02-358-3000
    Goodyear Bellow#:
    Contitech Bellow#:
    Triangle Bellows#:
    Base plate / Pison type:
    Number of roof holes/studs: 1
    Upper Plate OD : 3.2 (in.) / 81.28 MM
    Top plate C to C diameter: N / A.
    Bottom hole stud Qyt: 1
    Base Plate OD: 2.40 (in.) / 60.96 MM
    Base plate C to C diameter:
    Backplane section#:
    Backplane alignment: parallel
    Bumper: no
    bracket:
    Minimum height: 1.5 inches /38.1 MM
    Maximum height: 3.6 inches /91.44 MM

    Extended Height : 3.60 (in.) / 91.44 MM


    Detailed parameters:


    Vibration isolation - dynamic characteristic values
    Design height H: recommended 2.37 inch
    Pressure p [psi]406080100120Vol.V [in.³]
    Force (Load) [lbf]2313274395536779
    Spring rate [lbf/in]1742413123784429
    Natural frequency [Hz]2.82.72.72.62.69

    Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi]406080100120Vol.V [in.³]
    Height H [inch] 3.002.23.144.85.712
    Height H [inch] 2.502.73.64.65.66.59.8
    Height H [inch] 2.003.14.15.16.27.37.3
    Height H [inch] 1.503.44.55.66.77.94.9

    Application of 1S3-013 air spring :


    1S3-013 Goodyear Sleeve Air Spring. Super-Cushion®AirSprings offers new high productivity and long life for your trucks, trailers and buses. Sleeve Air Springs provides continuous comfort and trouble-free service.


    This air spring was originally designed to be used in the Harley-Davidson shock, the current amount is relatively large and Halley motor. But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this airbag is completely replaceable the original one 1S3-013.


    The sleeve air spring uses a flexible member without internal molded beads. The flexible member is attached to the end retainer by clamping material between the end retainer and the outer crimp ring, and then the outer crimp ring is forged to the appropriate diameter. Sleeve air springs are commonly used in the following applications:
    Passenger car and truck spring
    Isolator for truck cab suspension
    Seat spring (cab spring) for trucks and buses
    Actuators and isolators for industrial applications


    1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine

    1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine
