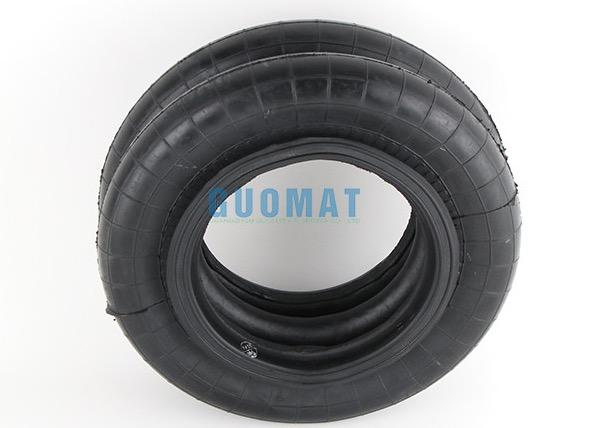

    Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B12X2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2

    Rubber Bellows GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2 Air Spring


    Specifications and Detail Technical Parameters:Style12" x2


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2


    Cover Plate

    Top Cover Plate Diameter (Width): 210 mm


    Bottom Cover Plate Diameter (Width): 210 mm


    Material top and bottom plate:Steel


    Rubber Bellows


    Stroke of Rubber Bellows:75mm-300m


    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Rubber material Standard up to 70°C natural rubber


    Other kinds of model air bellows:


    12 X 2
    W01-R58-4044
    2,17 KG
    DUNLOP SP 256NB

    W01-R58-4081 (2 3/4" x3)
    W01-R58-4051 Dunlop Style 4,5 " x 2
    W01-R58-4052 - (6" x1 steel)
    Firestone W01-R58-4057 - (10 x1 steel)
    Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
    Firestone W01-R58-4090 - 8"x2 Butyl
    Firestone W01-R58-4055 - 8x2 Steel
    Firestone W01-R58-4060 (12 x1 steel)

    Firestone W01-R58-4077 (12 x1 Herclor )
    Firestone W01-R58-4056 -8"x3 Steel
    Firestone W01-R58-4062 (12 x3 Steel)
    Firestone W01-R58-4065 (14 1/2 x3 Steel)
    Firestone W01-R58-4098 (14 1/2 x1 Herclor)
    Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
    Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
    Firestone W01-R58-4078 - (6 x1 Alu )
    Firestone W01-R58-4070 - (6 x 2 Alu )
    Firestone W01-R58-4053 - (6 x 2 Steel )
    Firestone W01-R58-4059 - (10" x3 steel)
    Firestone W01-R58-4054 - 8x1 Steel
    Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
    Spar Part Bellow 8"x2 W01-R58-4045
    Firestone W01-R58-4064 -14" 1/2 x2
    Firestone W01-R58-4063 -14 1/2 x1
    Bellow only 8" x 1 -- W01-R58-4085
    Firestone W01-R58-4048
    W01-R58-4080 - 2 3/4" x 2
    Firestone W01-R58-4060- 12" x2 steel
    Firestone W01-R58-4070 - (6 x 2 V2a )
    Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
    Firestone W01-R58-4050
    W01-R58-4080 - 2 3/4" x 1


    Other models of ZF air springs:


    Air Spring NO.LoadDesign H.Min. H.Safe ElongationFull Stroke
    350110ZF-26513065
    250110ZF-26513065
    500110ZF-211400508013050
    280110ZF-23009656012565
    200110ZF-21270656012565
    160110ZF-2676656012565
    140110ZF-2450656012565
    164152MF-380180
    110085MF-36011050
    580180ZF-3100220120
    420210ZF-3100255
    350170ZF-390215125
    250170ZF-390210120
    620210ZF-317430120120240120
    530180ZF-312869115100215115
    400180ZF-36901115100215115
    280170ZF-3297113090210130
    200170ZF-3122113080210130
    110070ZF-345341509141
    140214MF-4100255
    620285ZF-416972185145330185
    420245ZF-44384170150320170

    Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2

    Quality Steel Cover Plate Industrial Air Spring GUOMAT 2B12X2 Firestone W01-R58-4060 12" x2 for sale
