Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910

W013586910 Firestone Industrial Air Spring Airide Air Spring Double Convoluted 20

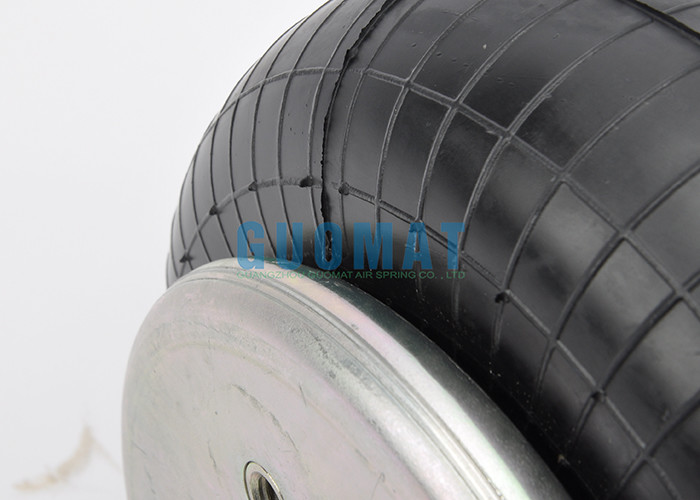

About GUOMAT Air Sring 2B6910 replaces Firestone W01-358-6910

GUOMAT Air Sring launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products Air Sring 2B6910 meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products Air Sring 2B6910 produced. This is our high recognition from American customers and also gives us Great motivation.

OEM Original Equipment Manufacturer:

Specifications and Technical Data of W01-358-6910 and 2B9-200

Firestone part number: W01-358-6910 /

Firestone part number:W013586910 /

Firestone part number:W01 358 6910

Firestone:W01-358-6910,
Firestone:W013586910,
Firestone:WO1-358-6910,
Firestone:WO13586910
Firestone Corrugated Tube Number: 20

Firestone Bellows Number:20
Goodyear part number: 2B9-200 /

Goodyear part number:2B9200 /

Goodyear part number:2B9 200
Goodyear Bellows Number: 578-92-3-202 /

Goodyear Bellows Number:578923202/

Goodyear Bellows Number:578 92 3 202
Number of grids: 1371
Hendrickson Trailer No.: S-8768
Hendrickson Truck Number: 45843-3
Ridewell number: 1003586910C
Triangle part number: 4320
Triangle bellows number: 6325
Watson&Chalin#:AS-0001
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 1/4 NPT

Inch Technical Data of W01-358-6910

Maximum diameter @ 100 PSIG (inch)
9.9
Maximum height (inch)
9.1
Maximum stroke (inch)
6
Minimum usable height (inches)
3.1

Style cross reference equivalent high intensity style number
202
Style cross reference extended height (similar end caps) style number
20-2
material
2-layer standard line
End details
Bead plate type
3
Blind nut center (inch)
3.5
Port offset of blind nut centerline (inch)
1.75

80PSI force at 1 inch stroke (lbs)
3790
80 PSI force (lbs) at a stroke of 3 inches
3180
Maximum thrust for maximum stroke @ 80PSI (pounds)
1770

How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
