Brand Name : | GUOMAT |
Model Number : | 2B120 |
Certification : | ISO/TS16949:2009 |
Price : | $59.9-69.9/pc |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 1000pcs/week |
Delivery Time : | 2-8 work days |
MOQ : | 10 Pieces |
High Quality Industrial Air Spring Bags 2B120 With 120mm Natural
Diameter
Product Description
Item Name : Steel Double Convoluted Air Bag
Product Number : 1B 120
OEM Number : 1B120
Factory Warranty : 12 Months
Product Material : Natural Rubber and Steel
Package : Strong Carton Box
Delivery Time : 3-8 Working Day
Type: Convoluted Type Air Spring
The Technical Data of 1B120
1.Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25
2.Screw Center Distance of Top Cover Plate : 90 mm
3.Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25
4.Screw Center Distance of Bottom Cover Plate : 90 mm
5.Gas Hole: G1/4
6.Top Cover Plate Diameter (Width): 116mm
7.Bottom Cover Plate Diameter (Width): 116 mm
8.Rubber Bellows Natural Diameter : 120mm
9.Rubber Bellows MAX Diameter : 135 mm
10.Installation Space Diameter : 155 mm
11.Rubber Bellows Natural Height : 168 mm
12.Bumper block: Without Bumper Block
13.With Girdle Hoop :One Pieces of Girdle Hoop
GUOMAT Also Offers Other Types of Air Springs
Product ID | OEM | Description | Application |
1B6165 | W01-M58-6165 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B6166 | W01-M58-6166 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7731 | W01-358-7731 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B6374 | W01-M58-6374 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B200-10 | FS200-10 | Manufacturer Contitech Air Spring | Industrial equipment vibration reduction |
1B7070 | FS70-7 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B9202 | 1B9-202 | Manufacturer Goodyear Air Spring | Industrial equipment vibration reduction |
1B7008 | W01-358-7008 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7009 | W01-358-7009 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B4060 | FS40-6 1/8 M8 | Manufacturer Contitech Air Spring | Industrial equipment vibration reduction |
1B7451 | W01-358-7451 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7564 | W01-358-7564 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7725 | W01-358-7725 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7598 | W01-358-7598 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B7094 | W01-358-7094 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B6926 | W01-358-6926 | Manufacturer Firestone Air Spring | Industrial equipment vibration reduction |
1B20019 | FD200-19 | Manufacturer Contitech Air Spring | Industrial equipment vibration reduction |

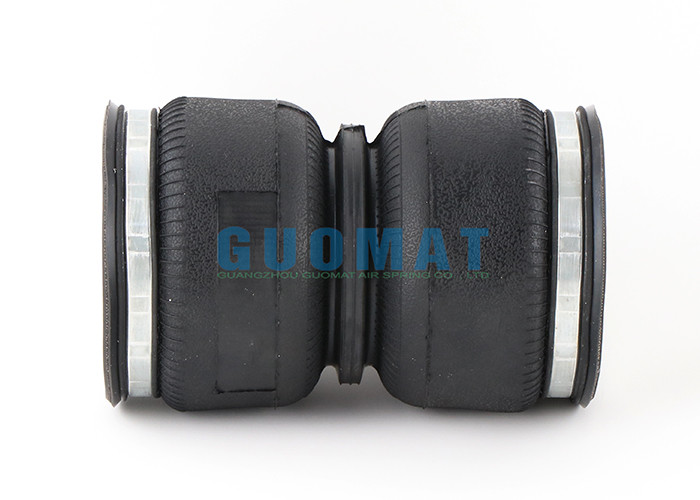

The Real Pictures
![]() |
