    2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B4060
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

    Guomat 2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

    Product Description

    GUOMAT NO.2B4060 can be replace Contitech FD40-10.Can be used for shock absorption of industrial equipment.At the same time reduce noise, prolong the service life of industrial machines and increase efficiency.


    Manufacturer: Contitech

    OEM Number:FD40-10

    :FD 40-10

    :FD40-10 CI 1/8 NPT

    Warranty: 12 Months Warranty

    Material:Rubber/Steel

    Application: Industrial Machine

    MOQ: 10 Pieces

    Function: Reduce Vibration

    Key Words: Double Convolution Air Spring


    Contitech FD 40-10 Air Bellow Technical Data

    Top Cover Plate Diameter (Width): 90 mm
    Bottom Cover Plate Diameter (Width): 90 mm
    Air inlet : G1/8
    Top Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
    Screw Center Distance of Top Cover Plate : 20 mm
    Bottom Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
    Screw Center Distance of Bottom Cover Plate : 20 mm
    Rubber Bellows Natural Diameter : 125mm
    Rubber Bellows Natural Height : 145 mm


    Min.pressure 0 bar
    Return Force to Min.Height ≤200N
    Overall Weight with Clamped Plate 1.1kg

    Vibration isolation-dynamic characteristic Values

    Design height H:Recommened 160mm,minimum 150m

    Pressure P [bar]345678Vol.[I]
    Force(Load) [KN]1.11.52.02.42.83.21.2
    Spring Rate [N/cm]340450580700825950
    Natural Frequency [Hz]2.82.82.72.72.72.7

    Pneumatic Application-Static Characteristic Values

    Force F(kN)

    Pressure P[bar]345678Vol.[I]
    Height H [mm]1601.11.62.02.42.83.21.2
    1401.62.22.83.33.94.51.1
    1202.02.73.44.14.85.50.9
    1002.33.14.04.85.66.40.7
    802.63.54.55.46.37.10.6

    Product ID

    OEM

    Description

    Application

    2B6884

    W01-358-6884

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6897

    W01-358-6897

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6900

    W01-358-6900

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6902

    W01-358-6902

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6905

    W01-358-6905

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6908

    W01-358-6908

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6910

    W01-358-6910

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6926

    W01-358-6926

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

    2B6932

    W01-358-6932

    Manufacturer

    Firestone Air Spring

    Industrial equipment vibration reduction

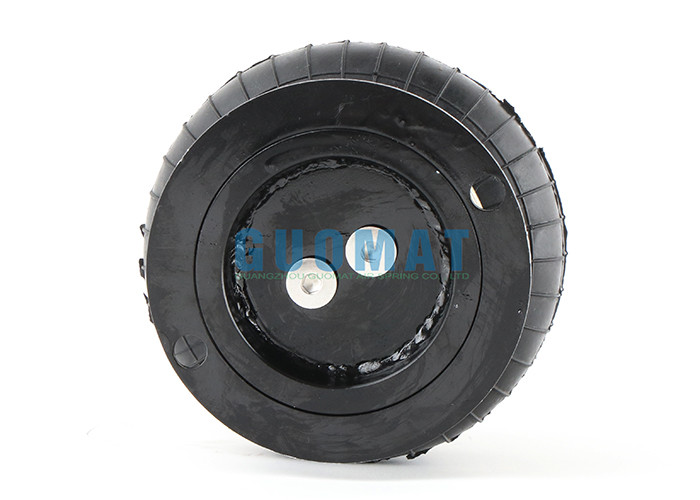

    The Real Pictures

    2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

    Quality 2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate for sale
