FS 530-14 Contitech Single Convoluted Crimped Air Spring With 1/4 Gas Hole Industrial Air Bags

Product Description

GUOMAT Number:1B53014

CONTITECH Part Number:FS530-14

CONTITECH Part Number:FS 530-14

CONTITECH Part Number:FS 530-14 CI

CONTITECH Part Number:FS 530-14 CI 1/4 NPT OS

CONTITECH Part Number:FS530-14 CI 1/4 NPT OS

Spring Material:Natrual Rubber

Factory Warranty:1 Year Warranty

MOQ:10 Pieces

Spring Type:Single Convoluted Type

Failure Testing:≥3 millions

Working Temperature:-40℃ bis +70℃

FS 530-14 1/4 Technical Data

Top Cover Plate Diameter:Ø289mm

Gas Hole / Air inlet:1/4NPTF

Screw Center Distance of Top Cover Plate:158.8mm

Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC

Bottom Cover Plate Diameter:Ø289mm

Screw Center Distance of Bottom Cover Plate:158.8mm

Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC

The Rubber Bellow MAX Diameter:406mm

The Working Stroke:81mm-160mm

Min. Pressure:0 bar

Return Force to Min.Height:≤300N

Overall Weight with Clamped Plates:6.1kg

Air Spring GUOMAT 1B53014 Reference FS 530-14 CI Contitech

Product Features

• Excellent shock absorption performance

GUOMAT air spring adopts high-quality imported rubber, which has excellent shock absorption performance

• Effectively reduce noise

The vibration action area of GUOMAT air spring is the middle part of the rubber air bag. The use of air spring can effectively reduce vibration and

reduce noise.

• Stable state and quality assurance

Each of our products will be tested for air tightness before delivery to ensure the quality of the product.

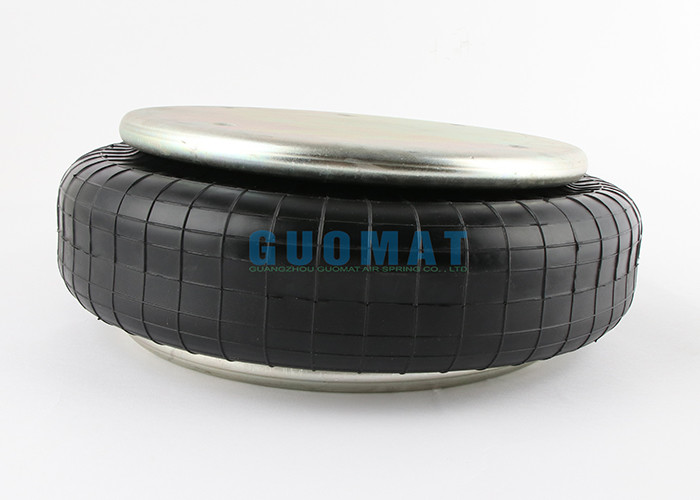

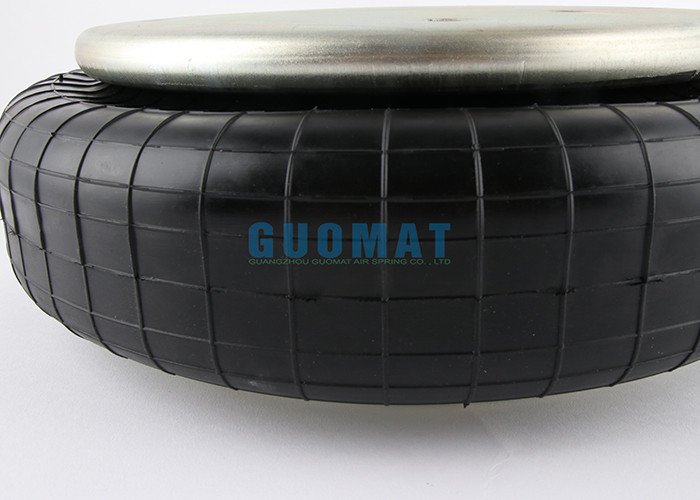

The Real Pictures of GUOMAT NO. 1B53014-1/4

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
