    W01-358-6910 Firestone Double Convoluted Type Air Bags For Industrial Equipment Machine

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-358-6910 Firestone Double Convoluted Type Air Bags For Industrial Equipment Machine

    W01-358-6910 Firestone Double Convoluted Air Bellow FD 200-19 320 Contitech Airide Air Spring

    Product Description


    FIRESTONE W01-358-6910

    FIRESTONE W01 358 6910

    FIRESTONE W013586910


    Firestone Part Number w01-358-6910

    ​Firestone Part Number w01 358 6910
    ​Firestone Part Number w013586910
    CONTITECH FD200-19 320
    CONTITECH FD 200-19 320
    CONTITECH FD200 19 320
    Contitech Part Number fd200-19 320
    Contitech Part Number fd 200-19 320
    Contitech Part Number fd200 19 320
    GOODYEAR 2B9-200
    GOODYEAR 2B 9-200
    GOODYEAR 2B9 200
    GOODYEAR 2B9-202
    GOODYEAR 2B 9-202
    GOODYEAR 2B9 202
    GOODYEAR 2B9-216
    GOODYEAR 2B 9-216
    GOODYEAR 2B9 216
    Goodyear Bellow Number 578423202
    Goodyear Bellow Number 578 423 202
    Triangle Part Number 6325
    Triangle Part Number 4320
    Taurus Part Number KF218-6910

    Brake&Wheel

    M3510

    Dina

    A812719

    Dina

    AZ812719

    Dayton

    3546910

    Leland

    Sc2011

    Navistar

    554783C1

    Hendrickson

    S8768

    Hendrickson

    458433

    Ridewell

    1003586910C

    SAF Holland

    57006910

    Trailers De

    133128

    Tuthill

    1371

    Watson&Chalin

    AS-0001

    Watson&Chalin

    AS-0156G


    Guomat 2B6910 Technical Data

    Top Cover Plate Diameter: 160mm

    Bottom Cover Plate Diameter: 160mm

    Air Hole: 1/4NPTF

    Top Cover Plate Threaded Hole: 2X3/8-16UNC

    Bottom Cover Plate Threaded Hole: 2X3/8-16UNC

    The Distance Between the Threaded Hole and Air Hole of the Top Cover Plate: 44.5mm

    The Distance Between the Threaded Hole of Top Cover Plate: 89mm

    The Distance Between the Threaded Hole of Bottom Cover Plate: 89mm

    Rubber Bellow Natural Outer Diameter: 224mm
    Rubber Bellow Max Outer Diameter: 251mm
    The Working Stroke: 75mm-260mm

    Guomat 2B6910 is a double convoluted air spring made of imported natural rubber. Its carrying range is 50-2500kg and has excellent carrying capacity. The use of hyperbolic industrial springs in industrial machinery and equipment can effectively improve the vibration caused by the operation of machinery and equipment due to its own weight, and improve the operating efficiency of the machine.


    The double convoluted air spring is a curved air bag fitted with rubber mesh. The two ends of the airbag need to be connected with two cover plates to form two compressed air chambers. The rubber and mesh cables themselves do not provide the bearing capacity of the load, but are done by the compressed air inflated into the air bag.

    Guomat Other Related Convoluted Air Spring

    Guomat Number

    Bellow Number

    Firestone Number

    Contitech Number

    Working Stroke

    2B7897

    2B 9X2

    W01-358-7897


    79mm~274mm

    2B6886

    2B 9X2

    W01-358-6886

    FD 200-22 706

    79mm~274mm

    2B6883

    2B 9X2

    W01-358-6883

    FD 200-22 510

    95mm~274mm

    2B12017

    2B 5020


    FD 120-17

    75mm~230mm

    2B6353

    2B 5020

    W01-M58-6353

    FD 120-17

    75mm~230mm

    2B7013

    2B 5013


    FD 70-13

    162mm

    2B40-10

    2B 40-10


    FD 40-10

    145mm

    2B7325

    2B 8X2

    W01-358-7325

    FD 120-17 509

    177mm

    2B7781

    2B 383

    W01-358-7781

    FD 530-35 545

    104mm~391mm

    2B7557

    2B 383

    W01-358-7557

    FD 530-35 530

    104mm~391mm

    2B7781

    2B 360

    W01-358-7781

    FD 530-35 545

    90mm~300mm

    2B7555

    2B 331

    W01-358-7555

    FD 331-26 480

    104mm~363mm

    2B7550

    2B 331

    W01-358-7550

    FD 331-26-541

    104mm~363mm

    2B7472

    2B 331

    w01-358-7472

    FD 330-30-371

    79mm~363mm

    2B7136

    2B 350

    W01-358-7136

    FD 530-22 321

    220mm

    2B7180

    2B 330

    W01-358-7180

    FD 330-22 363

    75mm~290mm

    2B7437

    2B 330

    W01-358-7437

    FD330-22 334

    104mm~305mm

    2B7429

    2B 330

    W01-358-7429

    FD 330-22 343

    81mm~305mm

    2B7406

    2B 330

    W01-358-7406

    FD 330-22 365

    104mm~305mm


    Product Images

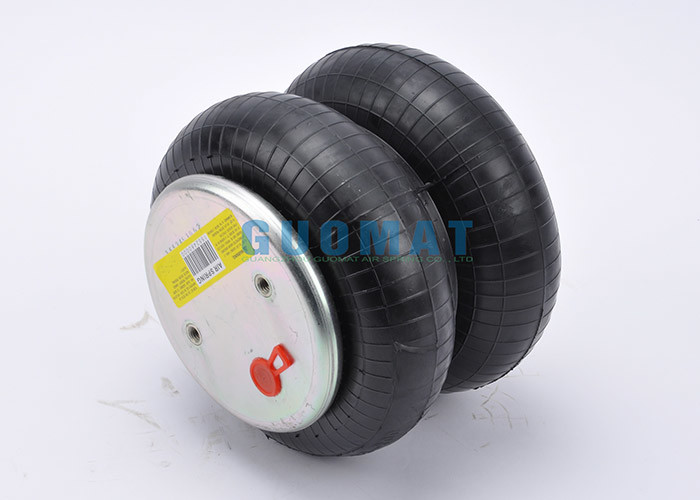

    W01-358-6910 Firestone Double Convoluted Type Air Bags For Industrial Equipment MachineW01-358-6910 Firestone Double Convoluted Type Air Bags For Industrial Equipment Machine

    Quality W01-358-6910 Firestone Double Convoluted Type Air Bags For Industrial Equipment Machine for sale
