    Firestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension Airbags

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7994
    Certification : ISO/TS16949:2009
    Price : $89.9-159.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Firestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension Airbags

    Firestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension Airbags​


    Product Information


    Manufacturer: Firestone

    Part Number: W01-358-7994


    Manufacturer: Firestone

    Part Number: W01 358 7994


    Manufacturer: Firestone

    Part Number: W013587994


    Manufacturer: Contitech

    Part Number: FT 330-29 546


    Manufacturer: Contitech

    Part Number: FT330-29 546


    Manufacturer: Contitech

    Part Number: FT330 29 546


    Manufacturer: Contitech

    Bellow Number: 64572


    Manufacturer: Goodyear

    Part Number: 3B12-328


    Manufacturer: Goodyear

    Part Number: 3B 12-328


    Manufacturer: Goodyear

    Part Number: 3B12 328


    Manufacturer: Goodyear

    Part Number: 3B 12 328


    Manufacturer: Triangle

    Part Number: 4546


    Manufacturer: Triangle

    Part Number: 6364


    Waton&Chalin : AS-0019-F

    Euolid/Meritor After Market : E-FS7994


    3B7994 Triple Bellow Air Spring Technical Data

    ♦Cover Plate

    Top Cover Plate Diameter: Ø231mm

    Bottom Cover Plate Diameter: Ø231mm


    ♦Combo Stud/Bolt

    Combo Stud: 1/4NPTF

    Combo Stud: 3/4-16UNF

    Threaded Hole of Top Cover Plate: 3/8-16UNC

    Threaded Hole of Bottom Cover Plate: 2X3/8-16UNC

    Combo Stud and Threaded Hole Center Distance of Top Vover Plate: 140mm

    Distance Between Threaded Holes of Bottom Cover: 157.5mm


    ♦Rubber Bellow

    Rubber Bellow Max Diameter: 330mm MAX.OD

    Rubber Bellow Max Height: 460mm

    Rubber Bellow Min Height: 160mm

    The Working Stroke: 330mm


    1. Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle’s suspension.

    2. Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.

    3. Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.

    4. Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.

    5. Bead Plate - Crimped onto the bellows at the factory for a more durable design and maximum quality control. Allows 100% leakproof testing prior to shipment.

    6. Bellows - The 'air bag' includes four plies of material: an inner layer, two plies of cord-reinforced fabric, and an outer cover.

    7. Bumper - A solid rubber or engineered plastic device designed to prevent significant damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

    8. Piston - Provides a lower mounting arrangement for the air spring. Controls the characteristics of the spring under changing pressure loads.

    9. Piston Bolt - Attaches the piston to the bellows. Sometimes extended as a means of attaching the spring to the vehicle suspension.

    10. Girdle Hoop - A wire-wound ring molded into the bellows to provide lateral stability in convoluted type springs.


    Three Convoluted Air Spring

    No.

    GUOMAT

    FIRESTONE

    CONTITECH

    GOODYEAR

    1

    3B7995

    W01-358-7995

    FT 330-29 547

    3B12-329

    2

    3B7996

    W01-358-7996

    FT 330-29 520

    3B12-335

    3

    3B8006

    W01-358-8006

    FT 330-29 430

    3B12-304

    4

    3B8008

    W01-358-8008

    FT 330-29 431

    3B12-300

    5

    3B8010

    W01-358-8010

    FT 330-29 432

    3B12-301

    6

    3B8016

    W01-358-8016

    FT 330-29 433


    7

    3B8025

    W01-358-8025

    FT 330-29 469

    3B12-300

    8

    3B8027

    W01-358-8027

    FT 330-29 466

    3B12-310

    9

    3B8030

    W01-358-8030

    FT 330-29 498

    3B12-304

    10

    3B7808

    W01-358-7808

    FT 330-22 364

    2B12-313


    Product Images

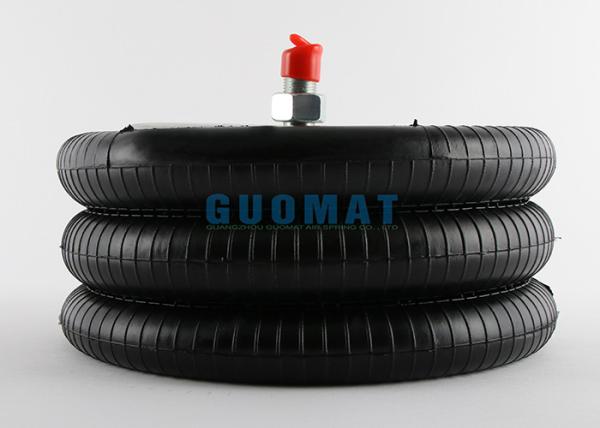

    Firestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension AirbagsFirestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension Airbags

    Quality Firestone W01-358-7994 Rubber Air Spring 3B12-328 Gooyear Truck Suspension Airbags for sale
