    FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B12017
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow

    FD120-17 CI Contitech Industrial Rubber Bellow Air Spring With G1/4 Gas Hole Airkraft 2B-181


    Product Description

    MANUFACTURER

    PART NUMBER

    Firestone
    W01-M58-6353
    Firestone
    W01M586353
    Firestone
    W01 M58 6353
    Firestone
    WO1M586353
    Firestone
    WO1 M58 6353
    Firestone
    WO1-M58-6353
    Contitech
    FD120-17
    Contitech
    FD 120-17
    Contitech
    FD12017
    Contitech
    FD 120 17
    Airkraft
    113054
    Airkraft
    2B-181

    GUOMAT NO.2B12017 Technical Data

    ►Cover Plate​

    Top Cover Plate Diameter:135mm

    Bottom Cover Plate Diameter:135mm


    ►Air Inlet/Gas Hole/Air Fitting

    Air Inlet:G1/4

    Air Inlet:G3/4

    Air Inlet:G3/8

    Air Inlet:RC3/8


    ►Nut/Blind Nut

    Top Cover Plate Screw (Nut) Tooth:2XM8X1.25

    Screw Center Distance of Top Cover Plate:70mm
    Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25
    Screw Center Distance of Bottom Cover Plate:70mm
    ►Rubber Bellow
    Rubber Bellow MAX Diameter:215mm
    Natural Height:167mm
    The Working Stroke:MAX 230mm to MIN 75mm
    Maximum Height:230mm
    Minimum Height:75mm
    Compression Height:155mm

    Vibration Isolation Applications - Dynamic Eigenvalues

    -------Design Height H :190mm , Min 175mm

    Pressure P [bar]345678Volume V [I]
    Load [KN]3.85.26.58.09.310.6

    3.2

    Stiffness [N/cm]6008301060129015201750
    Natural Frequency [Hz]2.12.02.02.02.02.0

    Pneumatic Applications - Static Eigenvalues

    -------Load [KN]

    Pressure P[bar]345678Volume V [I]
    Height H [mm]2003.44.85.97.38.59.73.4
    1804.25.77.18.610.111.53.1
    1604.96.58.19.911.513.12.8
    1405.57.29.111.012.714.52.4
    1206.07.99.912.014.015.82.1
    1226.48.510.712.915.117.01.6
    806.89.111.313.716.017.91.2

    Air Spring

    The air spring consists of a flexible elastomer rubber body with nylon fabric reinforcement, and a rust-proof plate with air intake and mounting blind nuts. Rubber bellows can be used as vibration isolators, and air springs can absorb up to 99% of harmful vibrations, avoiding further damage to machines and metal structures. At the same time, they reduce noise levels.


    Contact Us
    We deal auto parts air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
    Please kindly contact me if you have any question about automotive parts.
    We will be your best choice, and we will provide you professional service.

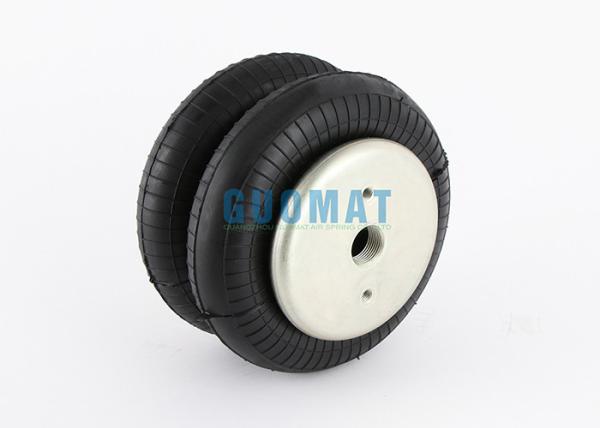

    Real Picture Details

    FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber BellowFD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
