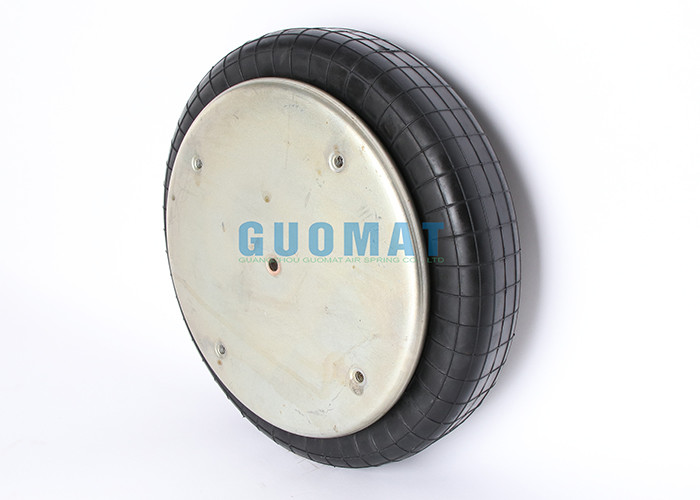

Natural Rubber Single Convoluted Air Spring 1B53014-1/4 Contitech Air Bellow FS 530-14

Product Description

GUOMAT 1B53014 Original Equipment Manufacturer

Spare Part Number : 1B530-14

Contitech Part Number : FS530-14 CI 1/4NPT

Contitech Part Number : FS 530-14 CI 1/4NPT

Contitech Part Number : FS530-14 CI

Contitech Part Number : FS 530-14 CI

Firestone Part Number: W01-358-7091

Firestone Part Number: W013587091

Firestone Part Number: W01 358 7091

Firestone Part Number: w01-358-7091

Firestone Part Number: w013587091

Firestone Part Number: w01 358 7091

Contitech Single Suspension Spring Technical Data

Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC

Screw and Air Inlet Distance of Top Cover Plate : 158.8mm

Bottom Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC

Screw and Air Inlet Distance of Bottom Cover Plate : 158.8mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 NPT

Cover Plate

Top Cover Plate Diameter : 289mm

Bottom Cover Plate Diameter : 289mm

Rubber Bellow

Rubber Bellows MAX Diameter : 406mm

The Working Stroke : MAX 160 mm to MIN 81 mm

Maximum Height : 160mm

Minimum Height : 81mm

Compression Height : 79mm

Our Advantage
1. Rich shock absorption products (trucks, cars, buses, industrial machinery and equipment, etc.)
2. Accept OEM orders
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. Guaranteed Warranty

Our Service
1. Reply your inquiry within 24 working hours
5. Prompt delivery
6. Good after-sale service
7. Ex-factory price

Installation of the air spring
The inert gas is injected into the spring, and the elastic function is produced by the piston. The product does not need external power, the lifting force is stable, and it can be freely stretched. When installing, pay attention to the following points:

1. The piston rod of the gas spring must be installed in the downward position and must not be installed upside down, which can reduce friction and ensure the best damping quality and cushioning performance.

2. Determining the installation position of the fulcrum is the guarantee that the gas spring can work correctly. The gas spring must be installed in the correct way, that is, when it is closed, let it move over the center line of the structure, otherwise the gas spring will often automatically push the door open.

3. The gas spring should not be subjected to tilting force or lateral force during operation. Not to be used as a handrail.

4. In order to ensure the reliability of the seal, the surface of the piston rod must not be damaged, and it is strictly forbidden to apply paint and chemical substances on the piston rod. It is also not allowed to install the gas spring in the desired position before spraying and painting.

5. The gas spring is a high-pressure product, and it is strictly forbidden to analyze, bake, or touch it at will.

Product Images

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
