W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers

    Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers
    • Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers
    • Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers
    • Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers
    • Buy cheap W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 from wholesalers

    W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : FS 200-10
    Certification : ISO/TS16949:2009
    Price : $49.9-59.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10

    For Industrial Air Spring W01-M58-6374 Trailer Air Lift Suspension Contitech FS200-10

    Product Description


    Item: Single Vibration Industrial Air Spring

    Item Number : FS200-10

    OEM Number : W01-M58-6374

    Suspension Type : Air Suspension Spring

    Warranty : 12 Months

    Color : Black

    Place of Origin : Guangzhou,China

    Spring Material : Natural Rubber

    Certification : ISO/TS16949:2009

    Packing : Neutral Packing

    Quality : High-Quality

    Application : Paper Machine Equipment

    Firestone : W01-M58-6374
    Contitech : FS 200-10
    Phoenix : SP 1B 12
    Dunlop(FR) : 9’’1/4x1 S09101
    Bosch : 822419004
    Festo : EB-250-85
    Norgren : PM/31091(81/4x1)

    Top Cover Plate Screw (Nut) Tooth : 2XM8X1.25

    Bottom Cover Plate Screw (Nut) Tooth : 2XM8X1.25

    Air Fitting : G3/4

    Top Cover Plate Diameter : 160mm

    Bottom Cover Plate Diameter : 160mm

    Screw and Air Inlet Distance of Top Cover Plate : 38mm

    Screw Center Distance of Top Cover Plate : 89mm

    Screw Center Distance of Bottom Cover Plate : 89mm

    Rubber Bellows MAX Diameter : 220mm

    The Working Stroke : 110mm


    Original Equipment Manufacturer

    Firestone

    W01-M58-6374

    Firestone

    W01M586374

    Firestone

    W01 M58 6374

    Contitech

    FS200-10

    Contitech

    FS 200-10

    Phoenix

    SP 1B 12

    Dunlop(FR)

    9’’1/4x1

    Dunlop(FR)

    S09101

    Bosch

    822419004

    Festo

    EB-250-85

    Norgren

    PM/31091

    Norgren

    8''1/4x1


    Application of rubber air spring in lifting equipment

    Traditional lifting equipment uses air cylinders or hydraulic cylinders to lift objects, which require large installation space, difficult manufacturing processes, heavy weight, easy leakage and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting equipment, the traditional shortcomings of the lifting equipment are overcome, maintenance is not required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.


    Other Type Air Spring

    Type

    Firestone

    Dunlop Pneuride

    Dunlop Springride

    Contitech

    Norgren

    4 1/2" x 1

    W01R584050

    4 1/2" x 1

    SP2334

    FS 44-5 DI

    PM/31041

    4 1/2" x 2

    W01R584051

    4 1/2" x 2

    SP2441

    FD 44-10 DI

    PM/31042

    6" x 1

    W01R584052

    6" x 1

    SP1536

    FS 76-7 DS

    M/31061

    6" x 2

    W01R584070

    6" x 2

    SP2917

    FD 76-14 DI

    PM/31062

    6" x 2

    W01R584053

    6" x 2

    SP1482

    FD 76-14 DS

    M/31062

    6" x 3

    W01R584095

    6" x 3

    SP2861

    FT 76-20 DS

    M/31063

    8" x 1

    W01R584054

    8" x 1

    SP1537

    FS 138-8 DS

    M/31081

    8" x 2

    W01R584055

    8" x 2

    SP1490

    FD 138-18 DS

    M/31082

    8" x 3

    W01R584056

    8" x 3

    SP2863

    FT 138-26 DS

    M/31083

    10" x 1

    W01R584057

    10" x 1

    SP2523

    FS 210-10 DS

    M/31101

    10" x 2

    W01R584058

    10" x 2

    SP1538

    FD 210-22 DS

    M/31102

    10" x 3

    W01R584059

    10" x 3

    SP1539

    FT 210-32 DS

    M/31103

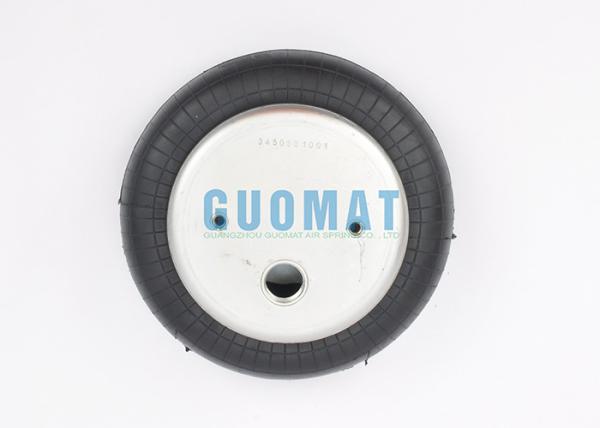

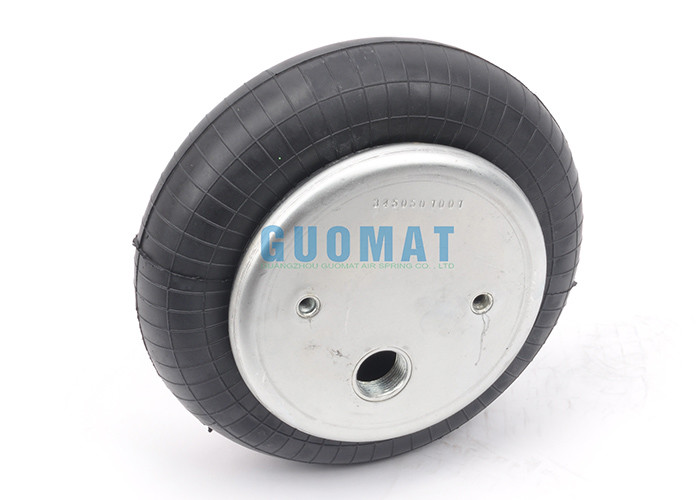

    Product Pictures

    W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10

    Quality W01-M58-6374 Industrial Air Spring Trailer Air Lift Suspension Contitech FS200-10 for sale
