FD120-17 Contitech Double Convoluted Rubber Air Spring Airkraft 2B-181 For Punch Machine

Product Description

Contitech FD120-17 / Contitech FD 120-17 / Contitech Fd120-17 / Contitech Fd 120-17

Airkraft 113053 / Airkraft 113 053 / Airkraft 2B-181

Technical Parameter

Structure: Double air springs
Entrance: G3/4
Air Spring Travel: 130mm
Air Spring Diameter: 215mm
Mounting Diameter: 230mm
Cover diameter: 135mm
Minimum height: 75mm
Recommended height: 190mm
Maximum height: 230mm
Working pressure: 0-8bar
Force (load) at 6bar: 8000N
Working temperature: -40℃+70℃

Top Cover Plate Screw(Nut) Tooth:2XM8X1.25

Bottom Cover Plate Screw(Nut) Tooth : 2XM8X1.25

Screw Center Distance of Top Cover Plate:70mm
Screw Center Distance of Bottom Cover Plate:70mm

Purchase Order Data

Min.pressure 0bar
Return force to min.height ≤200N
Overall weight with clamped plates 2.3Kg

Vibration isolation-dynamic characteristic values

Design height H:recommended 190mm,minimum 175mm

Pneumatic application-static characteristic values

Force F (kN)

Air springs are widely used in road, railway vehicles, large and medium-sized paper machinery, paper industry, mining machinery, sewage treatment, medical machinery, environmental protection washing and many other equipment. For example, the air suspension system of the car uses the air spring as the elastic element, and uses the compressibility of the gas to achieve its elastic effect - the air pressure of the compressed gas can be automatically adjusted with the change of load and road conditions, no matter full load or no load, The height of the whole vehicle will not change, which can greatly improve the ride comfort.

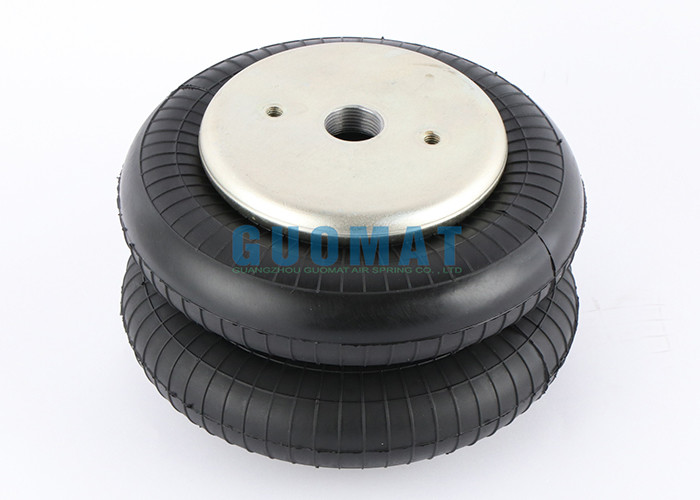

Product Image
