W01R584060 Firestone Industrial Air Spring 12X1 Steel Assembly Single Convoluted Air Bag

Product Description

12''x1 Air Bags Technical Data

Gas Hole/Air Inlet : G1/2

Top Cover Plate Diameter : 260mm

Screw Center Distance of Top Cover Plate : 232mm

Top Cover Plate Screw (Nut) Tooth : 4XM10X1.5

Bottom Cover Plate Diameter : 160mm

Screw Center Distance of Bottom Cover Plate : 232mm

Botton Cover Plate screw(Nut) Tooth : 4XM10X1.5

Design Height : 120mm

Maximum Height : 150mm

Minimun Height : 50mm

Rubber Bellow Max Diameter : 330mm

Replaces These Air Springs (Air Bellows)

Application of air spring in industrial machinery

Air springs are widely used in equipment vibration isolation in industrial machinery, such as in presses, air compressors, centrifuges, vibrating conveyors, control hammers, foundry machinery and textile machinery, optical and laser instruments, integrated circuits, ultra-precision machine tools, etc. on mechanical equipment and precision testing equipment.

For example, in the papermaking, textile and other industries, the paper or cloth needs to bypass many transfer rollers at a high speed during the winding process, so a constant tension force is required during the transfer process to prevent the paper or cloth from slackening, twisting or breaking . In this case, the hollow roll-air spring combination structure is used, which can provide constant tension. Moreover, it has a strong ability to withstand impact loads, and protects the conveying device and the conveying parts from damage.

Air springs can absorb vibration, control movement or boost pressure. Compared with cylinders or other elastic elements with the same function, the air spring has a simple structure, reliable operation, no complicated parameter calculation and structural design, no seal leakage problem, convenient use and maintenance, and long service life.

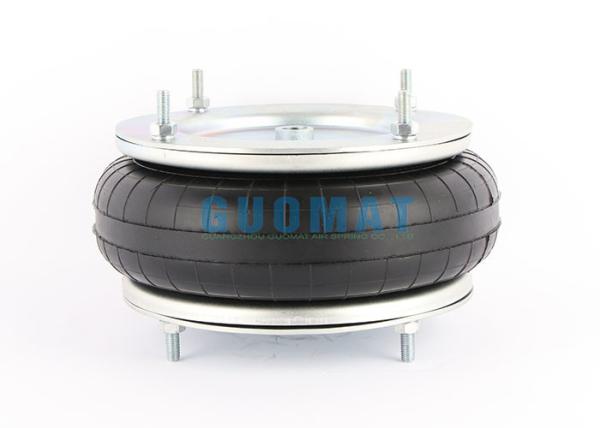

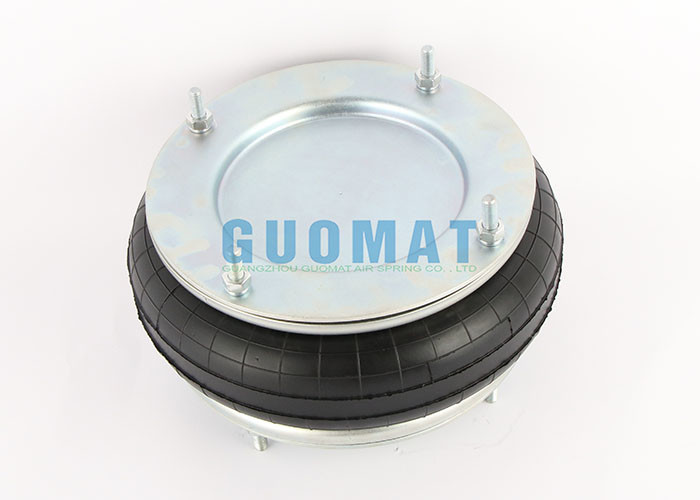

Product Picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
