    1B9-202 578913201 Goodyear Air Spring Replacement For Lift Machine

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B 9x5
    Certification : ISO/TS16949:2009
    Price : $49.9-59.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    1B9-202 578913201 Goodyear Air Spring Replacement For Lift Machine

    Goodyear Air Spring 1B9-202/ 578913201 For Lift Machine Convoluted Air Spring Replacement

    Product Description

    Item

    Air Spring/Shock Absorber Spring

    Item No.

    1B9X5

    Suitable For

    Industrial Machine

    Material

    Rubber+Steel

    Warranty

    1 Year

    MOQ

    1 pcs if we have stock

    Package

    1.Bubble bag and neutral brown carton

    2.Customers request packaging

    3.Normal exported package

    Delivery Time

    Usually 2-8 working days after receive your payment

    Payment

    L/C,T/T,Western Union and PayPal

    After Service

    1.Examination before shipment

    2.Follow up the customers'feedback


    1B9X5 Reference Number

    GOODYEAR 1B9-202 / 1B9202 / 578913201 / 578 91 3 201

    FIRESTONE W013587460 / W01-358-7460 / w01-358-7460


    1B9-202 Air Bag Technical Data


    Cover Plate

    Top Cover Plate Diameter : 160mm

    Bottom Cover Plate Diameter : 160mm


    Nut/ Blind Nut

    Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

    Screw Center Distance of Top Cover Plate : 89mm

    Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 89mm

    Distance Between Gas Hole and Screw : 44.5mm


    Gas Hole/Air Inlet/Air Fitting

    Gas Hole : 1/4-18 NPTF


    Rubber Bellow

    The Rubber Bellow MAX Diameter : 222mm

    The Working Stroke : MAX 160mm To MIN 60mm

    Maximum Height : 160mm

    Minimum Height : 60mm

    Compression Height :100mm


    Min.pressure 0bar
    Return force min.height ≤200N
    Overall weight with clamped plates 2.3kg


    Vibration Isolation - Dynamic characteristic values

    -------Design Height H :recommended 110mm,minimum 90mm

    Pressure P [bar]345678Volume V [I]
    Force Load [KN]5.57.59.611.914.015.7

    2.7

    Spring rate [N/cm]1500205026003150370042502.7
    Natural Frequency [Hz]2.62.62.62.62.62.62.7

    Pneumatic Applications - Static Eigenvalues Values

    Force F[KN]

    Pressure P [bar]345678Volume V [I]
    Height H [mm]1204.56.28.210.412.113.82.8
    1105.57.59.611.914.015.72.7
    1006.38.611.013.415.517.52.3
    907.09.412.114.617.019.22.2
    807.610.213.015.718.220.61.8
    708.110.913.616.519.321.91.6
    608.511.514.217.120.123.01.3

    Every standard air spring consists of 4 layers.

    • The inner layer which actually contains the air.
    • The first layer of fabric reinforced rubber applied

    at a specific angle.

    • The second layer of fabric reinforced rubber which

    is laid to a specific angle to the first layer.

    • The cover to protect the bias fabric plies.

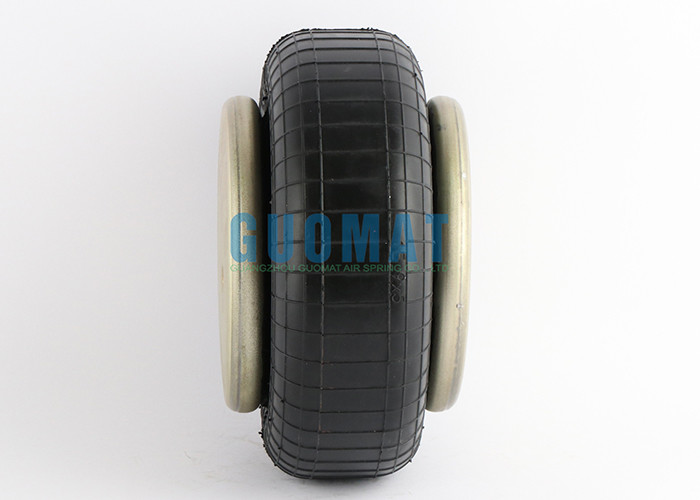

    Product Picture

    1B9-202 578913201 Goodyear Air Spring Replacement For Lift Machine1B9-202 578913201 Goodyear Air Spring Replacement For Lift Machine
