    Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 4 1/2 X 2
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag

    Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag Firestone Industrial Air Spring W01-R58-4051

    Product Description


    4 1/2 X 2 Equivalences


    CONTINENTAL CONTITECH : FD 44-10 DI CR

    FD 44-10

    FD44-10

    FD4410

    FD 44-10 DI G3/8 CR

    FD 44-10 DI CR G3/8

    FD 44-10 DI G3/8 M6

    FD 44-10 DI CR 70206

    FIRESTONE : W01-R58-4051

    W01R584051

    W01 R58 4051

    W01/R58/4051

    DUNLOP FR : SP2441

    SP 2441

    DUNLOP UK (PNEURIDE) : PNP 305590107

    PNP305590107

    PNP 30559 01 09

    YS-AIR : YS-115-2V

    YS 115 2V

    YS1152V

    NORGREN : PM/31042

    PM 31042

    PM31042


    Dimensions(Pouces)


    41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2


    The Dimensions of 4 1/2 X 2

    Maximum Diameter : 125mm
    Space Required : 140mm
    Minimum Height : 65mm
    Maximum Height : 145mm
    Total Stroke : 80mm
    Static Height : 100mm
    Effective Area at Static Height : 67cm2

    Gas Hole : 3/8 BSP

    Screw (Nut) : M6


    Condition of Use

    Maximum Working Pressure8 bar
    Burst Pressure50 bar
    Maximum Angle Between
    Top & Bottom Plates
    15o
    Maximum Axial Offset10 mm

    Operating Temperature


    Standard Rubber

    Minimum -30℃ (40℃ Static)

    Maximum +70℃(+90℃ Static)


    Chlorobutyl Rubber

    Minimum -25℃ (-30℃ Static)

    Maximum +90℃(+115℃ Static)


    Precautions to Observe

    • Do not exceed stated stroke.
    • Do not inflate assembly when it is unrestricted.
    • Respect maximum and minimum heights.
    • The bellows must be securely fixed.
    • Do not use without air pressure.

    Other Kinds of Firestone Air Springs

    W01-R58-4087W01-R58-4088W01-R58-4089
    W01-095-0532W01-095-0464W01-358-7808
    W01-358-7818W01-681-7314W01-358-8042
    W01-M58-6126W01-M58-6127W01-M58-7953
    W01-R58-4081W01-R58-4043W01-R58-4050
    W01-R58-4051W01-R58-4076W01-R58-4035
    W01-R58-4052W01-R58-4078W01-R58-4036
    W01-R58-4053W01-R58-4070W01-R58-4095
    W01-R58-4054W01-R58-4085W01-R58-4045
    W01-R58-4055W01-R58-4056W01-R58-4057

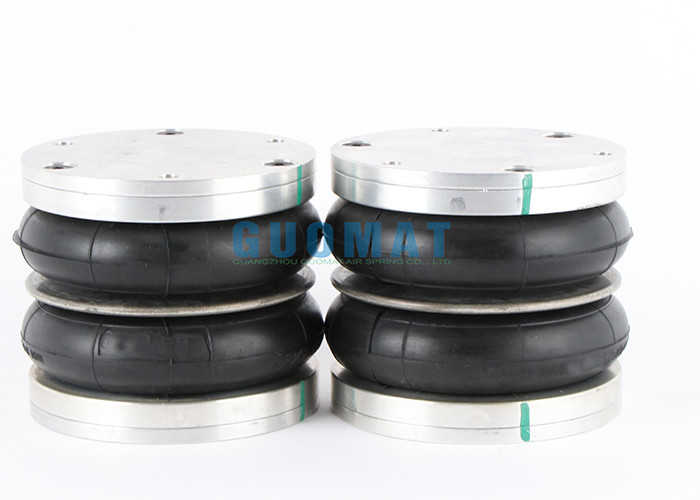

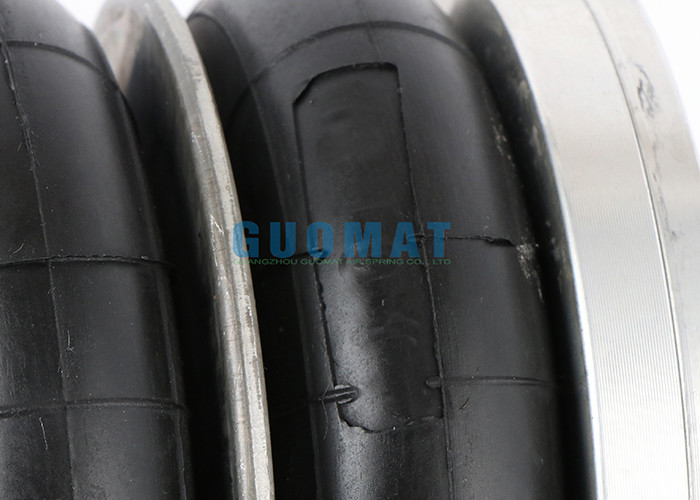

    Product Picture

    Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift BagFirestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
