| Name | Air Suspension Strut | Part Number | 505003 |
| Car Make | Mercedes-Benz | Model | S-Class W220 |
| Year | 1999-2006 | Position | Right Front |
| Delivery | 2-8 business days | Packaging | Neutral box or as customers' request |
| Type | Air Strut | Application | Air Suspension System |
Fitment and OE/OEM Number Information
| Fitment |
| Mercedes-Benz S-Class W220 Front Right |
| Construction Year |
| 1999,2000,2001,2002,2003,2004,2005,2006 |
| OE/OEM Number |
| A2203200438,A2203204913,A2203208413,A2203208613 |
| A 2203200438,A 2203204913,A 2203208413,A 2203208613 |
| A 220 320 0438,A 220 320 4913,A 220 320 8413,A 220 320 8613 |
| Cross Reference |
| ARNOTT PART C-2242 |
Other Air Spring Shock Absorbers for Mercedes Benz S-CALSS W220
| Part Number | Car Make | Car Model | OEM Number | Position |
| 505001 | Mercedes-Benz | S-Class W220 | A 2203202438,A 2203205113 | Front Left/Right |
| 505002 | Mercedes-Benz | S-Class W220 | A2203205013,A2203202338 | Rear Left/Right |
| 505004 | Mercedes-Benz | S-Class W220 | A2203208313,A2203200338 A2203205713,A2203208513 | Front Left |
| 505005 | Mercedes-Benz | S-Class W220 | A2203205613 | Rear Right |
| 505006 | Mercedes-Benz | S-Class W220 | A2203206013 | Rear Left |
| 505007 | Mercedes-Benz | S-Class W220 | A2203202138 | Front Left |
| 505008 | Mercedes-Benz | S-Class W220 | A2203202238 | Front Right |
How to replace vehicel air shock absorber?
1. Loosen the nuts of all wheels in diagonal order, do not
completely unscrew them.
2. Use the machine to lift the car, it does not need to be too
high, just make the wheels a certain distance from the ground,
which can be easily operated.
3. Use a sleeve to completely unscrew the nuts of the wheel in
diagonal order, and then remove the wheel.
4. According to different models, it may be necessary to remove the
brake cylinder to facilitate the removal of the shock absorber,
then remove the fixed bolts, and then loosen the screws of the
spring support arm.
5. Use the jack to fix the shock absorber arm, open the engine hood
and loosen the screws that fix the body on the upper end of the
shock absorber, then turn the jack to lift the shock absorber arm
up until the lower end of the shock absorber is separated from the
fixed part of the front axle, then Remove the shock absorber and
lower the shock absorber arm until the shock absorber elasticity is
completely released, then loosen the fixing screw on the upper end
of the shock absorber to remove the shock absorber.
6. After removing the shock absorber, use the shock absorber spring
remover to fix the spring to avoid the spring moving up and
breaking out when the top screw is removed.
7. Remove the damaged parts of the shock absorber and the rubber
cover.
8. When installing a new shock absorber, you need to apply grease
to improve the anti-wear ability.
9. Fix the body of the new shock absorber on the upper end box of
the car, do not tighten it, just make sure that the shock absorber
will not fall off.
10. Use a jack to fix the shock absorber arm to ensure that the
lower part of the shock absorber can be placed at the front axle
support, use bolts to fix the lower end of the shock absorber arm
and the front axle together, and fix the nut of the spring support
arm, then install the shock absorber. Tighten the body fixing nut
on the upper end of the device.
11. After the shock absorber is replaced, fix the fixing nuts of
the four wheels in diagonal order, then use the lift to lower the
car, and then lower the fixing nuts of the wheels and tighten them.

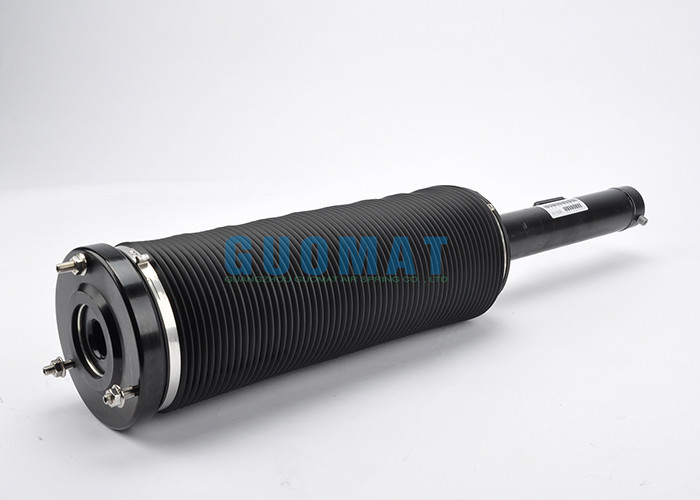

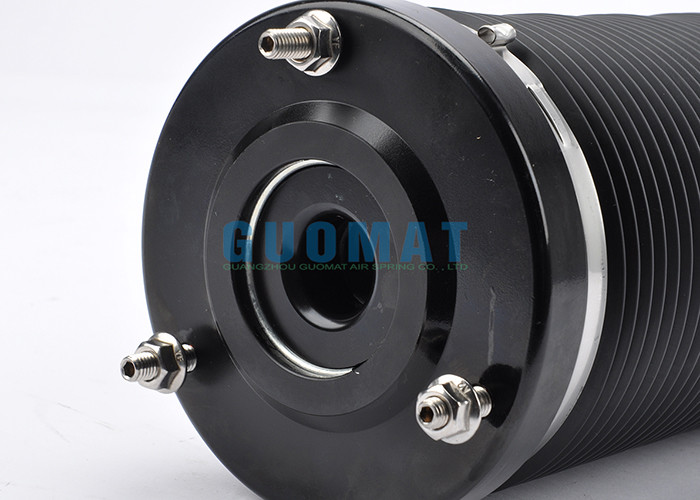

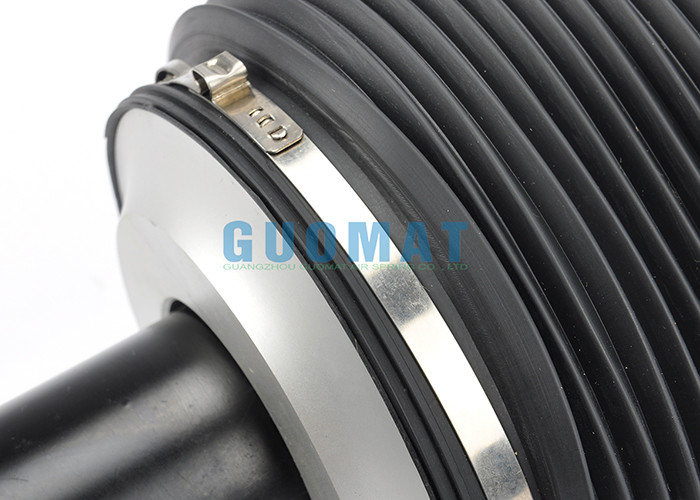

Product Picture
