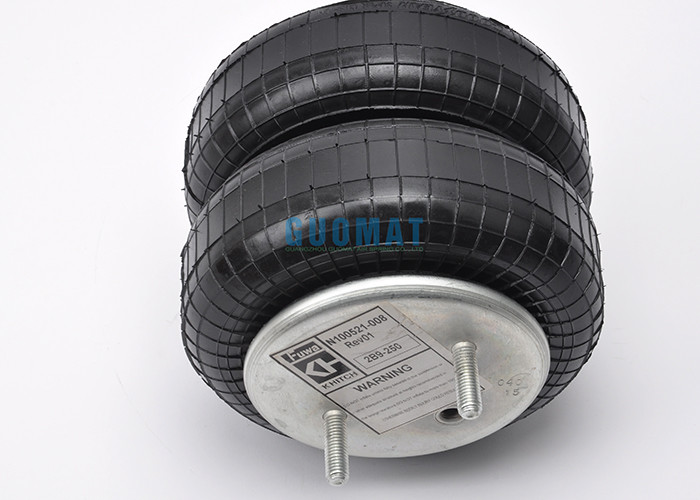

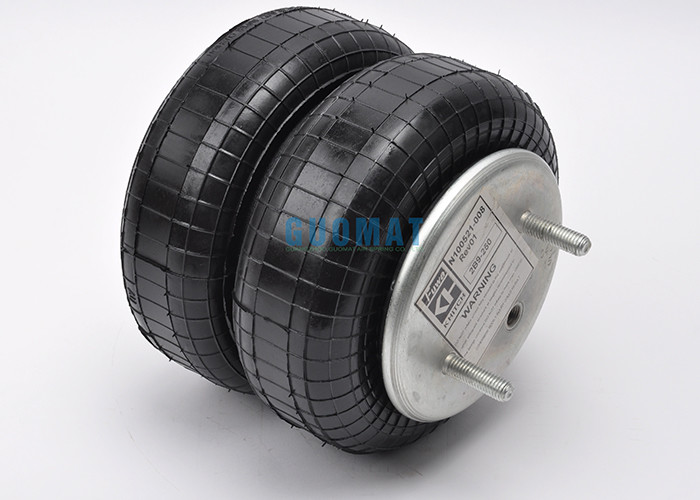

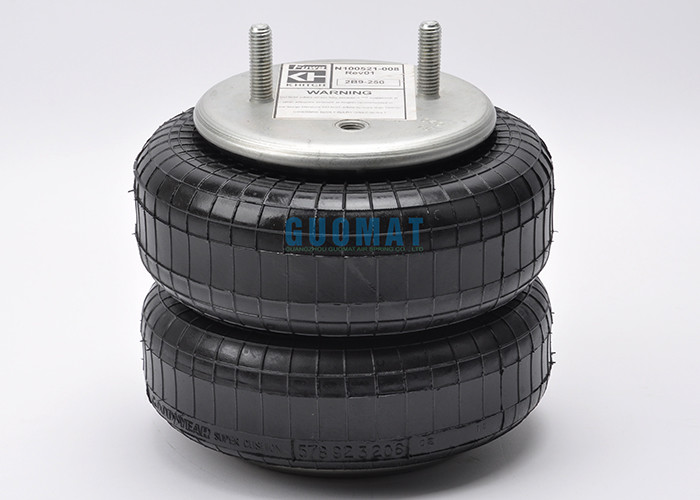

Double Convoluted Type Rubber Bellows Suspension Spring 2B9-250 Goodyear Airbag/Air Spring

Detailed Description For Goodyear 2B9-250 Air Spring

GUOMAT Part Number : 6943

Brand: Goodyear

Bellows NO.:578-92-3-206

Warranty:12 Months

Material:Rubber and Steel

Color:Black

Payment:LC/TT/Western Union

Package:Strong Brown Carton

Delivery Time:About 2-8 working days after receive your payment

Shipping method:By sea,by air,by express(DHL/UPS/EMS/Fedex)

Manufacturer Number

Technical Data Goodyear 2B9-250 Air Suspension Spring

Side View With Extended And Compressed Height	Upper Mounting View	Lower Mounting View
Working Stroke:12.2inches~3.5 inches(309.88mm-88.9mm)	Top Cover Plate Diameter:6.40 inches(162.56mm)	Bottom Cover Plate Diameter:6.40 inches(162.56mm)
The Maximum Height:12.2 inches (309.88mm)	Center Distance Between Studs On Top Cover Plate :3.50 inches(88.9mm)	Distance Between Threaded Holes At The Bottom Cover Plate:3.5 inches(88.9mm)
The Minimum Height:3.5 inches (88.9mm)	Center Distance Of Stud And Air Hole On Top:1.75 inches (44.45mm)
Compressed Height:8.7inches (220.98)

Precautions for Safe Use of Goodyear Air Springs

Air springs have a long history of use, and the manufacturing process of air springs is also very cumbersome. Therefore, during the temporary use process, we must protect them well. Even if the air springs are not easily damaged, accidents should still be avoided.

1. Avoid sharp sharp weapons, as long as they are mutually mortgaged with strength, there will be ruptures. If ruptures occur and are not found in time, they will be installed in the wheel, which may cause damage during our trip. Dangerous, even life-threatening in severe cases. The importance of the inflation experiment Since it is an air spring, we must ensure that the air inside the spring is very full, and the core film of the spring is complete to prevent undiscovered situations after rupture.
2. How can we test the core film of the spring? The most effective way is to pump air like the core film to check if there is any air leakage? If there is air leakage, it means that the core membrane is damaged, it must be replaced in time to ensure safety.

Guomat Have Other Related Air Spring

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
