    0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : F-200-2R
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press

    Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press


    Quick Details


    Product Name:Double Convoluted Air Spring

    Size:Standard

    Part Number:F-200-2R

    Warranty:12 Months

    Color:Black

    Net Weight:2.5KG

    Gross Weight:3.0KG

    Package Size:120mmX260mmX260mm

    Compressed height:65mm

    Maxumum Height:130mm

    Full Stroke:65mm

    Working Medium:Water,Air


    Technical Data Purchase Order Data


    GUOMAT NO.Reference NO.Height H(mm)Common Maximum Travel (mm)Compression Max Outside Diameter (mm)Effective Area (cm2)Volume (L)
    Design Height (mm)Max Height (mm)Min Height (mm)
    F-200-4S-200-4206311111±702603157.2
    F-200-3S-200-315223282±532603155.2
    F-200-2S-200-29814853±352603153.2

    GUOMAT NO.Reference NO.

    Load

    (KN)

    Dynamic Spring Constant

    (n/mm)

    Natural Vibration Frequency

    (Hz)

    Maximum Internal Pressure

    (MPa)

    Internal Pressure Failure(MPa)
    F-200-4S-200-415.41771.70.882.9-3.9
    F-200-3S-200-315.42352.00.882.9-3.9
    F-200-2S-200-215.43732.50.882.9-3.9

    Who We Are

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.


    What We Do

    We always focus on the development of automotive components, and provide you with quality products and competitive prices.
    If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know.
    We are looking forward to establishing business with you.


    Packing Detail

    1. One piece in a poly bag.1piece in a carton.

    2. Mark the product numbers and the QTY outside the carton.

    3. As your requirement.


    Marking

    1. Be possible to mark your logo as request.

    2. No specified, will mark our Logo as standard.

    3. OEM is accepted.

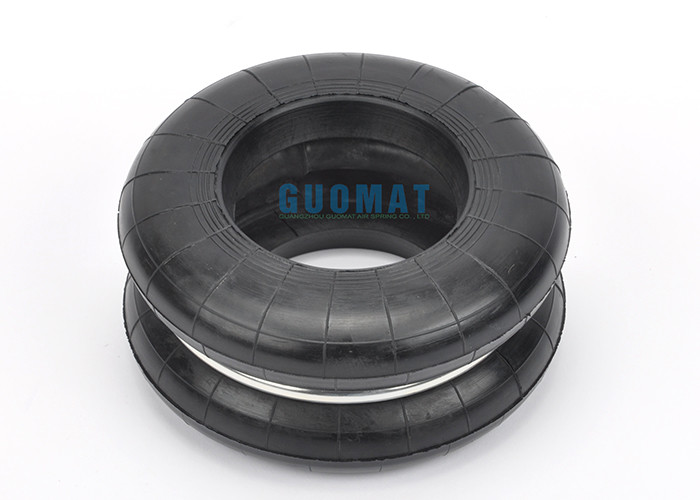

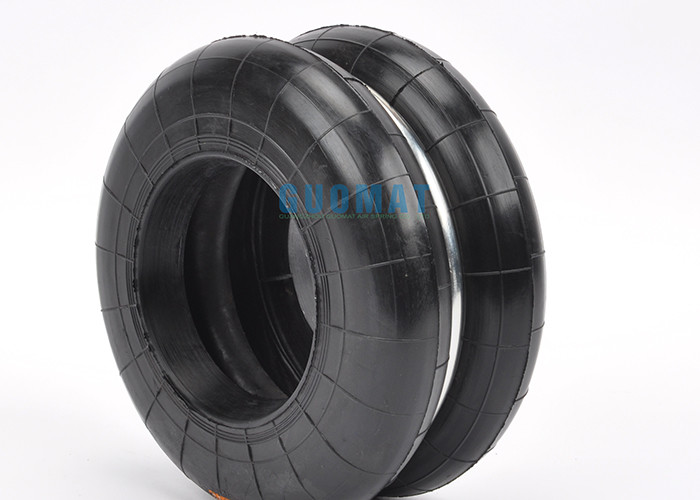

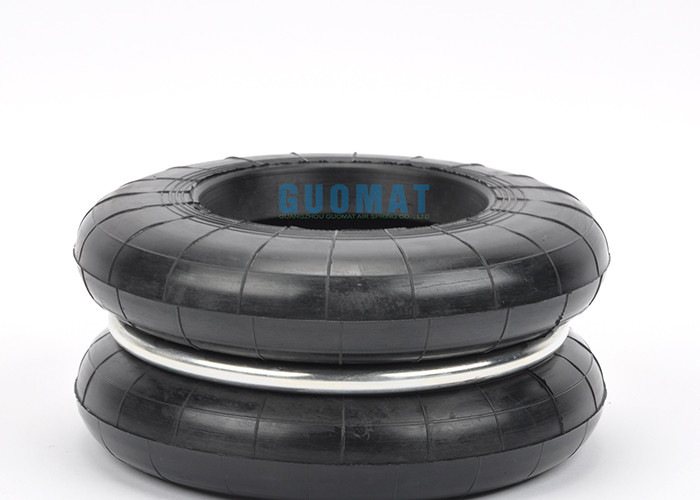

    Product Images

    0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press0.88Mpa Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press

    FAQ


    1. Are you a Manufacture factory?

    Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.

    2. What is your main products?

    Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

    3. Is the sample available?

    Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

    4. What is your warranty term?

    Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.

    5. Can i use my own logo and design on products?

    YES,OEM is welcomed.

    6. I can not find out the items what i want from your website, can you offer the products i need?

    YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
