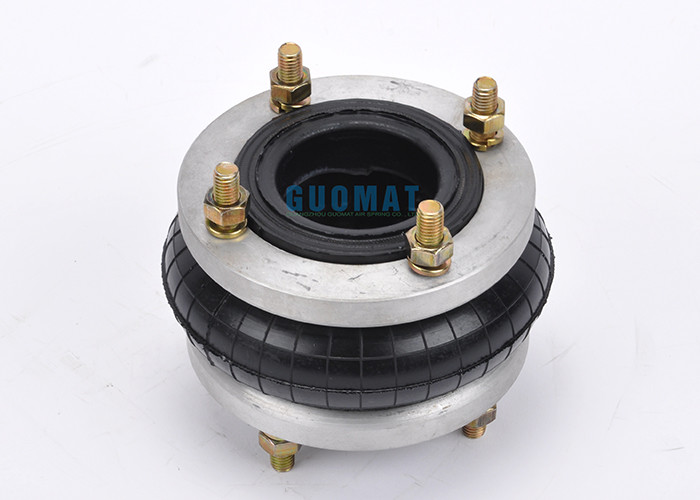

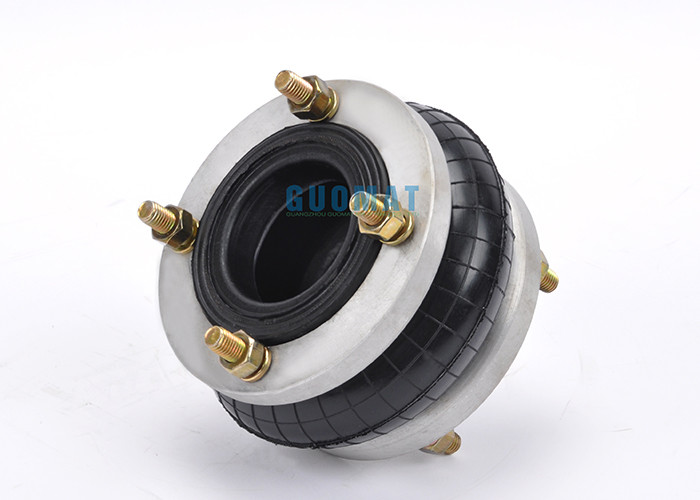

150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension

Product Details

150076H-1 Technical Detailed Data

Cover Plate
Top Cover Plate Diameter:133mm
Bottom Cover Plate Diameter:133mm

Gas Hole/Air Inlet/Air Hole
Gas Hole/Air Inlet /Air Hole:---

Rurrber Bellows
Rubber Bellows MAX Diameter:160mm
The Working Stroke:MAX 85 mm to MIN 46mm
Maximum Height:85mm
Minimum Height:46mm
Stroke Height:39mm

Blind Nut
Top Cover Plate Screw(Nut):4pcsxM10
Bottom Cover Plate Screw(Nut):4pcsxM10
Top Cover Plate Screw(Nut) Distance:109mm
Bottom Cover Plate Screw(Nut) Distance:109mm

150076H-1 Technical Parameters Table

About Air Spring With Flange
Flange connection Flange connection is to use a flange at both ends of the valve to connect with the flange on the pipeline by installing bolts on the pipeline. Flange connection is the most common form of valve connection.



Company Profile

Guangzhou Guomat Air Spring Co., Ltd.

1.We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
2.We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
