    W01-358-7424 Air Suspension Spring 2B12-300 Air Spring Air Balloons For VOL-VO 3130504

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : W01-358-7424
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-358-7424 Air Suspension Spring 2B12-300 Air Spring Air Balloons For VOL-VO 3130504

    Air Bag W01-358-7424/Air Suspension Spring 2B12-300/Air Spring Air Balloons For VOL-VO


    Product Information

    Cross OEM Original Equipment Manufacturer
    Firestone
    W01-358-7424
    Contitech
    FD 330-22 327
    Goodyear
    2B12-300
    Triangle
    6316/4327
    Brake & Wheel
    M3509
    Dayton
    3547424
    Leland
    Sc2024
    Navistar
    554785C1
    Hendrickson
    S13043
    Ridewell
    1003587424C
    SAF Holland
    Tc1442
    Tuthill
    6421
    Watson&Chalin
    As0009
    Neway
    90557014(AL-41&45)
    R&S Truck & Body
    1090215
    Sauer
    P10-755
    VOL-VO
    3130504

    2B12-300 Goodyear Air Spring Technical Data

    Blind Nut

    Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC

    Screw Center Distance of Top Cover Plate:157.5mm

    Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm


    Gas Hole/Air Hole/Air Inlet/Air Fitting

    Gas Hole/Air Hole/Air Inlet:1/4NPT

    Center Distance Between Air Inlet And Nut:73MM


    Cover Plate

    Top Cover Plate Diameter:231mm/9.00 inches

    Bottom Cover Plate Diameter:231mm/9.00 inches


    Rubber Bellows

    Rubber Bellows MAX. Diameter:325mm/12.9 inches
    Rubber Bellows Natural Diameter :298 mm/11.7 inches

    The Working Stroke:MAX305mm to MIN 81mm

    Maximum Height:305mm/12 inches

    Minimum Height:81mm/4.12 inches

    Compression Height:224mm/8.8 inches


    Air spring are being used in industrial applications as pneumatic actuators that play important roles in some of the most innovative modern machine design. Because of the Air spring actuators durability, resiliency in abrasive environments and overall performance, these can serve as replacements in applications using traditional pneumatic and hydraulic cylinders.

    Company Information

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.


    Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump.


    GUOMAT Other Related Products


    FirestoneContitechGoodyearPhoenix
    W01-M58-6165FS 120-9
    W01-M58-6166FS 120-9
    SP 1 B 07
    W01-358-7731
    W01-M58-6374FS 200-10SP 1B 12
    FS 70-7SP 1 B 05
    W01-358-7008FS 330-11 4741B12-300/313
    W01-358-7009FS 330-11 4681B12-301/578913301
    W01-358-6994/19FS 330-11 647
    FS 40-6 1/8 M8SP1B04
    W01-358-7564FS120-101B8-550
    W01-358-6932FD 200-19 4522B9-246
    W01-358-6935FD 200-19 4992B9-201
    W01-358-6940FD 200-19 4502B9-230
    W01-358-6941FD 200-19 4482B9-265/280
    W01-358-6949FD200-19506
    W01-358-7788FD 200-19 5102B9-245

    Packing & Shipping

    The goods can be shipped by Sea/Air/DHL/UPS/FEDEX/WMS or other methods.

    Payment Terms:Paypal,bank'transfer,Western Union,T/T and L/C are avaiable.

    There are different payment methods in different countries and regions.


    (1)Your goods will be shipped to you in 2- 8 working days after payment received,the shipping model will be

    DHL,TNT,FEDEX which is fast and safe,it takes about 5-10 days to arrive at most countries in the world.


    (2)We hope it arrive on time but since this is an international delivery, it depends on the logistic company and local customers

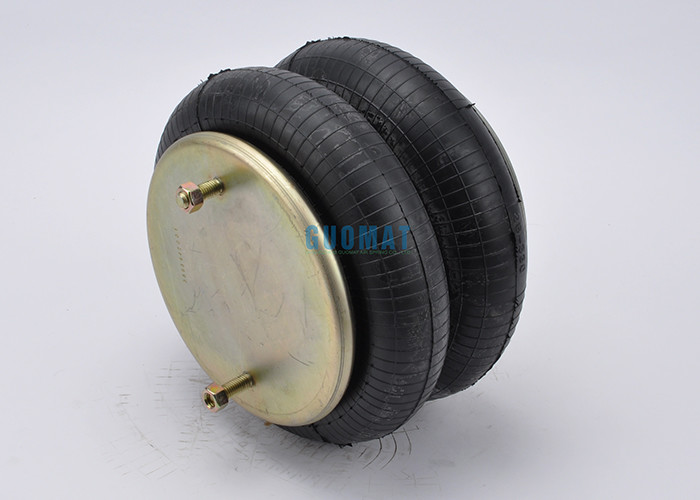

    Product Image
