    W013586910 Suspension Air Spring For Hendrickson Double Convoluted Airbag

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : W01-358-6910
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W013586910 Suspension Air Spring For Hendrickson Double Convoluted Airbag

    Air Spring W013586910,Air Suspension Spring For Hendrickson,Firestone Double Convoluted Airbag


    Air Spring 2B6910

    ItemAir Spring
    Model No.2B6910
    BrandGUOMAT
    Suitable CarHendrickson/SAF Holland/Watson&Chalin/Navistar
    Bellow MaterialNatural Rubber
    MOQ1 pcs if we have stock
    PackageBrown Carton
    OEM NumberFirestone W01-358-6910,Contitech FD 200-19 320,Goodyear2B9-200/202/216,Goodyear 578423202,Triangle6325/4320,Taurus KF218-6910

    Brake & Wheel : M3501

    Dina : A812719/AZ812719

    Dayton : 3546910

    Leland : Sc2011

    Navistar : 554783C1

    Hendrickson : S8768/458433

    Ridewell : 1003586910C

    SAF Holland : 57006910

    Trailers De : 133128

    Tuthill : 1371

    Watson&Chalin : AS-0001/AS-0156G


    Air Spring 2B6910 Technical data

    Top Cover Plate Diameter:160mm
    Bottom Cover Plate Diameter:160mm
    Gas Hole / Air inlet:1/4NPTF
    Rubber Bellows MAX Diameter:251.5mm
    Rubber Bellows Natural Diameter:224mm
    The Working Stroke:MAX 260 mm to MIN 75 mm
    Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
    Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
    Screw Center Distance of Top Cover Plate:89mm
    Screw Center Distance of Bottom Cover Plate:89mm
    Screw And Gas Hole Distance of Top Cover Plate:44.5mm

    Benefits for your vehicles by using our rubber air suspension spring


    1. Reduces cab, truck body, and trailer damage

    2. Reduces need for electrical and other repairs and maintenance

    3. Reduces wear and tear on tires, axles, and transmissions

    4. Reduces vehicle and fleet downtime

    5. Extends life of truck and trailer

    6. Protects hinges, lights, rivets, and trailer hardware

    7. Provides greater comfort and safe for the driver

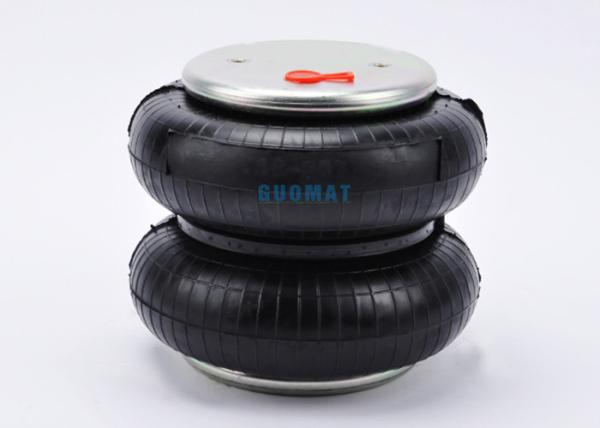

    Product Image Display
