Goodyear 1B9-202 Industrial Air Spring Single Convoluted Bellows 578913201

Quick Details

Product Top Parameter

Top cover plate diameter:160mm

Screw center distance of top cover plate:89mm

Screw and Air hole distance of top cover plate:44.5mm

Air hole:1/4-18NPTF

Top cover plate screw(nut)tooth:2x3/8-16UNC

Top cover plate diameter:160mm

Product Bottom Parameter

Screw center distance of bottom cover plate:89mm

Bottom cover Plate diameter:160mm

Bottom cover plate screw(nut)tooth:2x3/8-16UNC

Rubber Bellows

Rubber bellows MAX diameter:222mm

The working stroke:MAX 160mm to MIN 60mm

Maximum height:160mm

Minimum height:60mm

G3/4 Goodyear 1B9-202

Top cover plate diameter:160mm

Bottom cover Plate diameter:160mm

Screw center distance of top cover plate:70mm

Screw center distance of bottom cover plate:70mm

Air hole:G3/4

Top cover plate screw(nut)tooth:2XM8X1.25

Bottom cover plate screw(nut)tooth:2XM8X1.25

Rubber bellows MAX diameter:222mm

The working stroke:128mm

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

• The products features low cost, wide use and easy operation.

• It achieves long service life, and requires no maintenance and lubrication.

• This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

• It comes with no friction and soft medium.

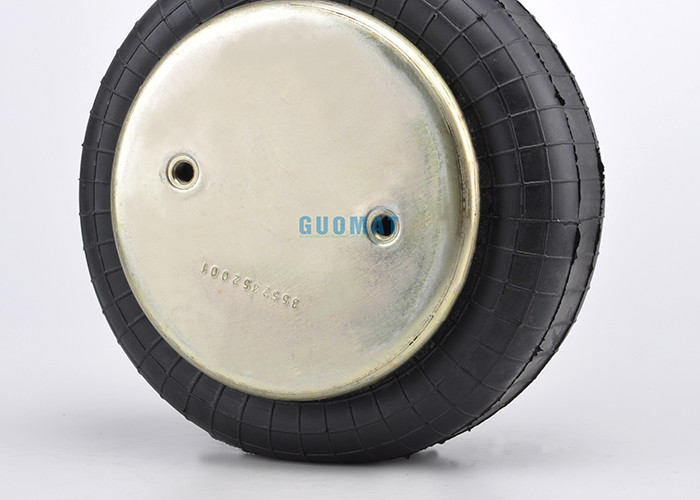

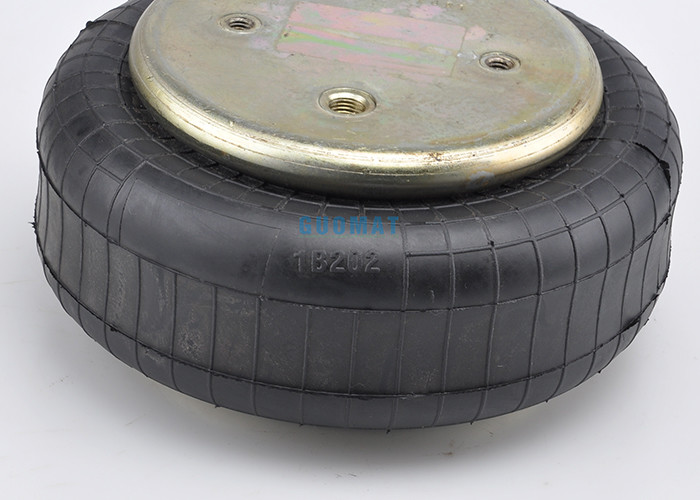

Product Picture Of 1B202 Air Spring

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
