Industrial Air Spring Firestone W01-358-7008 / Air Bellows FS330-11 474/Goodyear 1B12-300/313

Product Information

Cross references are not a guarantee that a part will fit a specific application. Please check available information before replying on a cross reference to make a purchase.

Applications

Various applications for the vehicle industry such

---as steering damping, engine vibration damping, belt

---tensioning damping for engines and on driver seats in commercial vehicles, etc.

On household products such as washing machines

Special shock absorbers for bicycles

On commercial lawn movers

In the medical equipment industry ie. on wheelchairs

Detailed Data Drawing of Product

Air Spring Cover Plate Data

Top Cover Plate Diameter:231mm

Between Threaded Hole Distance on Top:157.5mm

Between Threaded Hole And Air Inlet Distance:73mm

Bottom Cover Plate Diameter:231mm

Between Threaded Hole Distance on Bottom:157.5mm

Air Spring Screw(Nut) Tooth Data

Screw(Nut) on Top Cover Plate:2X3/8-16UNC

Screw(Nut) on Bottom Cover Plate:2X3/8-16UNC

Air Spring Gas Hole/Air Inlet

Gas Hole/Air Inlet:1/4 NPTF

Air Spring Rubber Bellows Data

Rubber Bellows MAX Diameter:325mm

Air Spring Working Stroke Data

The Working Stroke:55mm~160mm

The Maximum Height:160mm

The Minimum Height:55mm

The Compressed Height:105mm

GUOMAT produces other kinds of truck air spring shocks:

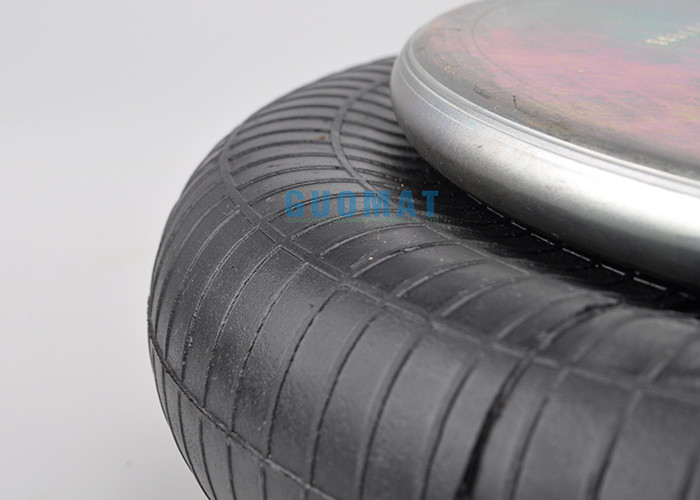

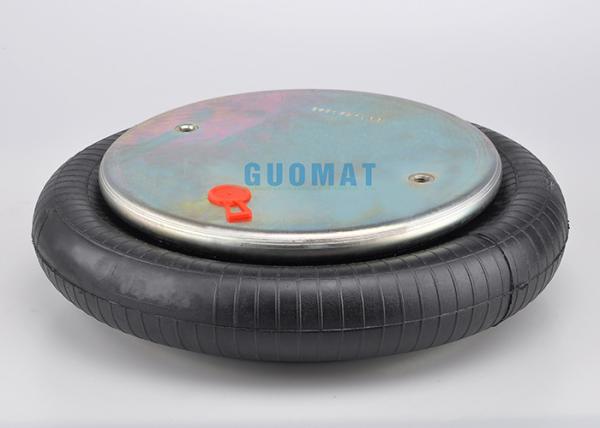

Product Images

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
