Firestone Double Convoluted Air Ride Suspension Spring
W01-358-6890/20
Main Products:Air Spring,Convoluted Air Spring,Industrial Air
Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber
Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric
Water Pump.
The product are widely used in many
industries:Automotive,heavy-duty vehicle,commercial,wtc.
After years of growth,we have won the good reputation from our
customer from all over the world by our excellent quality,intimate
service and fast.
Product name:Air Spring
Warranty:12 Months
Firestone:W01-358-6890/20
Contitech : FD 200-19 539
Goodyear:2B9-606
:578923211
Neway :90557228
Euclid/Meritor After market: E-FS6890
Note: V-Steer I (lift Bag)
Refer Numbers
| W01-358-6890 |
| W01-358-6820 |
| W013586890 |
| W013586820 |
| W01,358,6890 |
| W01,358,6820 |
| FD 200-19 539 |
| FD20019539 |
| 2B9606 |
| 2B9-606 |
| 578923211 |
| 90557228 |
| E-FS6890 |
| EFS6890 |

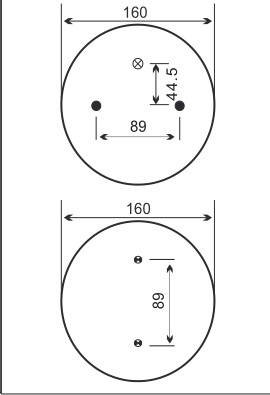

Detailed Data Drawings For W01-358-6890
Cross Section View Top View Bottom View
Rubber Bellows MAX Diameter:251mm
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Between Bolt(Nut) Distance on Top Cover Plate:89mm
Between Bolt(Nut) And Air Inlet Distance on Top Cover Plate:44.5mm
Between Threaded Hole Distance on Bottom Cover Plate:89mm
Screw(Nut) Tooth on Bottom Cover Plate:2 X3/8-16UNC
The Air Spring Working Stroke :81mm~274mm
The Maximum Height:274mm
The Minimum Height:81mm
The Compression Height:193mm
Air Spring Components
Inside the World’s No. 1 Air Spring:
Airide springs are available in single, double and triple
convolution types plus reversible sleeve models for virtually every
conceivable heavy-duty vehicle suspension application.
- Stud - Manufactured as a permanent part of the bead plate assembly
for maximum strength and durability. Used to attach the spring to
the vehicle’s suspension.
- Combo Stud - Serves the dual purpose of mounting the spring to the
suspension and providing an entrance for air.
- Blind Nut - Also a permanent part of the bead plate assembly.
Provides an alternative mounting system to the stud.
- Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the
bellows.
- Bead Plate - Crimped onto the bellows at the factory for a more
durable design and maximum quality control. Allows 100% leakproof
testing prior to shipment.
- Bellows - The 'air bag' includes four plies of material: an inner
layer, two plies of cord-reinforced fabric, and an outer cover.
Natural rubber construction provides functional properties to –65F.
- Bumper - A solid rubber or engineered plastic device designed to
prevent significant damage to the vehicle or suspension in the
event of a sudden loss of air pressure in the spring.
- Piston - Provides a lower mounting arrangement for the air spring.
Controls the characteristics of the spring under changing pressure
loads.
- Piston Bolt - Attaches the piston to the bellows. Sometimes
extended as a means of attaching the spring to the vehicle
suspension.
- Girdle Hoop - A wire-wound ring molded into the bellows to provide
lateral stability in convoluted type springs.
Composite Piston - Firestone offers a composite fiberglass
reinforced plastic piston into its reversible sleeve Airide springs
for bus suspensions.
These pistons are manufactured from a high percentage, glass filled
thermosetting resin using stateof-the-art SMC technology. Compared
to conventional steel or aluminum pistons, they are lighter, more
impact-resistant, and impervious to atmospheric corrosion, water,
salt, and ice-melting chemicals, plus their smooth non-porous
surface finish virtually eliminates the buildup of harmful dirt and
grit. This allows the rubber bellows of the air spring to last much
longer due to significantly reduced wear as the bellows flexes up
and down the smooth piston. At temperatures as low as -40°F, the
new pistons are 100% functional.

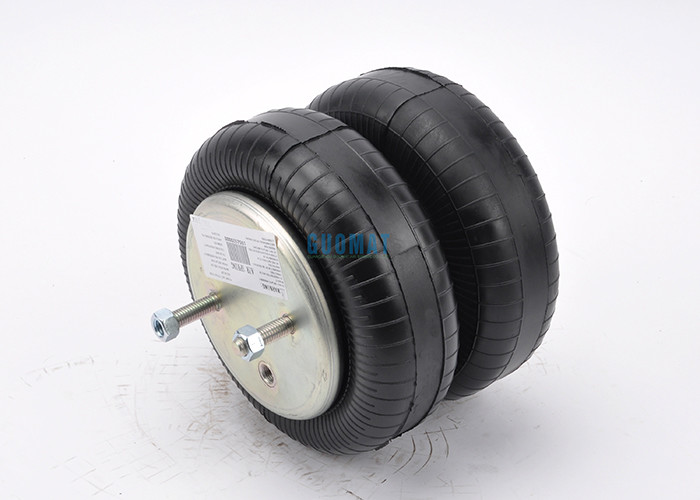

Product Picture
