Brand Name : | GUOMAT |
Model Number : | 644 |
Certification : | ISO/TS16949:2009 |
Price : | $19-29/pc |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 1000pcs/week |
Delivery Time : | 2-8 work days |

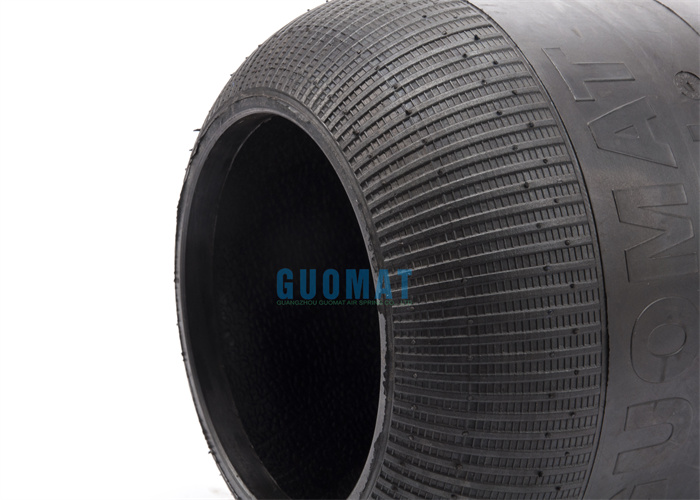

Wholesale 395Mm Bus Air Spring Firestone W010950118 Contitech 644N
Bellow Air Shock Suspension
CROSS REFERENCES OEM REFERENCES | CROSS REFERENCES OEM REFERENCES |
CONTITECH 644N | BPW 02.200.24.40.0 |
FIRESTONE 1R1A 390 295 W01 095 0118 | BUSSING 536905265 |
GOODYEAR 8017 | DAF 0 689677 |
PHOENIX 1,00E+021 | EVO 4.771.143.000 |
DUNLOP UK PNP301470101 | EVO 4.771.170.000 |
DUNLOP FR D11 S01 | EVO 4.771.441.000 |
CF GOMMA 1S285-24-92574 | EVO (MB) A0003270101 |
TAURUS BL121 | EVO (MB) A3073280001 |
TAURUS B121 | HANOMAG-HENSCHEL 546905134 |
MAGIRUS-DEUTZ 536905265 | |
MAN 81,43601,0017 | |
MENARRINI 199196 | |
MERCEDES-BENZ A0003270101 | |
NEOPLAN 100110300 | |
NEOPLAN 100112254 | |
VAN HOOL 624319-420 | |
VAN HOOL 624319-610 | |
VOL-VO 1 134445 | |
VOL-VO 1 199893 |
644N Technical parameters
Minimum height / h min 155 mm
Maimum height / h ma 415 mm
Maimum diameter /d ma 300 mm
Required Space diameter / d R 325 mm
Natural height / h 275 mm
Nominal working pressure : 5.0-6.0bar
maximum working pressure : 7.0bar
space envelope diameter : 315mm
maximum height: 420mm
Assembly height: 170mm - 290mm
Minimum height: 160mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 2995kg
![]() |
