    715N Contitech Air Suspension Bellow W01-095-0087 Firestone Rubber Air Shock For Bus Truck Trailer

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 715N
    Certification : ISO/TS16949:2009
    Price : $19-29/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

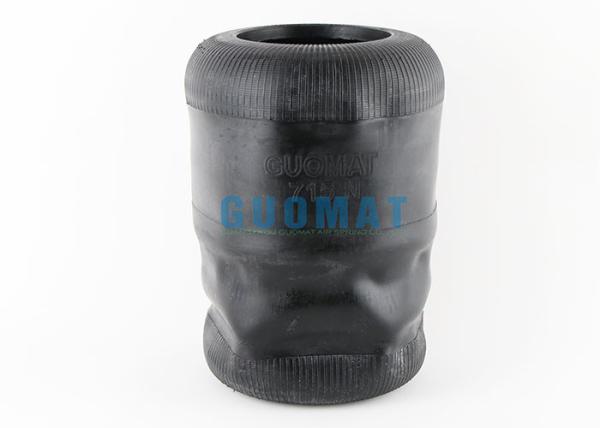

    715N Contitech Air Suspension Bellow W01-095-0087 Firestone Rubber Air Shock For Bus Truck Trailer

    715N Contitech Air Suspension Bellow W01-095-0087 Firestone Rubber Air Shock For Bus/Truck/Trailer


    Product Description


    GUOMAT: 715N

    Natural Height: 350mm

    Rubber Bellow Natural Diameter: 265mm

    Nominal Diameter: 150.8mm


    Suggestions for Construction (Technical Data)

    Weight: 2.0kh

    Design height: 275mm

    Deflection(Height min): 195mm

    Deflection(Height max): 410mm

    Working dtroke: 215mm

    Measurement d max: 315mm

    Space required: 335mm

    Loading cap. at 0.3 bar: 1.5kN

    Loading cap. at 7.0bar: 35.0kN


    Cross Information

    CONTITECH 715N / 715 N

    FIRESTONE STYLE NUMBER 1R1C335-310

    FIRESTONE ORDERNR W01-095-0087 / W01 095 0087 / W010950087

    FIRESTONE ORDERNR WO1-095-0087 / WO1 095 0087 / WO10950087

    GOODYEAR 8015

    PHOENIX 1F25 / 1 F 25

    TAURUS B144 / B 144

    DUNLOP UK PNP304890101 / PNP 304890101

    CF GOMMA 1SC310-16 / 1 SC 310-16

    CF GOMMA 93518


    OEM Information

    DAIMLER CHRYSLER A3633280001 / A 363 328 00 01

    IVECO 445.6111

    IVECO 4763473

    IRIS/RVI 15.000.819.517

    DAF 659 561 / 659561

    MAGIRUS-DEUTZ 4456111

    MERCEDES 3633280001 / 363 328 0001

    RENAULT V.I 5000819517

    VOL-VO 6885533

    MAN 81.43601.0059

    MAN 81.43601.0060

    MAN 81.43601.0061

    MAN 81.43601.0075

    MAN 81.43601.0078

    MAN 81.43601.0081

    MAN 81.43601.0083

    MAN 81.43601.0090

    MAN 81.43601.0113

    MAN 81.43601.0115

    MAN 81.43601.0117


    Rubber Air Bellow Application

    Contitech

    Application

    1888N

    MAN 81436010163

    975N

    ZF,EVO-BUS

    945N

    SCANIA,IVECO

    928N

    VOL-VO,SCANIA,IVECO

    927N

    VOL-VO,DENNIS LEYLAND

    916N

    MAN

    897N

    SCANIA,DENNIS,PEGASO

    896N

    SCANIA,DENNIS

    882N1

    MAN,DAIMLER CHRYSLER

    786N

    MAN,ANKAI

    782N

    BENZ,RENAULI V.I, IVECO

    769N

    IRIS,RENAULI V.I


    How to install the bus air spring

    • Locate the air spring: The air spring is typically located between the axle and the frame of the bus. Before proceeding with the installation, ensure that the air spring is the correct model for your vehicle.
    • Remove the old springs: The old spring must be removed to install the air spring. Loosen the nuts and bolts that hold the old springs in place and slowly remove the old spring.
    • Prepare the air spring: Before installing the air spring, ensure that it is appropriately inflated to prevent any issues. Instructions for inflating the air spring can be found in the manufacturer's manual.
    • Install the air spring: Position the air spring correctly by aligning the holes with the bolts on the vehicle's chassis. Tighten the nuts and bolts securely.
    • Test the air spring: Once the air spring is installed, test it to make sure it is functioning correctly. Ensure there are no signs of leakages, and the vehicle's suspension system is working correctly.
