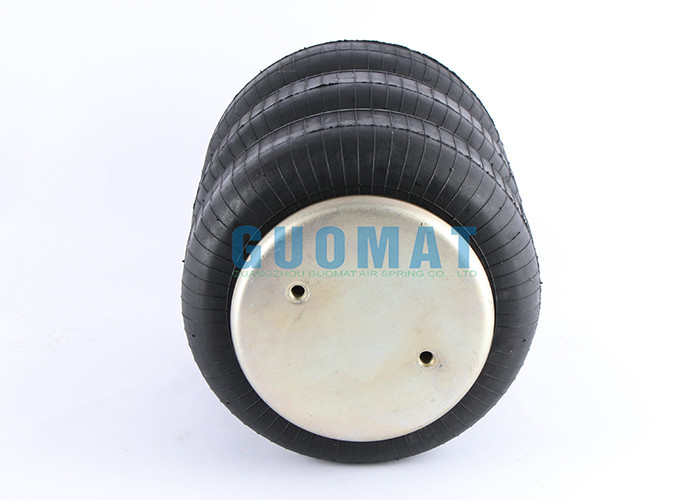

Standard Size 3B20F-2P03 Triple Convoluted Rubber Air Bellows Navigator 340mm Height Airbag

Product Description

Technical Data : GUOMAT 3B20F-2P03

Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet: 1/2NPT
Screw center distance between air hole and nut: 44.5 mm

Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 223 mm
Working stroke: minimum 200 mm to maximum 400 mm
Maximum height: 400 mm
Minimum height: 200mm
Stroke height: 200mm

Preventative Maintenance Air Springs
1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness

How to Order ?

3B20F-2P03 Triple Convoluted Rubber Air Spring
