SACHS Truck Cab Air Suspension 105856 Rear Air Shock Absorber For MAN F2000 81.41722.6049

Product Description

Original Equipment Number/OE Number

MAN OEM 81.41722.6049

MAN OEM 81.41722-6049

MAN OEM 81.41722.6052

MAN OEM 81.41722-6052

Reference Number

SACHS 105 856

SACHS 105856

SACHS 72 1700 105 856

SACHS 721700105856

Airtech 204001K
Connect CA 11005

This Part is Suitable for the Following Truck Model

Cause of Air Spring Damage

• Fittings can break or threads be damaged caused by over-torque. (Note: grease or lubrication on the threads can affect the torque and may cause damages). Air spring system can be twisted.

• The air spring is operated outside the maximum rebound range as a result of unrestrained (missing end stop) or excessive axle travel (defective / improperly adjusted height levelling system or wrong air spring). The abuse may result in separation of the bellows from upper or lower mounting parts.

• Bellows in contact with other components (e.g. defective parts) of the vehicle or foreign objects (e.g. dirt, stones) that accumulate at the piston/ rolling part of the bellow. They may rub through the bellows during spring deflection.

• When overloading the vehicle the height levelling valve will open to adjust vehicle height by increasing the pressure inside the air spring up to max system pressure available. The improper usage of the air spring system outside the recommended pressure range may cause
  deformation or damage to the bellows, piston and/ or bead plate.

• When overloading the vehicle the height levelling valve will open to adjust vehicle height by increasing the pressure inside the air spring up to max system pressure available. The improper usage of the air spring system outside the recommended pressure range may cause deformation or damage to the bellows, piston and/ or bead plate.

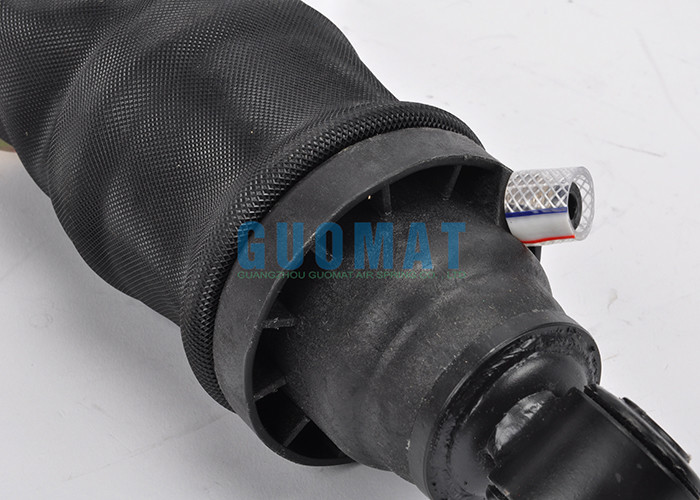

GUOMAT Truck Cab Air Shock Absorber Rear Pictures

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
