Goodyear Air Spring Cushion Suppliers 2B6-833 Air Ride Suspension
579-922-833
Product Description
Item: Goodyear Air Spring
Material: Rubber+Iron
Warranty: 1 Year
MOQ: 10 Pieces
Color: Balck
Application: For Small Press Machine
Package: According to customer requirement
Shipping: Huangpu Port
Original Equipment Manufacturer Number
GOODYEAR Manufacturer Part Number 2B6-833
GOODYEAR Manufacturer Part Number 2B 6-833
GOODYEAR Manufacturer Part Number 2B6833
GOODYEAR Manufacturer Flexmember 579922833
GOODYEAR Manufacturer Flexmember 579 922 833
GOODYEAR Manufacturer Flexmember 579-922-833
GOODYEAR Manufacturer Flexmember 579923510
GOODYEAR Manufacturer Flexmember 579 92 3 510
GOODYEAR Manufacturer Flexmember 579-92-3-510
Goodyear Air Spring Super-Cushion
Goodyear 2B14-470, Bellows Number 578-92-3-356
Goodyear 2B14-476, Bellows Number 578-92-3-356
Goodyear 2B14-479, Bellows Number 578-92-3-356
Goodyear 3B12-312, Bellows Number 578-92-3-100
Goodyear 3B12-315, Bellows Number 578-92-3-100
Goodyear 3B12-319, Bellows Number 578-92-3-100
Goodyear 3B12-324, Bellows Number 578-92-3-100
Goodyear 3B12-322, Bellows Number 578-93-3-103
Goodyear 3B12-323, Bellows Number 578-93-3-103
Goodyear 3B12-325, Bellows Number 578-93-3-103
Goodyear 3B12-326, Bellows Number 578-93-3-103
Goodyear 3B12-347, Bellows Number 578-93-3-103
Goodyear 3B14-356, Bellows Number 578-93-3-350
Goodyear 3B14-359, Bellows Number 578-93-3-350
Goodyear 3B14-360, Bellows Number 578-93-3-350
Goodyear 3B14-361, Bellows Number 578-93-3-350
Goodyear 2B6-530, Bellows Number 579-92-3-510
Goodyear 2B6-535, Bellows Number 579-92-3-515
Goodyear 2B7-540, Bellows Number 579-92-3-525
Goodyear 2B7-541, Bellows Number 579-92-3-525
Goodyear 2B7-542, Bellows Number 579-92-3-525
It is use in a wide variety of actuation and vibration isolation.
With time-tested designs incorporating fabric-reinforced or natural
rubber flex-member construction and corrosion-protected and
retainers, Air Springs provide superior quality and performance.
As an actuator, Air Springs can provide either linear or angular
motion.
These air springs offer a favorable stroke-to-compressed-height
ratio when compared to air cylinders, and can accept a wide variety
of actuation media such as air, water, nitrogen or anti-freeze.
Preventative Maintenance Air Spring
1 | Check the outside diameter of the air spring. Check for irregular
cracks. |
2 | Check the air pipe. Verify that the air tube does not have any
contact with the outer diameter of the air spring. |
3 | When the air spring is at the maximum outer diameter, check whether
the clearance around it is sufficient. |
4 | Check whether there is foreign matter accumulation on the outer
diameter of the piston |
5 | The correct suspension height should be maintained. |
6 | The height valve (height control valve) plays an important role in
keeping the entire air spring system working as required. Clean,
inspect or replace as necessary. |
7 | Check whether the shock absorber is installed correctly, and check
whether there is oil leakage and whether the end connection parts
are damaged. |
8 | Check all mounting hardware (nuts, screws) for tightness |

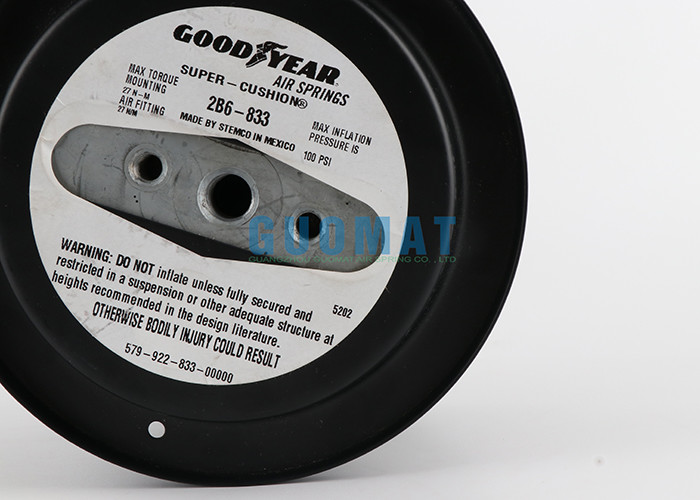

The Real Pictures of Goodyear 2B6-833 Double Convoluted Air Spring
