4882N1P05 Contitech Truck Suspension Air Spring 81.43600.6036 MAN Rubber Air Balloon Airbas
Product Description
CONTITECH Part Number: 4882N1P05
CONTITECH Part Number: 4882 N1P05
CONTITECH Part Number: 4882 N1P 05
AIRTECH Part Number: 34882K
AIRFREN Part Number: 20.4884.5CM
DT Part Number: 3.66422
TEMPLIN Part Number: 04.010.6100.930
TEMPLIN Part Number: 04.060.6106.930
MAN Part Number: 81.43600.6036
4882N1P05 Contitech Air Spring Technical Data
Cover Plate Diameter: 262mm/10in
Air Inlet: M16X1.5
Bolt/Stud: M16X1.5
The Distance Between Air Holes: 70mm/2.8in
Piston Height: 130mm/5.1in
Piston Width: 177mm/7in
Features of Trailer Truck Air Spring
1. The stiffness of the air spring can be selected to a low value,
which can reduce the natural vibration frequency of the vehicle.
2. The air spring has nonlinear characteristics, and can be
designed into an ideal elastic characteristic curve according to
the needs of vehicle vibration performance. When compressive
deformation or tensile deformation occurs, the spring stiffness
increases to limit the vibration amplitude of the car body.
3. The stiffness of the air spring changes with the load, so that
the natural vibration frequency of the car body is almost equal
when the car is empty and loaded, and the running stability is
close.
4. The air spring has the performance of absorbing high-frequency
vibration and vibration isolation.
Additional Contitech Numbers
Contitech No. | Contitech No. | Contitech No. | Contitech No. |
4913NP02 | 4159NP06 | 810NTB | 4022NP02 |
836MB | 887M | 889MK2 | 4004NP02 |
6603NP02 | 4183NP23 | 4883N1P07 | 6609NP01 |
4718NP01 | 4838NP01 | 4838NP21 | 4838NP02 |
4838NP23 | 4757NP01 | 4757N1 | 4757N2 |
4757NP21 | 4757NP09 | 782NP04 | 813MB |
644NP04 | 661NP01 | 769MB | 881MB |
887MK1 | 887MBK6 | 4940NP02 | 4960NP02 |
4961NP02 | 940MB | 4962NP02 | 942MB1 |
4390N1 | 4390NP01 | 4390N2 | 4390NP02 |
4713NP02 | 4420NP01 | 6604NP01 | 6608NP01 |
4159NP03 | 4913NP04 | 912NP01 | 6605NP01 |
6606NP01 | 91016P449 | 4882N1P01 | 4884N1P01 |
4884N1P06 | 661NP01 | 661NP05 | 4022NP05 |
4390NP03 | 4390NP04 | 4390NP23 | 4390NP24 |
4390NP22 | 4912NP07 | 4390NP21 | 4158NP04 |
4158NP05 | 4157NP04 | 4157NP10 | 4157NP08 |
4810NP05 | 4023NP03 | 4810N04 | 4004NP03 |
4022NP03 | 4157NP05 | 4813NP07 | 4028NP05 |
912NP02 | 725NP01 | 4159NP03 | 6607NP01 |

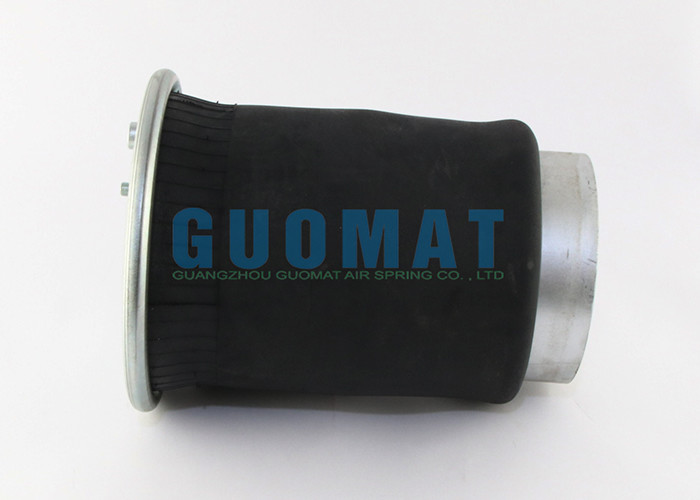

The Real Picture
![]() |
