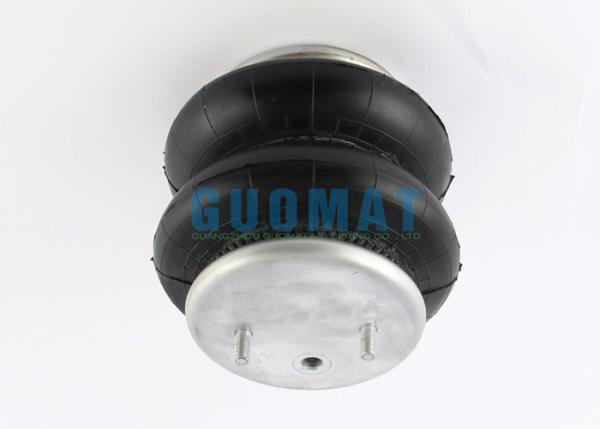

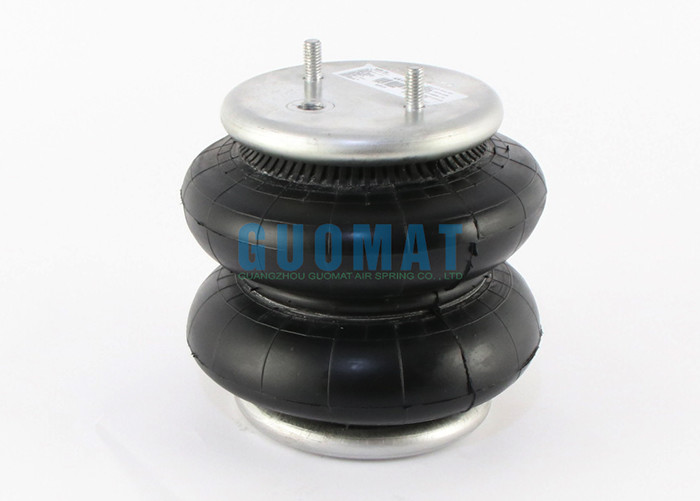

    Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B0335
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    MOQ : 10 Pcs
    • Product Details
    • Company Profile

    Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

    Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

    Product Description


    Product Type: Air Spring,Air Bag

    Truck Model: Heavy Duty Truck

    Material: Steel + Rubber

    Warranty: 12 Months

    Color: Black
    Place of Origin: Guangzhou,China
    Certification: ISO/TS16949:2009
    Packing: Neutral Packing
    Quality: High-Quality
    Position: Auto/Truck parts
    Application: Truck Suspension Systems

    OEM Reference Number

    GUOMAT

    2B0335

    Firestone

    A01-760-0335

    Firestone

    A01 760 0335

    Firestone

    A017600335

    WATSON & CHALINAS-0092
    ContitechFD200-19 510
    ContitechFD 200-19 510

    GUOMAT 2B0335 Air Spring Technical Data

    Working temperature

    -40°C bis +70°C

    Failure testing

    ≥3 millions

    Top Cover Plate Diameter

    Ø132mm

    Bottom Cover Plate Diameter

    Ø132mm

    Gas Hole / Air inlet

    3/8NPT

    Rubber Bellows MAX Diameter

    Ø203mm

    The Working Stroke

    MAX 1230 mm to MIN 75 mm

    Top Cover Plate Screw (Nut) Tooth

    2X3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth

    2X3/8-16UNC

    Screw Center Distance of Top Cover Plate

    Ø70mm

    Distance Between Screw and Air Hole

    Ø33mm

    Screw Center Distance of Bottom Cover Plate

    Ø70mm


    Our Advantage
    1. Wide product range (truck, bus, truck seat, industrial equipment and car suspension)
    2. Accept sample order, we can also make air spring according to drawing
    3. Affordable, safe and efficient logistics services
    4. Flexible payment methods
    5. One year guaranteed warranty


    GUOMAT Double Convoluted Rubber Air Spring

    GUOMAT NoOuter Diameter (mm)Max.Height (mm)Min.Height (mm)Firestone No.
    2B6926Max.25126075W01-358-6926
    2B6884Max.25127481W01-358-6884
    2B6890Max.25127481W01358-6890
    2B5243Max.25127495W01-358-6897
    2B6900Max.25126075W01-358-6900
    2B6902Max.25127495W01-358-6902
    2B6905Max.251.527495W01-358-6905
    2B6908Max.25127481W01-358-6908
    2B6910Max.25126075W01-358-6910
    2B6926Max.25127495W01-358-6926
    2B6932Max.25127495W01-358-6932
    2B6935Max.25127495W01-358-6935
    2B6940Max.25127481W01-358-6940
    2B6941Max.25127481W01-358-6941
    2B6949Max.25127495W01-358-6949
    2B7788Max.251.527495W01-358-7788
    2B7795Max.25127481W01-358-7795
    2B7892Max.25127481W01-358-7892
