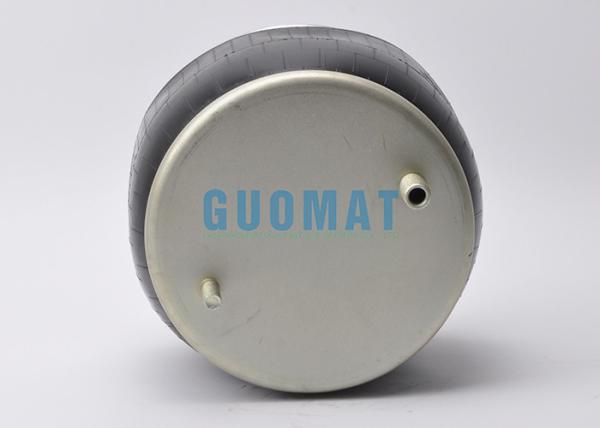

Firestone Truck Air Suspension Spring W01-358-9082 Replaces 1R12-092 Goodyear Air Balloon

Product Description

Part No.: 1T9082

Application: For Truck/For Trailer

Spring Type: Rolling Lobe

Material: Rubber/Metal

GUOMAT Warranty: 12 Months Warranty

MOQ: 10 Pieces

Prot: Huangpu Prot

The Following is the Cross Reference

• Firestone W01-358-9082

• Firestone W01 358 9082

• Firestone W013589082

• Contitech 910-16P310

• Contitech 910-16 P 310

• Goodyear 1R12-092

• Goodyear 1R12-093

• Goodyear 1R12-509

• Triangle 8310

• Taurus KR506-9082

• Airtech 132302

• Airtech 34156-05KPP

• Neway 90557006

• Neway 90557027

• Neway 90557037

• Neway 90557054

• Neway 90557075

• Dayton 352-9082

• Granning 15610

• HAD PMABG9082B

• R&S Truck 1090217

• Loadguard SC2035

• Hutchens H-9630-01

• Watson&Chalin AS-0011

• Ridewell 1003589082C

• ROR/Meritor MLF7114

• Hendrickson 35614-7

• Hendrickson 365147

• Hendrickson S11651

• Hendrickson B2066

• Hendrickson B-12514-007
• Batco 10-99082
• Binkley B-12514-007
• Euclid E-FS9082
• Holland 90557075
• Holland 90557054
• Holland 90557033
• Holland 90557027
• Holland 90557006
• Holland 90044200
• Mac-k truck 57QL310
• Navistar 517096C91

The Technical Data of GUOMAT 1T9082

1.Natural Diameter of Rubber Bellow: 305mm

2.Combo Stud: 1/4-18UNF ; 3/4-16UNF

3.The Bolt/Stud on Top Cover Plate: 1/2-13UNC

4.Distance between /BoltStud and Combo Stud: 140mm

5.Top Cover Plate Diameter: 230mm

6.Piston Height: 142mm

7.The Stroke: 200mm-540mm

8.Piston Width: 258

​Firestone Air Spring Bag ---Hendrickson

How to Maintain Air Springs
We should check the following during car maintenance (never try to repair the air spring when the air spring is filled with air pressure)

1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness

The Real Pictures

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
