    W01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7994
    Certification : ISO/TS16949:2009
    Price : $69.9-79.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air Spring

    W01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air Spring

    Product Description

    Firestone Part Number: W01-358-7994
    Firestone Part Number: W013587994
    Firestone Part Number: W01 358 7994
    Contitech Part Number: FT 330-29 546
    Contitech Part Number: FT330-29 546
    Contitech Part Number: FT 330-29546
    Contitech Part Number: 64572
    Goodyear Part Number: 3B12-328
    Goodyear Part Number: 3B 12-328
    Goodyear Part Number: 3B12 328
    Triangle Part Number: 4546
    Triangle Part Number: 6364

    Watson&chalin

    AS-0019-F

    Euolid/meritor After Market

    E-FS7994


    3B7994 Triple Bellow Air Spring Technical Data
    ♦Cover Plate
    Top Cover Plate Diameter: Ø231mm
    Bottom Cover Plate Diameter: Ø231mm

    ♦Combo Stud/Bolt
    Combo Stud: 1/4NPTF
    Combo Stud: 3/4-16UNF
    Threaded Hole of Top Cover Plate: 3/8-16UNC
    Threaded Hole of Bottom Cover Plate: 2X3/8-16UNC
    Combo Stud and Threaded Hole Center Distance of Top Vover Plate: 140mm
    Distance Between Threaded Holes of Bottom Cover: 157.5mm

    ♦Rubber Bellow
    Rubber Bellow Max Diameter: 330mm MAX.OD
    Rubber Bellow Max Height: 460mm
    Rubber Bellow Min Height: 160mm
    The Working Stroke: 330mm


    What is an air spring
    Air springs are the only load support products that provide both leveling capability and ride comfort. Only air springs can give you load support that can be adjusted to your specific load. Fill up when driving with a full load to keep your vehicle level for a safer, more comfortable ride. Bleed the air springs for the best ride quality when riding unladen.


    Benefits of Air Springs
    1. Eliminate squats
    2. Reduce Braking and Poor Steering
    3. Eliminate bumpy rides
    4. Eliminate Poor Headlight Aiming

    We proudly offer the highest quality replacement air springs that exceed OEM requirements.

    Firestone

    Contitech

    Goodyear

    Triange

    W01-358-7995

    FT330-29 547

    3B12-329

    4757

    W01-358-7938

    64573


    4703

    W01-358-7996

    FT330-29 520

    3B12-335

    6334/4520

    W01-358-8006

    FT330-29 430

    3B12-304

    6334/4430

    W01-358-8008

    FT330-29 431

    3B12-300

    6334/4431

    W01-358-8010

    FT330-29 432

    3B12-301

    6334/4432

    W01-358-8016

    FT330-29 433


    6334/4433

    W01-358-8025

    FT330-29 469

    3B12-300

    6334/4469

    W01-358-8027

    FT330-29 466

    3B12-310

    6334/4466

    W01-358-8030FT330-29 4983B12-3046334/4432
    w01-358-7808FD330-22 3642B12-3136319/4336

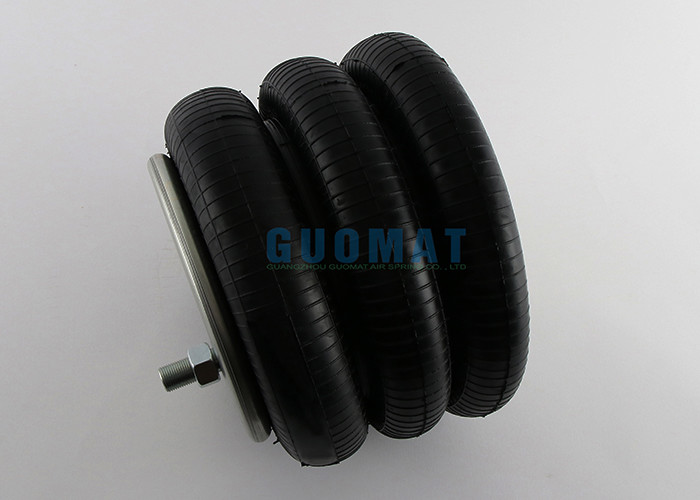

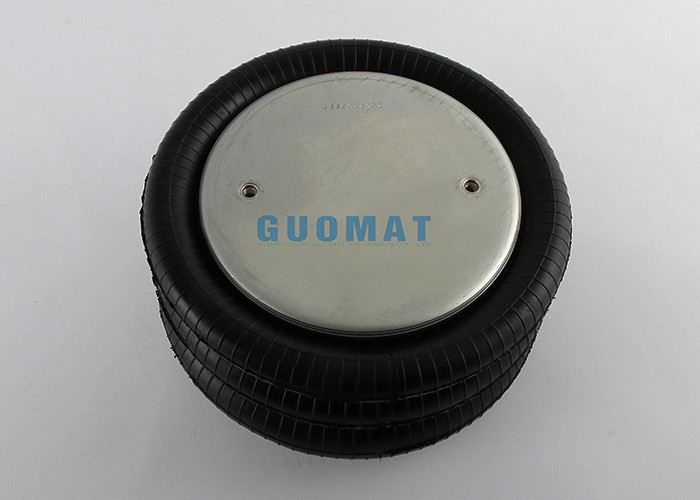

    The Real Pictures
    W01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air SpringW01-358-7994 Firestone Rubber Air Spring 3B12-328 Goodyear Industrial Air Spring
